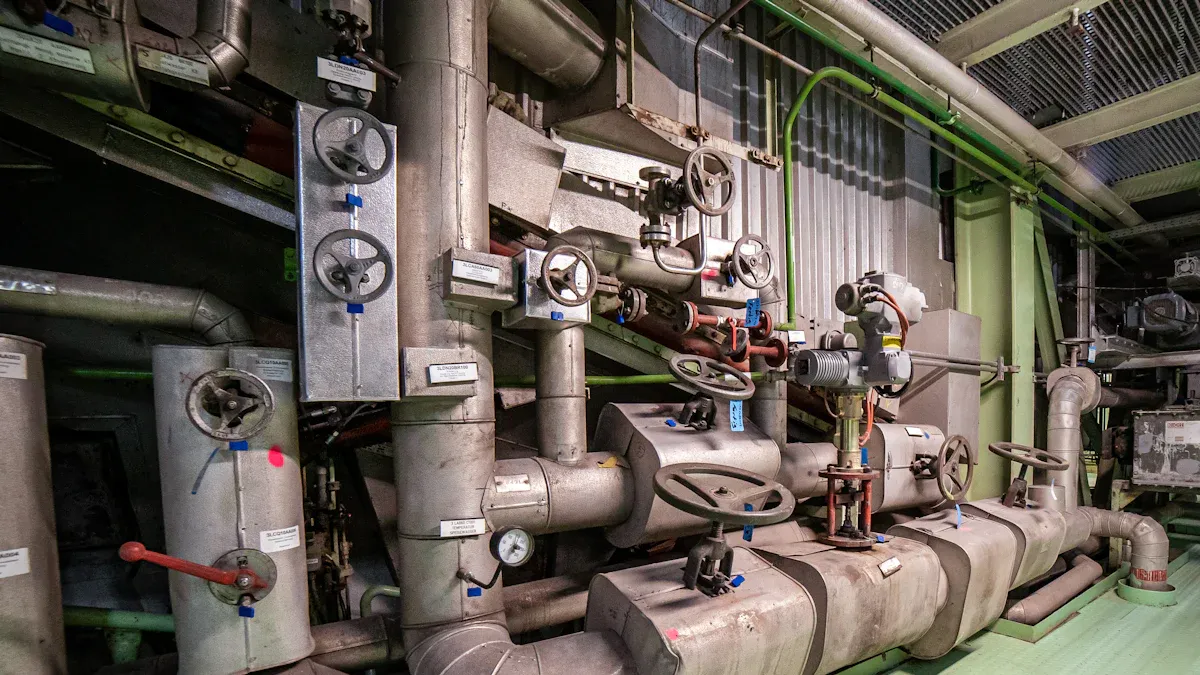

What is the nominal dia of a pipe?

You use the nominal dia of pipe to know the pipe size. It does not show the exact measurement. Nominal diameter gives you a simple number. This number is standard. It helps you choose the right fittings for your project. For example, you can use Jianzhi’s malleable iron pipe fittings. This makes your work safer. It also makes your work easier.

Key Takeaways

Nominal diameter makes pipe sizing easier. It gives a standard number to help you pick the right fittings. You do not need exact measurements.
Using the right nominal diameter is very important for safety. It stops leaks and makes sure pipes and fittings fit well together.
Different places use different systems for nominal diameter. North America uses NPS in inches. Europe uses DN in millimeters. Always check if they match.

Nominal Dia of Pipe

What It Means

You see nominal diameter when you look at pipes. This term helps you know the pipe size. It does not show the exact measurement. Instead, it gives a standard number. Everyone in the industry understands this number.

→ Nominal diameter is a naming system used in engineering. It helps people know the size of parts. It is not the same as the real outer or inner diameter.

Nominal dia of pipe helps you pick the right parts. You can use Jianzhi’s malleable iron pipe fittings. You do not need to measure every pipe. You just need to know the nominal diameter. People wanted an easy way to talk about pipe sizes. Two main systems were made over time:

North America uses NPS (Nominal Pipe Size) in inches.
Europe uses DN (Diametre Nominal) in millimeters.
The nominal diameter system helps make pipe sizes the same everywhere.
It makes it easy to know pipe sizes without exact measurements. These can change because of how pipes are made.

Why It Matters

Picking the right nominal diameter is very important. If you use the wrong size, pipes and fittings may not fit well. This can cause leaks or even break your system. Jianzhi makes its malleable iron pipe fittings to match the nominal diameter. This gives you a safe and strong connection.

→ The pipelines nominal diameter is the fourth most important thing for the year of the incident. The size and wall thickness of the pipe can affect where leaks or breaks happen. Small pipes with thin walls, like those in service lines, can be hurt by outside forces. These forces include digging, earth movement, or natural disasters. Big pipes with high pressure are checked more often.

Nominal diameter affects safety and reliability. In water, gas, or oil pipelines, using the right nominal diameter stops accidents. It keeps your system working well.

How It's Used

You use nominal dia of pipe to match pipes and fittings. If you buy a pipe with a nominal diameter of 2 inches, you look for fittings that say 2 inches too. The real outside diameter might be a little different. The nominal diameter makes things simple.

Here is a table that shows the difference between nominal diameter and actual outside diameter for some pipes:

Nominal Pipe Size (NPS)	Actual Outside Diameter (OD)
NPS 2”	2.375”
NPS 6”	6.625”
NPS 12”	12.75”
NPS 14”	14”
NPS 16”	16”

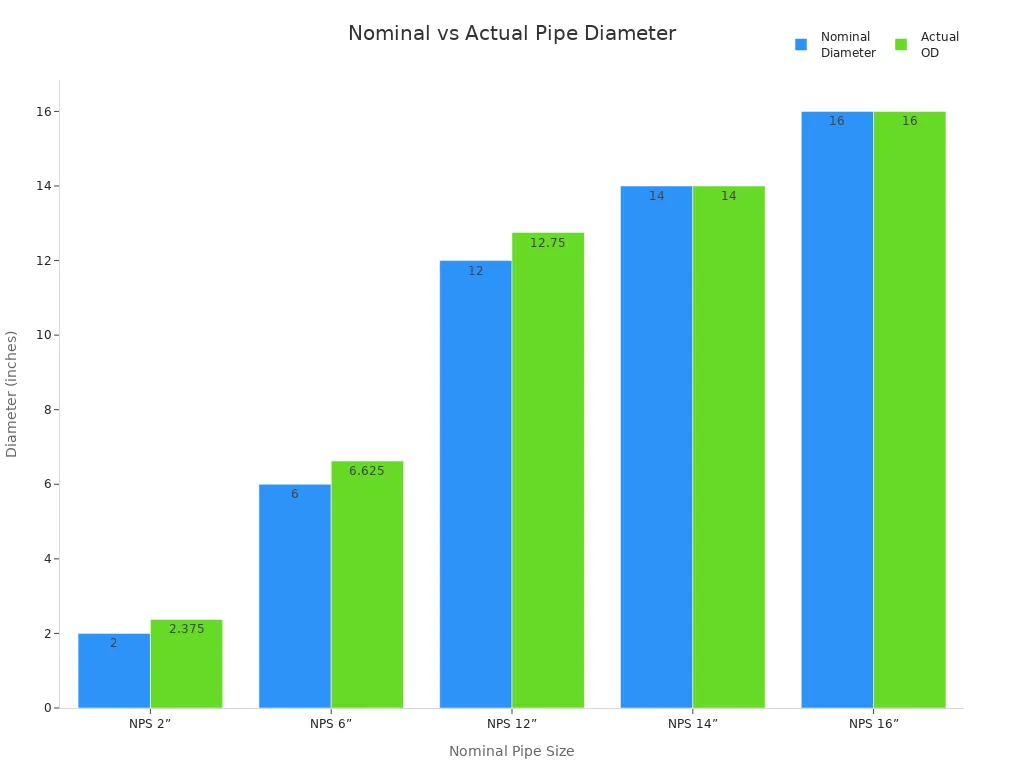

Bar chart comparing nominal and actual pipe diameters for common sizes

Companies like Jianzhi make sure their pipe fittings fit by using international standards for nominal diameter. This means you can trust Jianzhi’s malleable iron pipe fittings to connect with pipes of the same nominal diameter. Using standard sizes helps you get the right flow and strong connections.

Different industries use nominal diameter in their own way. Here is a quick look:

Industry	Interpretation of Nominal Diameter	Focus Area
Oil and Gas	Makes sure pipes work well in high-pressure systems.	Keeping things safe and working in tough places.
Residential Plumbing	Makes installation and fitting easier.	Making sure home systems are easy to set up and work right.

When you work with pipes, always check the nominal diameter. This easy step helps you avoid mistakes. It keeps your system safe and working well.

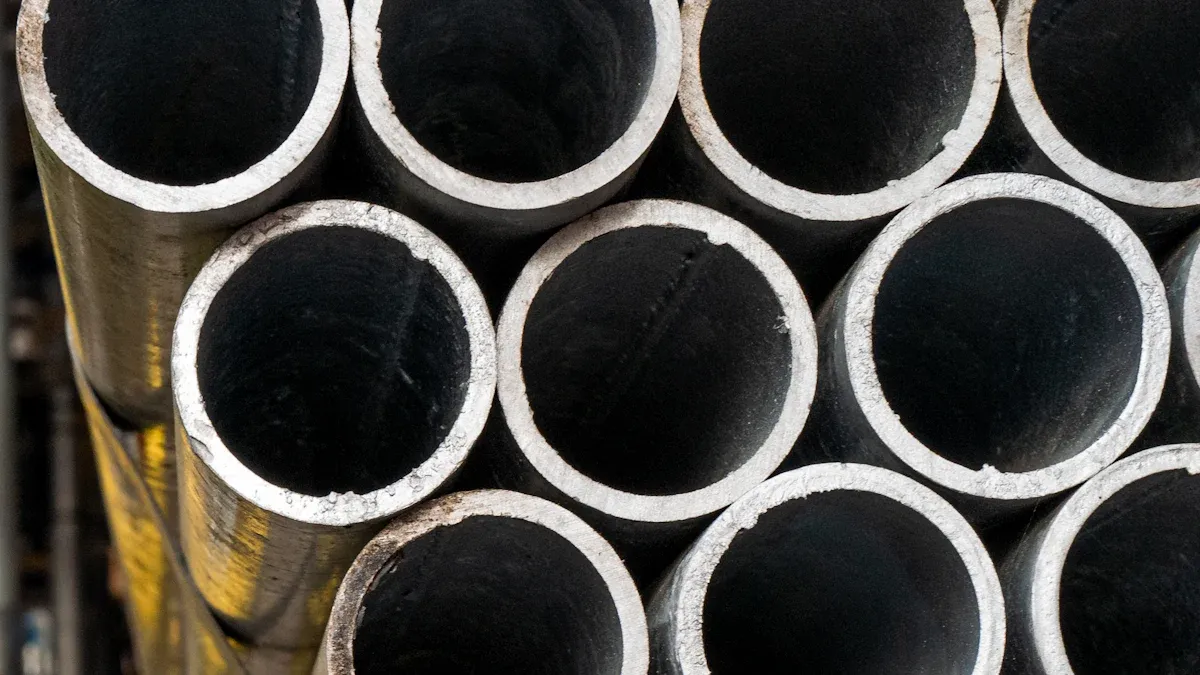

DN and Pipe Measurements

What is DN?

You often see the term dn when you look at pipe sizes in the metric system. DN stands for "Diameter Nominal." It gives you a rough idea of the inside diameter of a pipe, measured in millimeters. This system follows international standards like EN ISO 6708, which many countries in Europe use. When you see dn, you know it helps you match pipes and fittings, even if the actual size is a little different. For example, a pipe marked as dn 50 means it has a nominal diameter of about 50 millimeters.

Here is a table showing how dn values match up with common inch sizes:

Inch Size	DN Value
1/2"	DN15
3/4"	DN20
1-1/4"	DN32
1-1/2"	DN40
2-1/2"	DN65
3-1/2"	DN90

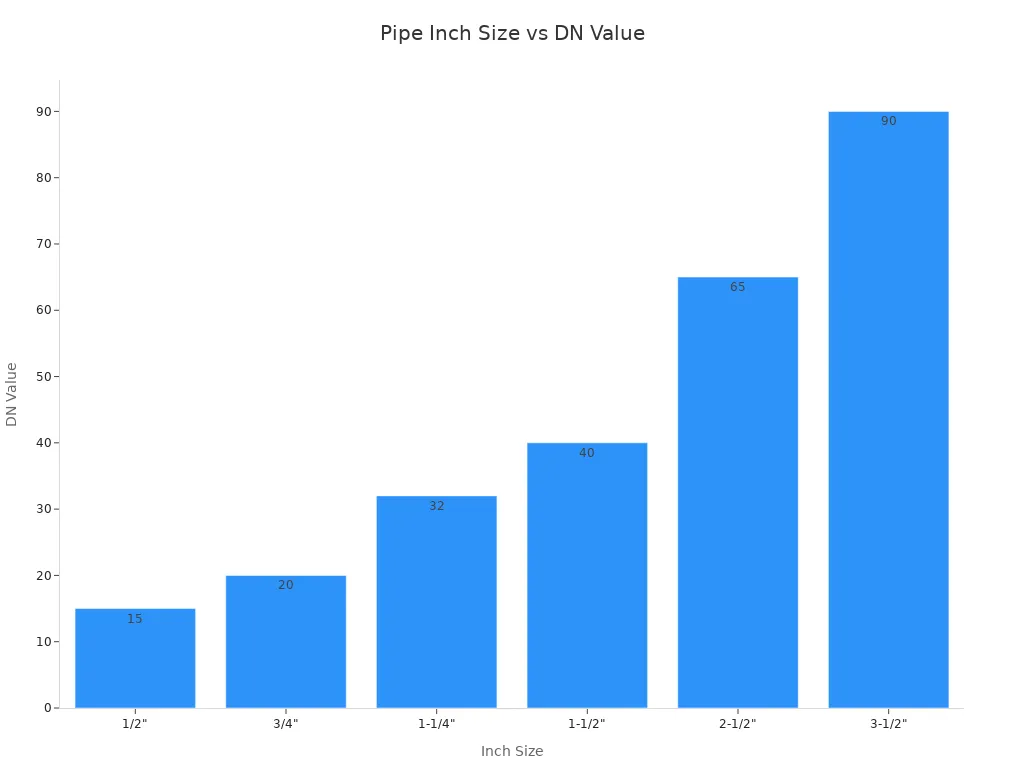

Bar chart showing DN values for different pipe inch sizes

DN vs. Actual Diameter

You might think dn tells you the exact size of a pipe, but it does not. DN is a reference size, not a direct measurement. It is usually close to the inner diameter, but the real size can change based on wall thickness and how the pipe is made. The outer diameter stays the same for a given dn, but the inner diameter can change with different pipe schedules.

dn acts as a guide, not a measurement.
dn is often near the inner diameter.
Actual inner and outer diameters depend on wall thickness and standards.
Outer diameter stays the same for each dn, but inner diameter changes.

Here is a table comparing dn and actual sizes for water supply pipes:

NPS Size	DN Size
NPS 1	DN 25
NPS 2	DN 50
NPS 4	DN 100

Jianzhi’s malleable iron pipe fittings follow these international standards. You can trust that their products will fit pipes marked with the same dn, no matter where you are in the world.

Metric and Imperial Systems

You will see two main systems for pipe sizes: metric and imperial. The metric system uses dn and measures in millimeters. The imperial system uses inches and terms like NPS (Nominal Pipe Size). Here is a table to help you see the differences:

Metric System	Imperial System
Measured in millimeters (mm)	Measured in inches and fractions
References outer diameter (OD)	References nominal bore (NB) or NPS
Fittings match the designated diameter (e.g., 25mm)	Fittings are based on nominal bore, not always the inner diameter

When you work with pipes from different countries, you may need adapters or special fittings. Jianzhi’s products meet FM, UL, TUV, CE, and SGS standards. This means you can use them in many places and trust they will fit and work safely.

You should know the main differences between nominal dia of pipe, DN, and real measurements. The table below shows how each system is used:

Aspect	NPS (Nominal Pipe Size)	DN (Diamètre Nominal)
Unit of Measurement	Inches	Millimeters
Usage	North America	Europe, Asia, and other metric-using regions
Relation to Actual Size	Nominal size loosely related to ID for NPS 1/8 to 12, equal to OD for NPS 14 and above	Nominal size in mm, providing an approximate size designation

Knowing these words helps you choose the right pipe fittings, like Jianzhi’s malleable iron pipe fittings. If you match the nominal diameter with the right fitting, you stop leaks and parts lining up wrong.

Always check the nominal dia of pipe, schedule, and DN before you buy.
Check for product certifications to make sure things are safe and good quality.

→ Certifications like ISO 9001 and ASME mean pipe fittings follow strict rules. You can trust products with these marks to work well.

FAQ

What does "nominal diameter" mean for pipe fittings?

Nominal diameter is a standard size for pipes. It helps you match pipes and fittings. It does not show the real measurement.

Can you use Jianzhi malleable iron pipe fittings with any pipe?

You need to match the nominal diameter of your pipe and fitting. Jianzhi fittings use international standards. They fit most pipes with the same size.

Why do actual pipe diameters differ from nominal diameters?

Manufacturers use nominal diameter as a guide. The real diameter can change. This happens because of wall thickness or how pipes are made.

Read Less
