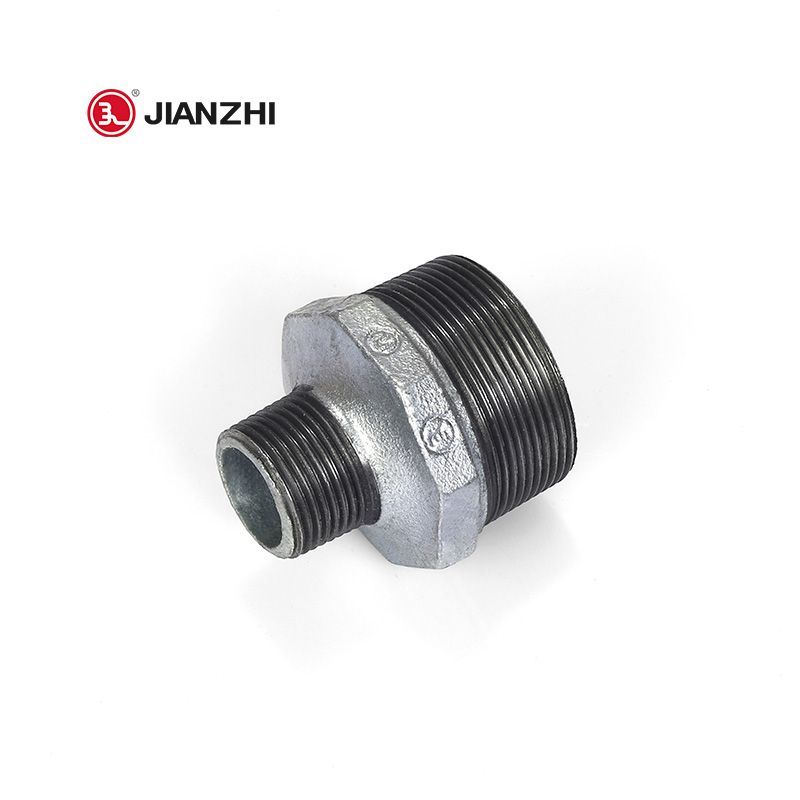

Threaded Nipple Reducer Fig.245

Threaded Nipple Reducer Fig.245

Size: 1/4''-3''(DN8-DN80)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

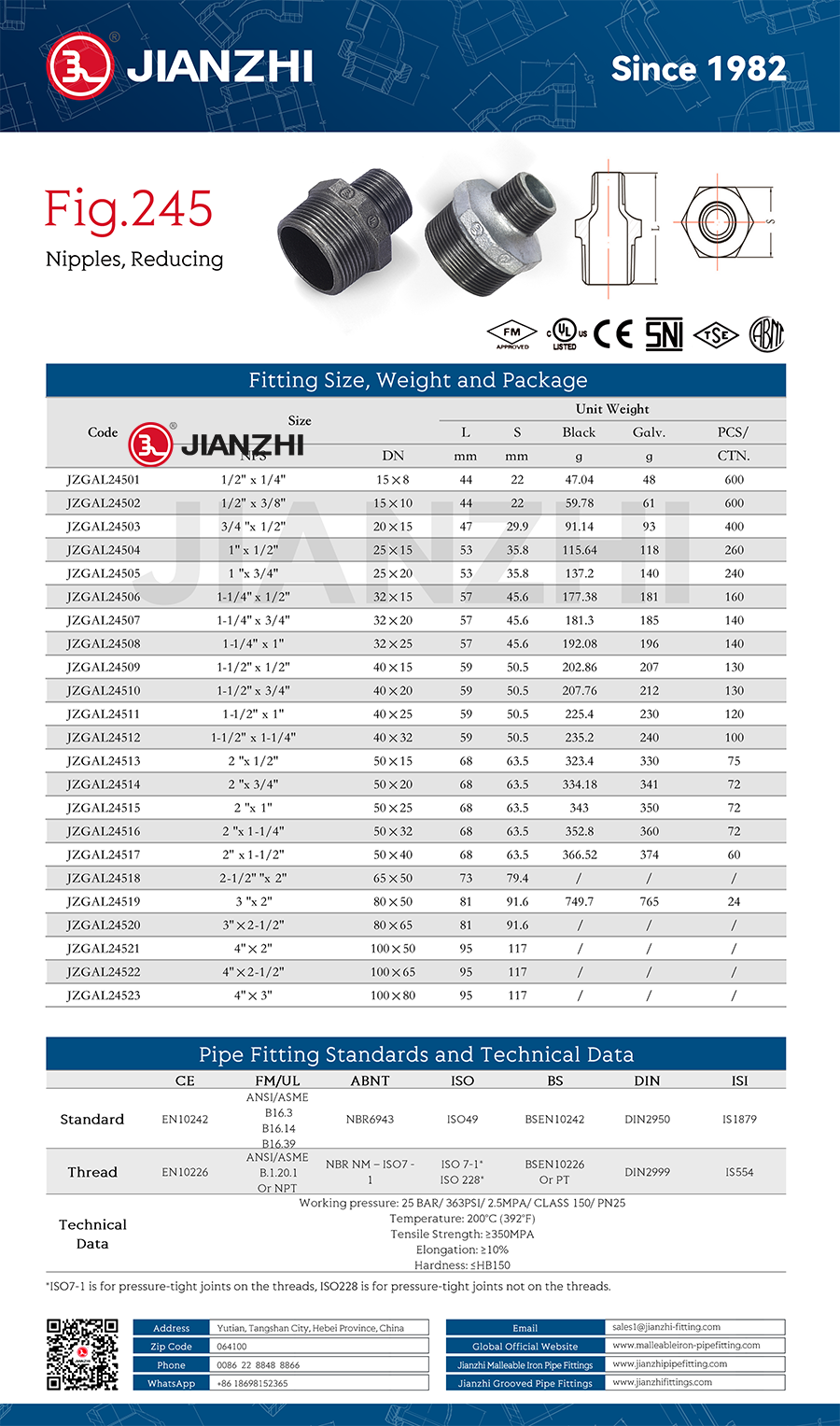

Product Dimensions

Threaded Nipple Reducer Fig.245

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Do you know?

BSPT(BS EN 10226) aks the Axes Angle lower ±0.5°, Jianzhi standard is lower ±0.3°

Cast iron and steel fittings are ideal connecting materials that provide a strong and reliable metal connection, cast iron and steel fittings are highly resistant to aggressive water and gas environments. Cast iron fittings are made by casting in various forms such as couplings and transitional couplings, locknuts, crosses, elbows, tees, butts, American women, nipples, etc. The purpose of steel and cast iron fittings are different, they can be used both in outdoor conditions and in rooms with different humidity and temperature indicators. Galvanized steel and cast iron connecting elements (Fittings) undergo chemical treatment by galvanizing, which provides products from cast iron and steel (fittings) protection from various mechanical damages. In addition, zinc, applied by hot or galvanized galvanizing, is almost 100% protected from metal oxidation (rust).
