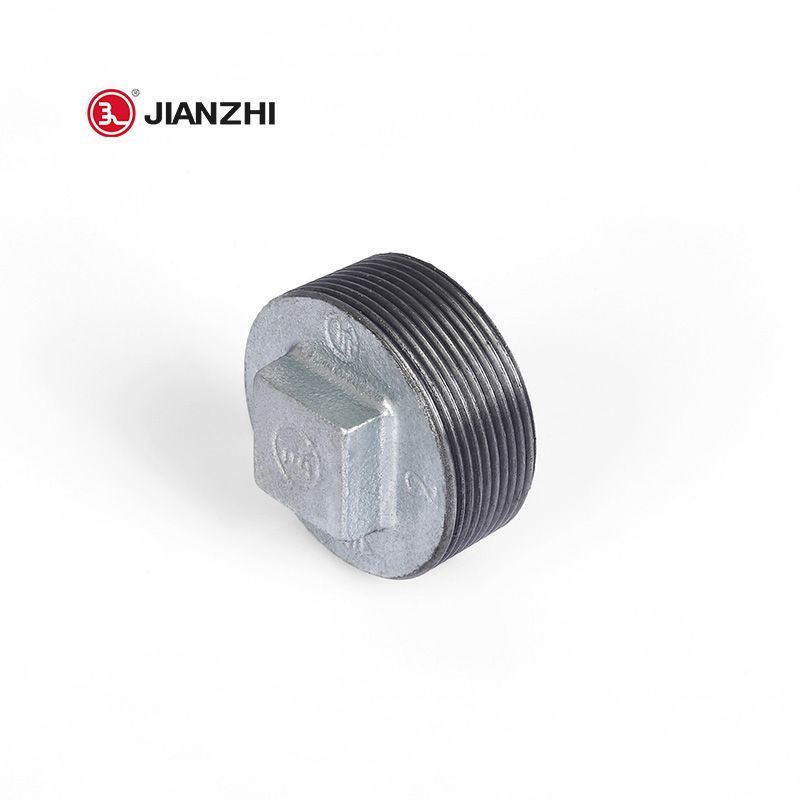

Galvanized Plug Plain Fig.291

Galvanized Plug Plain Fig.291

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

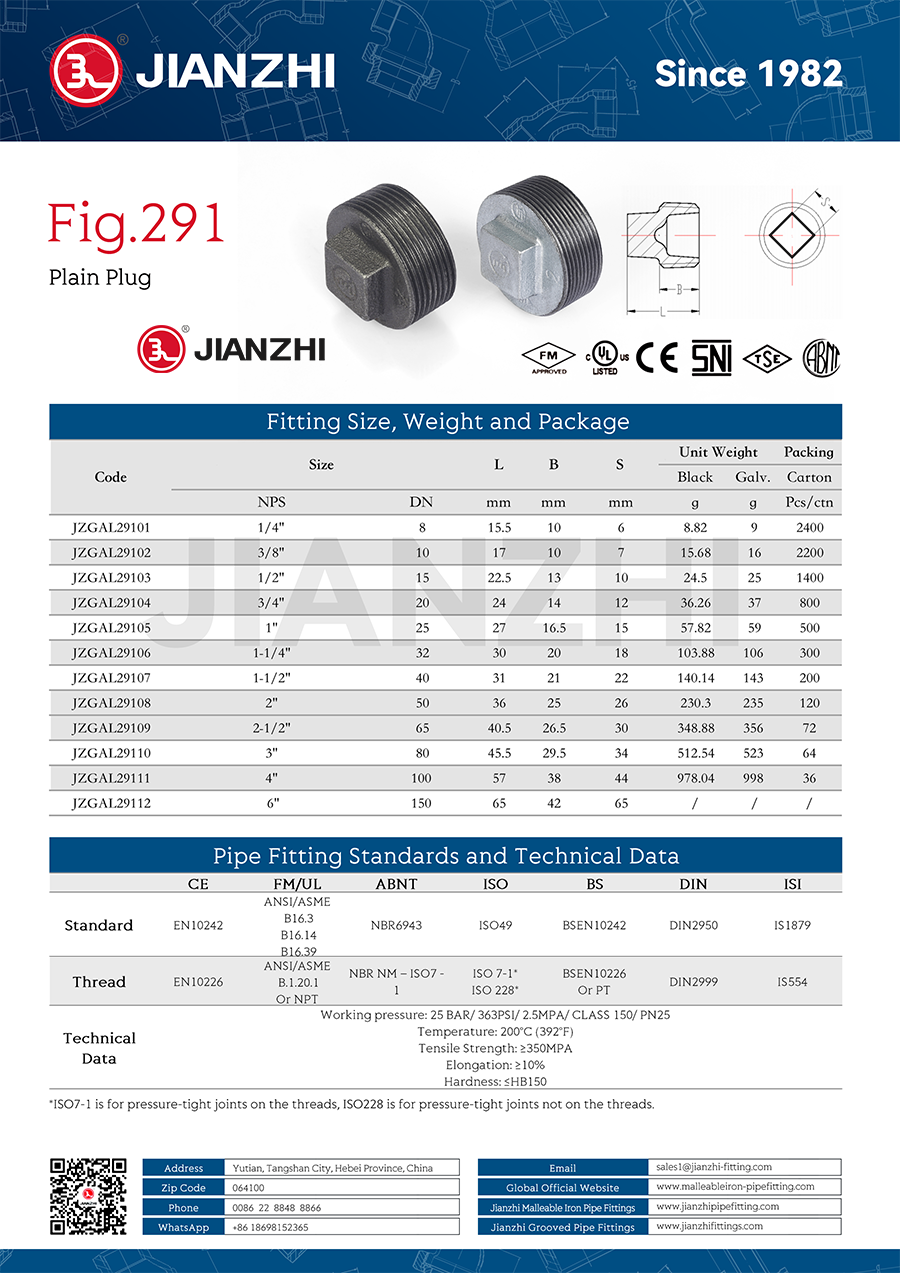

Product Dimensions

Galvanized Plug Plain Fig.291

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


JIANZHI adopts material that standards are rather higher than EU standards o ensure the products can be used in a wider and more severe environment, that's the reason why Jianzhi has higher quality than other brands.

Threaded fittings made of black cast iron JIANZHI are generally used when connecting pipe sections, to change the direction of transported substances in a private or cottage construction system, and in centralized pipeline systems. Threaded cast iron fittings can have both internal and external threads, which makes it possible to change from different diameters and to connect pipelines from different materials.
