Cast Iron Fittings 90 Degree Elbow Fig.92

Cast Iron Fittings 90 Degree Elbow Fig.92

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

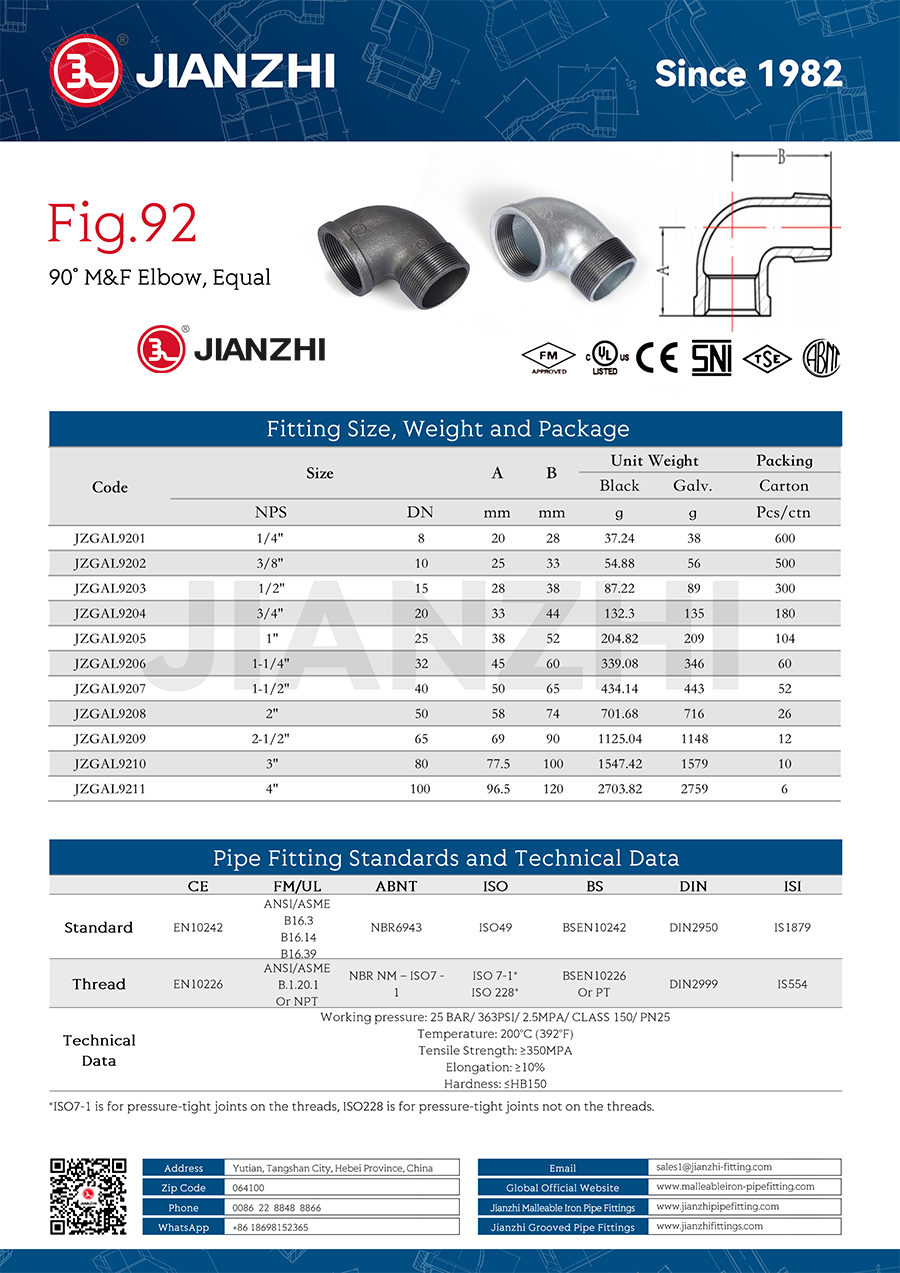

Product Dimensions

Cast Iron Fittings 90 Degree Elbow Fig.92


Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Jianzhi Casting group is one of the manufacturers with the most varieties and specifications of steel pipe parts in China. Our products are mainly used in water systems, petrochemical systems, gas systems, and water heating systems. Our plastic-lined pipe fittings can be used in the drinking water system.

At present, according to the product design standards, our Malleable iron pipe fittings are divided into three series: Heavy-duty banded, Medium duty banded and Light duty beaded. According to the different appearance treatment processes, they can be divided into three series: Black, hot-dipped galvanizing, and electro galvanizing. Therefore, for the same kind of products, we can provide customers with 9 different choices.

Heavy duty banded, Medium duty banded, their working strength standard fully meets the national standard, but in order to save cost, it is smaller in size and thinner in wall thickness. In the production process, it is very difficult to make the product thinner under the condition of ensuring the use standard. It is easy to appear through-hole phenomenon, and its strength and plasticity are difficult to guarantee. Jianzhi has achieved this requirement with its first technical strength in the industry. Under the premise of ensuring the use standard, the company successfully reduces the product cost and provides customers with more competitive price options.

Tensile strength refers to the maximum stress that a material can withstand before it breaks. It is one of the main mechanical indicators of metal materials.JIANZHI adopts KTH330-08 blackheart malleable iron as material and ensures tensile strength is no less than 330Mpa, elongation is no less than 8%. Excellent materials are the foundation of high-quality products,chooseJIANZHI, choose high quality.
