Galvanized Pipe Fittings

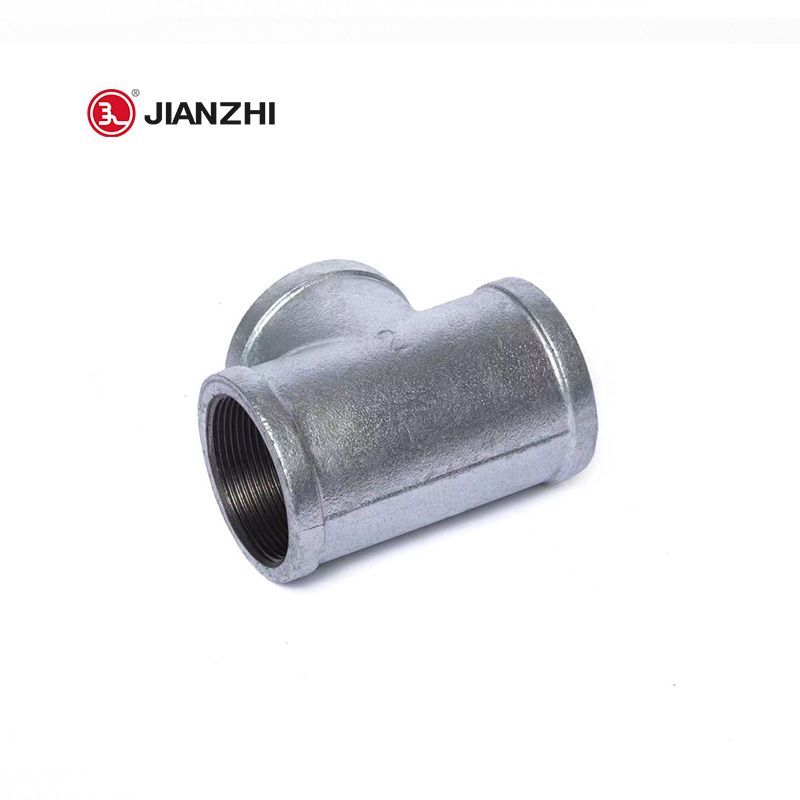

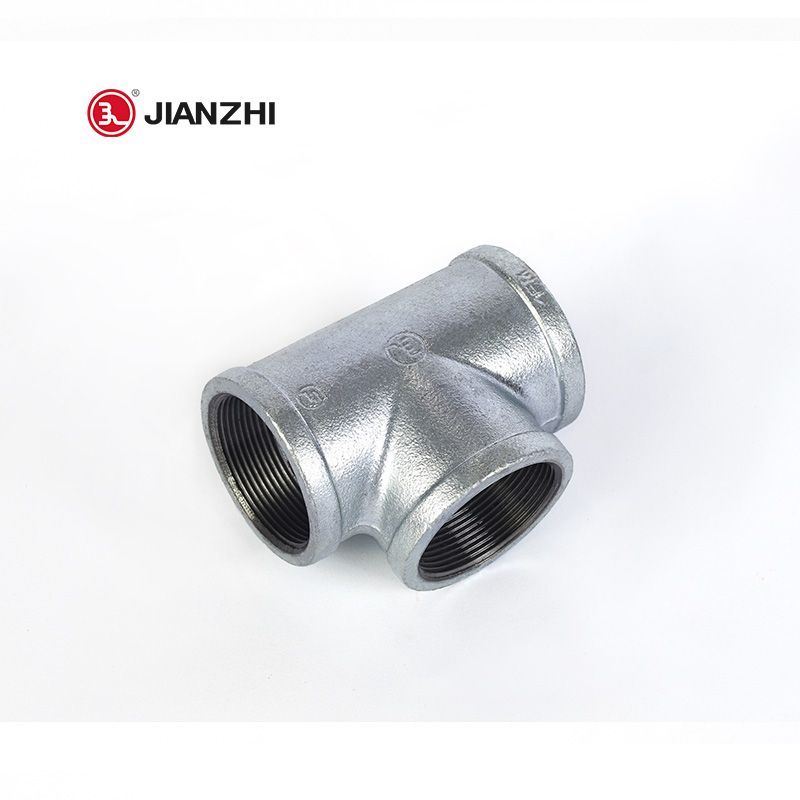

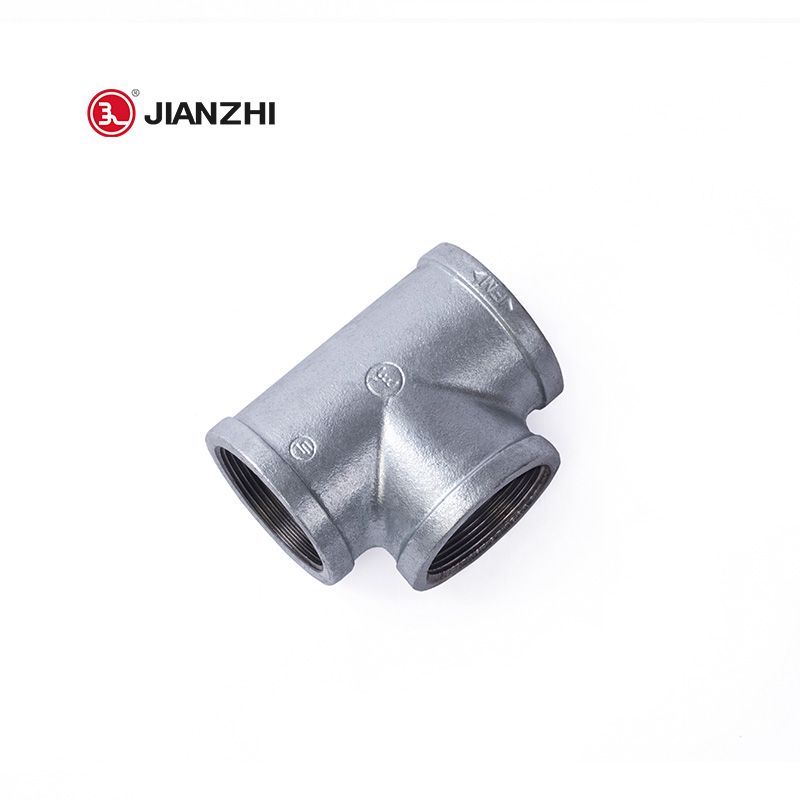

FIG.130 Tee Equal

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

FIG.130 Tee Equal

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The tee is the pipe fitting that connects the main pipeline and the branch pipeline. It is divided into many types according to different manufacturing materials and uses.


Tee Pipe Fitting

A pipe tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings. They are made of various materials and available in various sizes and finishes. Pipe tees are extensively used in pipeline networks to transport two-phase fluid mixtures. Tees are generally used to combine or split a fluid flow.


It can be divided into "Equal tee pipe fitting" and "Reducing tee pipe fitting" according to different specifications.

Equal tee pipe fitting means that the diameter of the branch pipe is the same as that of the main pipe.

Reducing tee pipe fitting means that the diameter of the branch pipe is smaller than that of the main pipe, so it is also called unequal diameter tee, and the quantity of the reducing three is more.


The tee is divided into socket weld tee, threaded tee, butt weld tee, and flange tee according to the end connection form.

JIANZHI GRUOP produces threaded tees The branched end connects the threads to either male or female threads. So there is a male and female tee, if the pipe is NPT male then the tee should be NPT female.

The threaded tees range in size from 1/8", 1/4, 3/8", 1/2", 3/4", 1" and up to 6" (from DN6 to DN150).


Manufacturing of Tee Pipe Fitting

The manufacturing materials and specifications of malleable iron tee pipe fitting are the same as malleable iron elbows. They are mainly used for indoor heating, water supply, and gas pipelines.  The surface treatment methods are hot-dip galvanized, electro-galvanized, or original black. Among them, the hot-dip galvanized pipe fittings are much better, excellent anti-rust ability, longer service life.


Tee Pipe Fitting Feature

Three female openings

straight pipe tees have the same size openings

Reducing pipe tees have one opening of different size and two openings of the same size

prevent obstruction of waste


Difference between equal tee and reducing tee

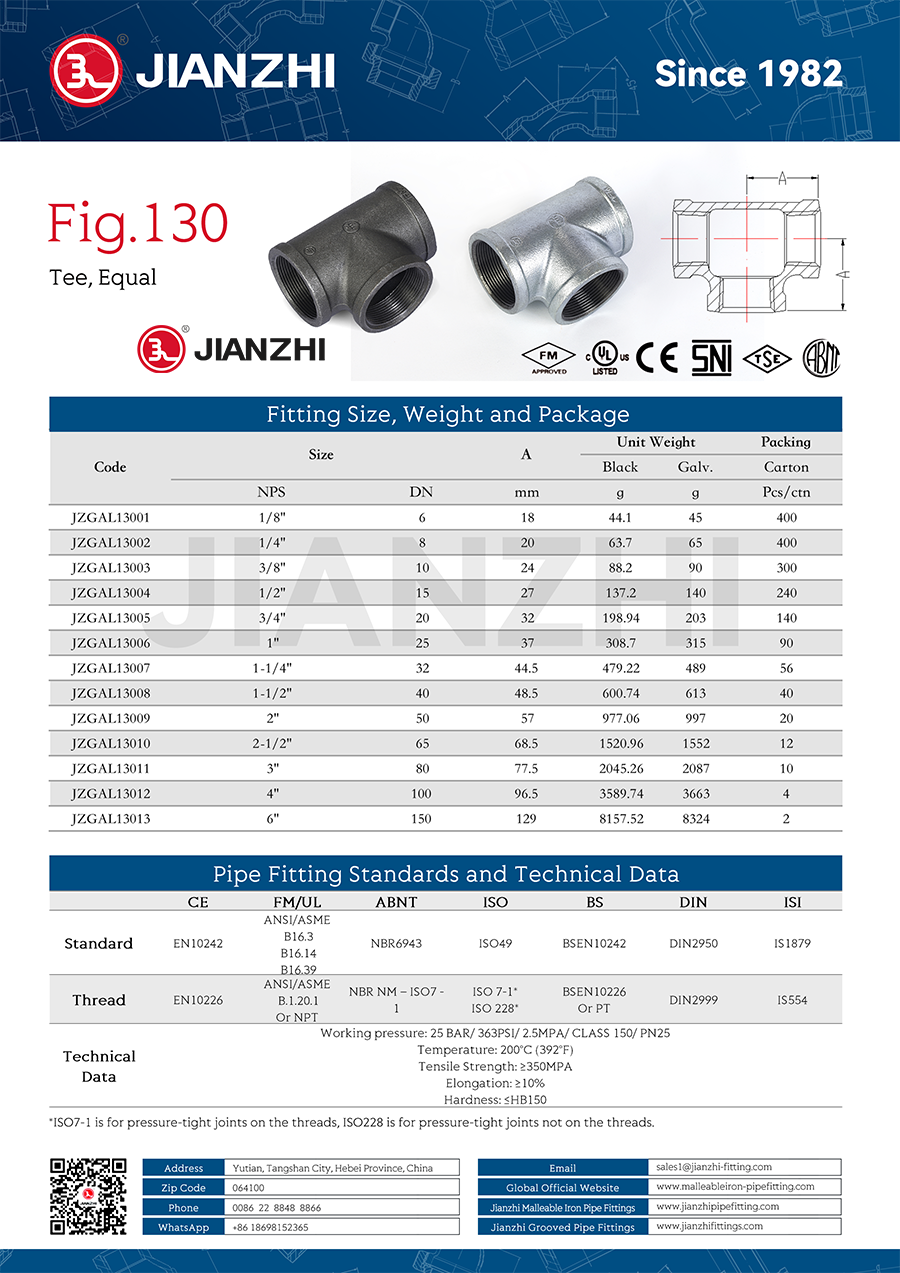

Product Dimensions

FIG.130 Tee Equal
