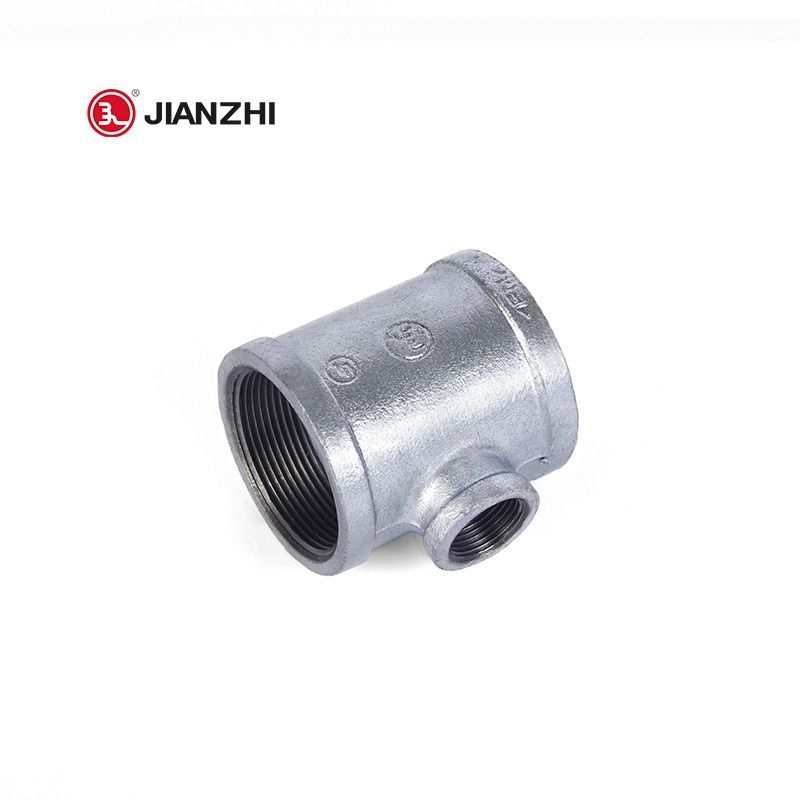

Pipe Fittings Tee Reducer Fig.130R

Pipe Fittings Tee Reducer Fig.130R

Size: 3/4x1/2(DN15x20-DN100x80)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

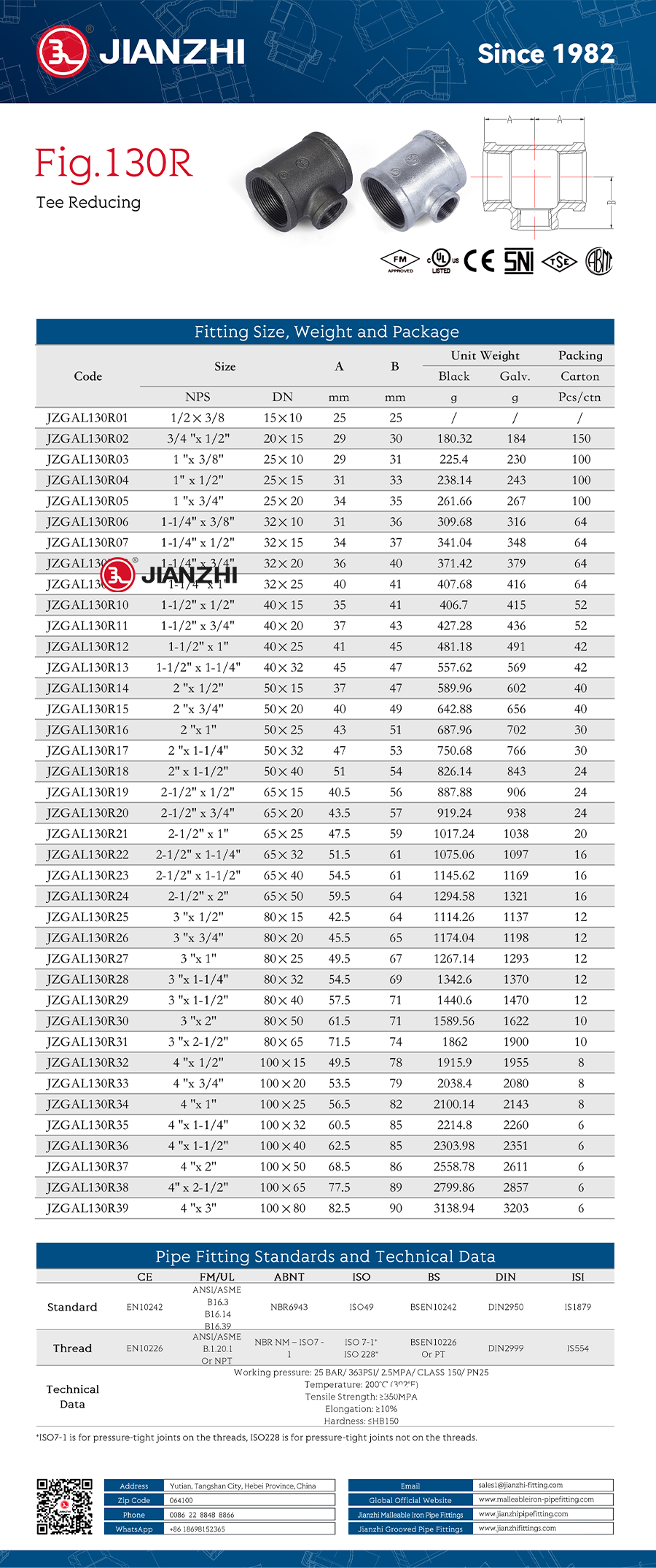

Product Dimensions

Pipe Fittings Tee Reducer Fig.130R

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The reducing tee is used to change the size of the fluid branch. Reducing fittings can change the size of the shunt, Malleable iron pipe Fittings Tee Reducing, using malleable cast iron material, main outlet size, and branch outlet size is different, hot dip galvanized surface treatment method.
