Pipe End Caps Round Fig.301

Pipe End Caps Round Fig.301

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

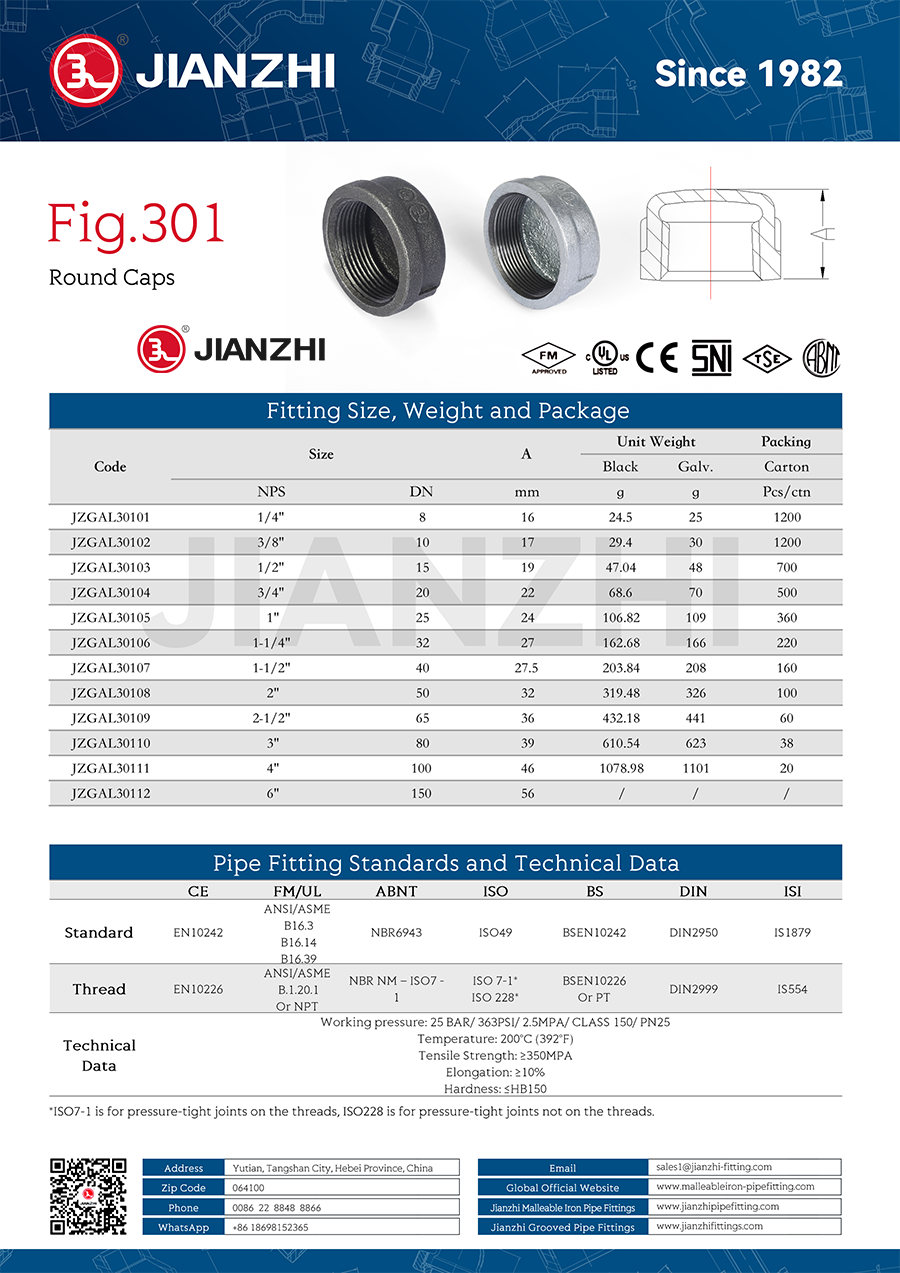

Product Dimensions

Pipe End Caps Round Fig.301

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The pipe cap is a pipe fitting welded on the pipe end or installed on the external thread of the pipe end to cover the pipe. It is used to close the pipeline and has the same function as the pipe plug.

Pipe caps are not very common in industrial buildings, because pipe caps are only used at the end of the pipe to close the pipe.

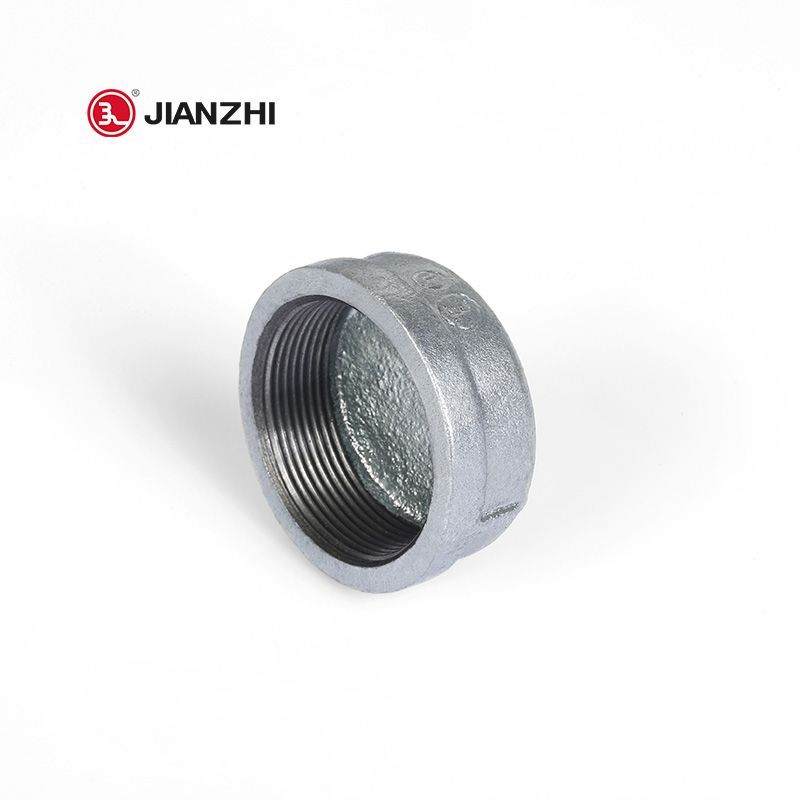

This 301 galvanized round cap is made of malleable iron, Malleable cast iron has good plasticity and tensile strength, and its price is economical, and with galvanized surface treatment, it has good Rust and corrosion resistance, can be widely used in water or liquid conveyor system. The size range is fully covered from 3/8'' to 4''.

Round caps are more popular than octagonal caps in industrial fields.
