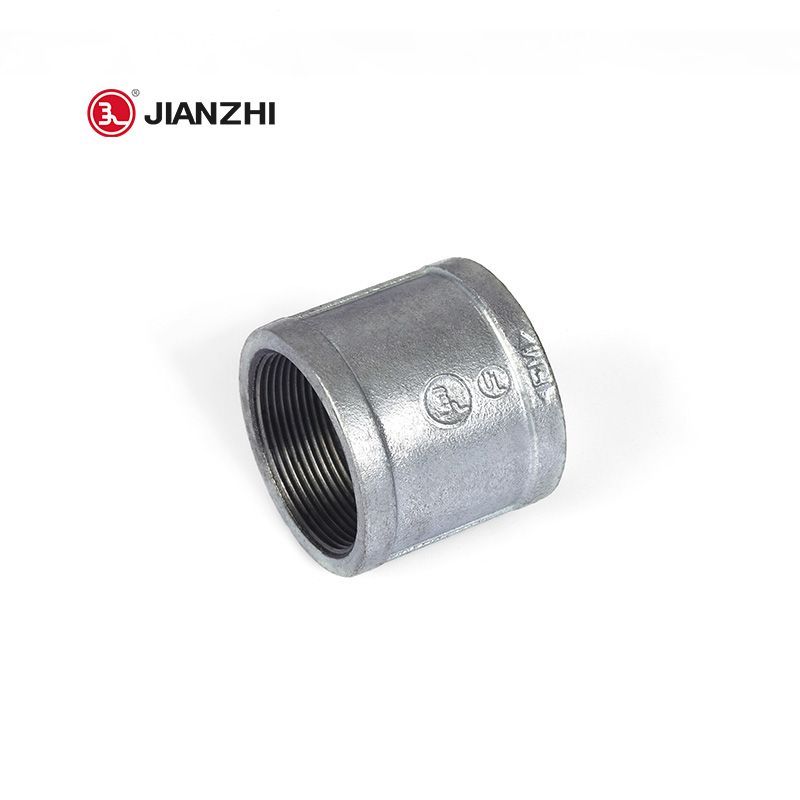

NPT Fitting Socket Entire Threaded Fig.270

NPT Fitting Socket Entire Threaded Fig.270

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

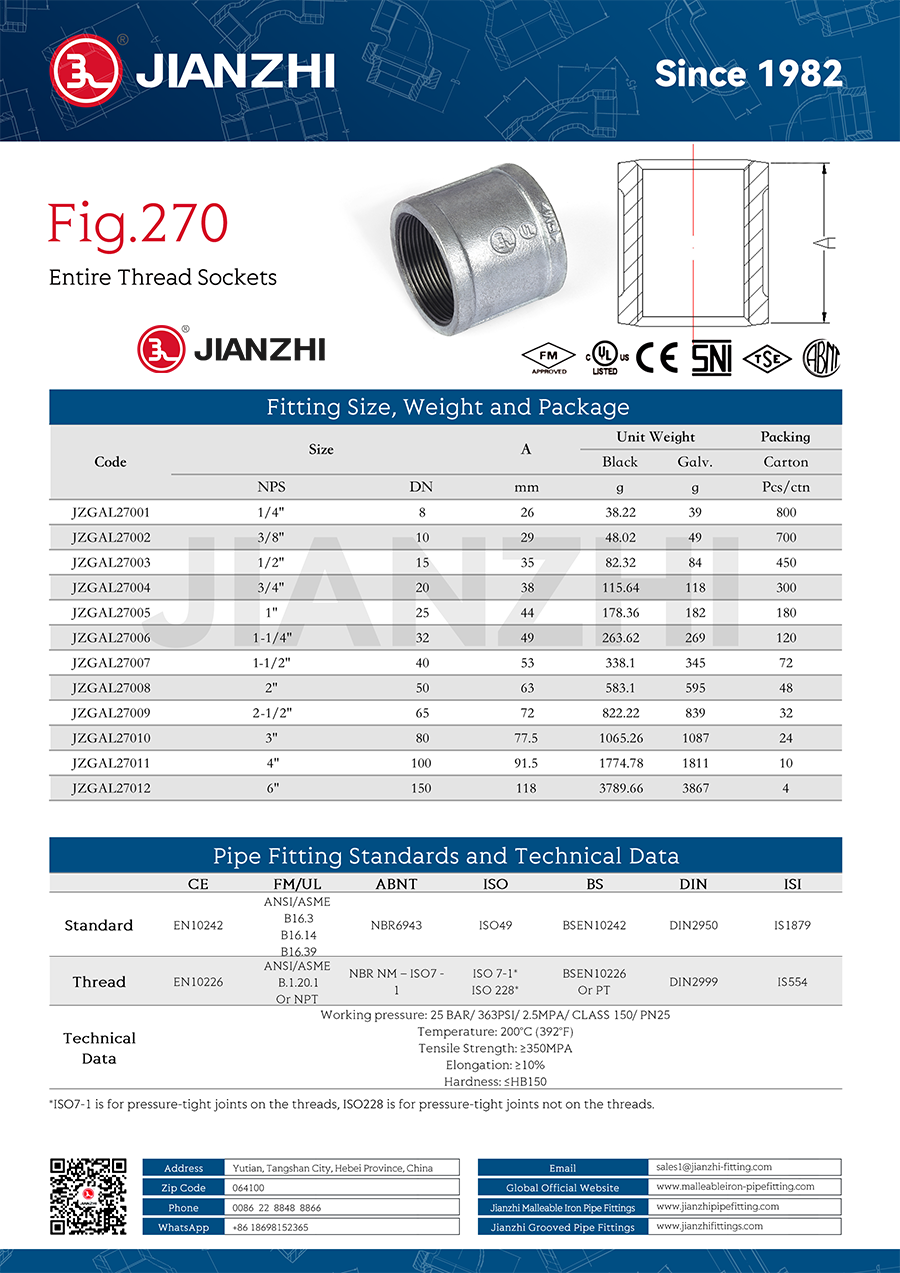

Product Dimensions

NPT Fitting Socket Entire Threaded Fig.270

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Malleable Iron Pipe Fittings are usually used to pipe joint solutions. The galvanized malleable fittings have good ductility. They are most common among malleable fittings and are available in many different types and sizes. The socket is one of them, the size from 1/4'' to 6''. For JIANZHI malleable iron socket, 100% test before packing. Strict airtightness requirements make it widely used in water and gas pipelines. To ensure the safety of the building and people.
