Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

elbow pipe fitting description

Used to change the angle or direction of the pipe run. Most commonly in 90 degrees and 45 degree turns. The sweep of the fitting describes how fast a transition or change in direction is made

Standard elbows are available in several different angles - 45°, 90°

How Many Types of Pipe Elbow

90 Degree elbow

90 Degree elbow is installed between the pipe to change the direction of the pipe by 90 Degree. Available in long and short radius form.

The 90° elbow is also called a “90° ell” (pronounced like the letter “l”) or sometimes a “quarter bend” because the right angle at which flow is redirected is one-quarter of 360°.

The 90° elbow is used in spaces that require a major turn. although this may be a necessity, the flow rate and pressure within the pipe is affected. just as with any piping system, the material under pressure hits The elbow and would like to continue in the same direction. when it meets the resistance of the elbow wall, it is forced to change direction (deflected) at a cost to the pressure.

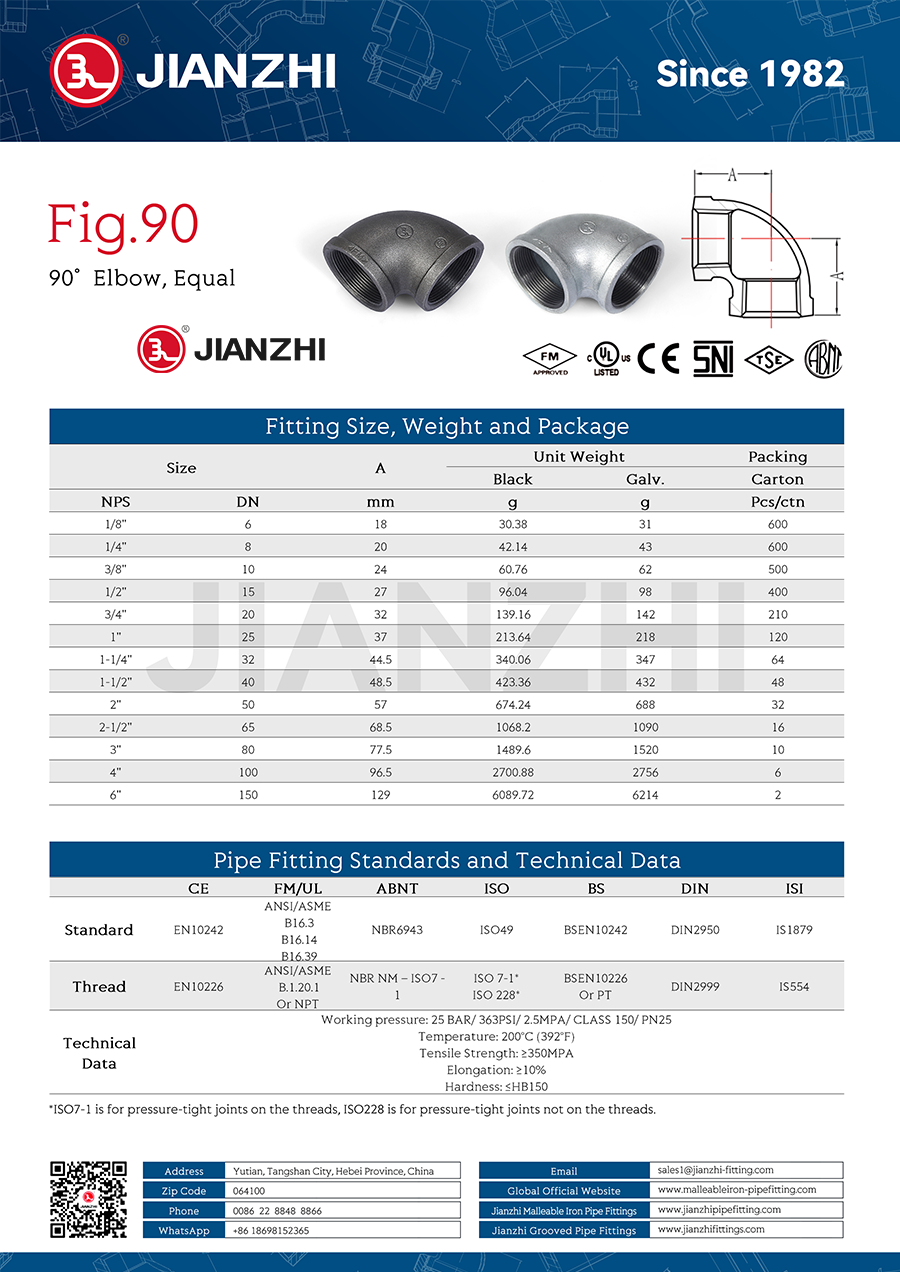

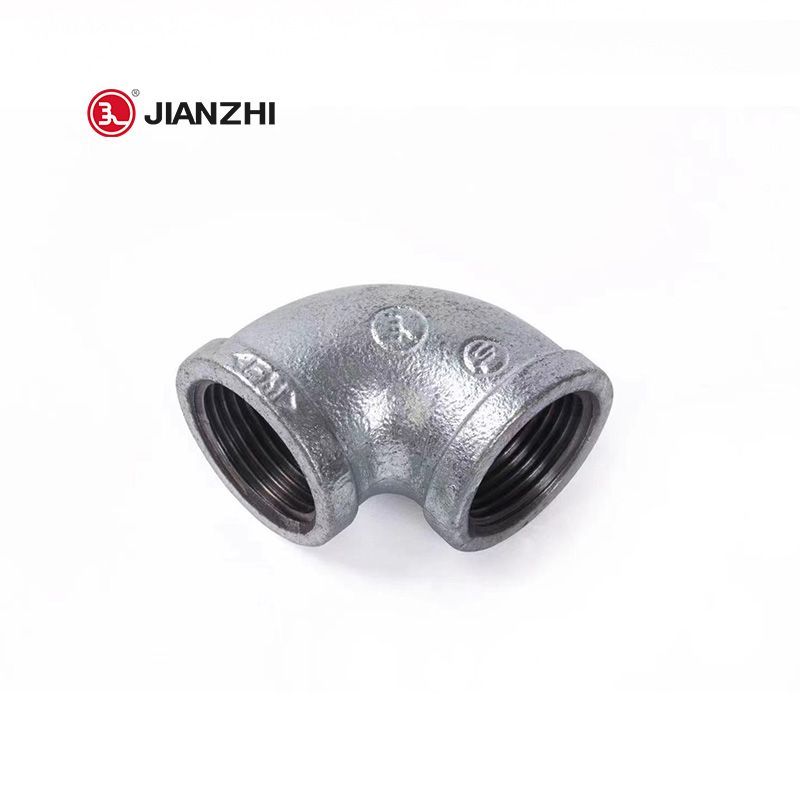

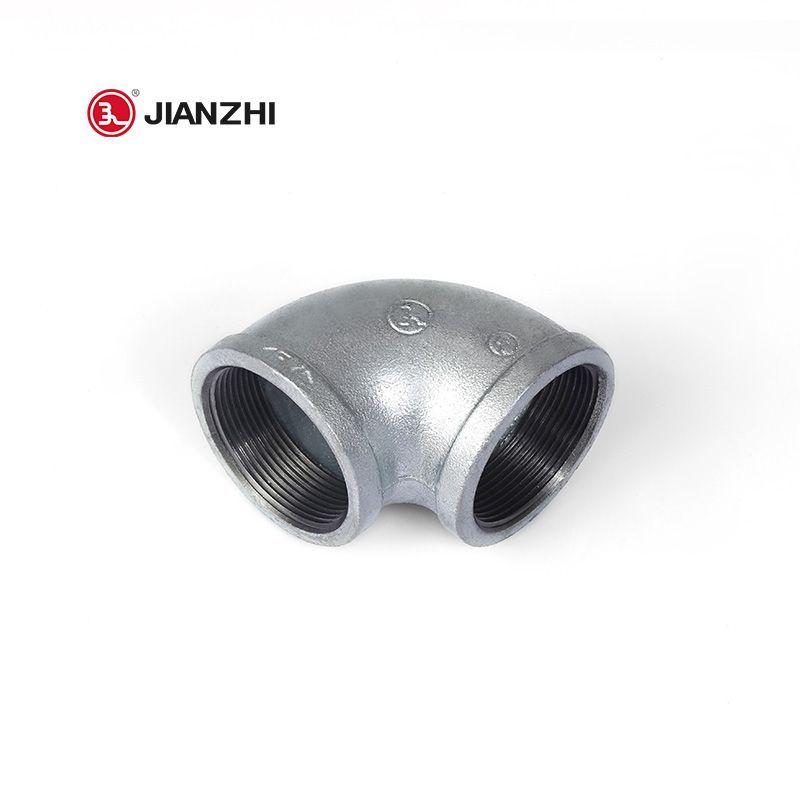

Elbow 90° Equal Male Or Female JIANZHI Galvanized Malleable Iron Pipe Fitting.

Elbow is mainly used to connect two equal diameter pipes perpendicular to each other at the right angle bend of the pipe, and the different diameter elbow is connected with two different diameters perpendicular to each other so that the vertical pipes can be effectively and reasonably linked together.

Application: Water Disposal, Electric Power, Ship Building, Nuclear Energy, Garbage Disposal, Natural Gas, Petroleum Oil.

Surface: Galvanized

Inner: Lining Plastic Pipe Fittings
