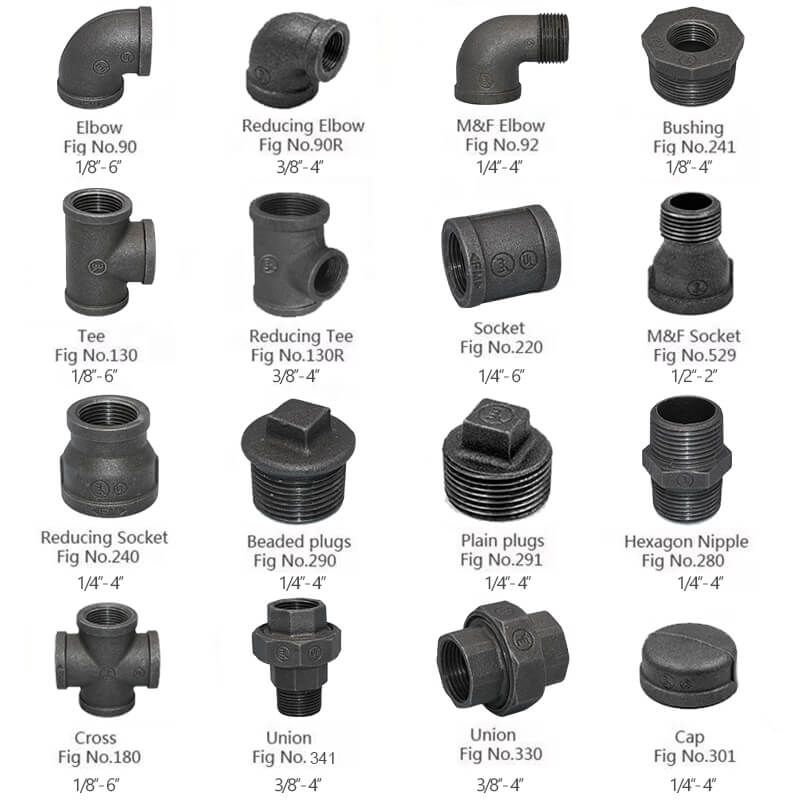

Black Pipe Fittings

45 Degree Black Iron Elbow Fitting Fig. 120

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

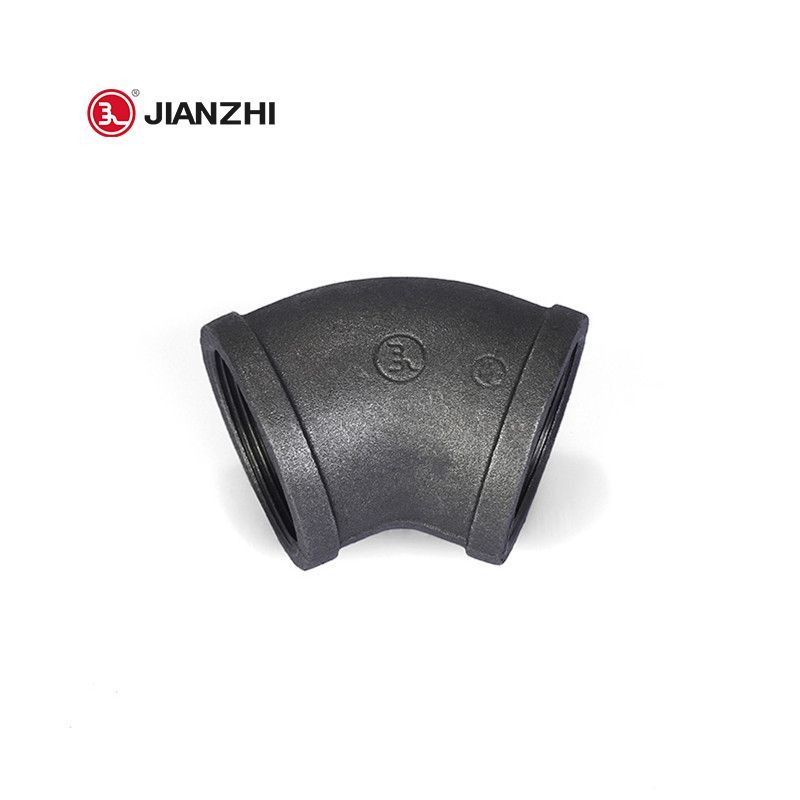

45 Degree Black Iron Elbow Fitting Fig. 120

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150Technical Data

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


In elbow piping system, the elbow is a pipe fitting that changes the direction of the pipeline. According to the angle, there are three most commonly used ones: 45° and 90°180°. In addition, according to engineering needs, it also includes other abnormal angle elbows such as 60°. The elbow materials are cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals, and plastics. The ways to connect with the pipe are direct welding (the most common way) flange connection, hot melt connection, electrofusion connection, threaded connection, and socket connection, etc. According to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, etc.

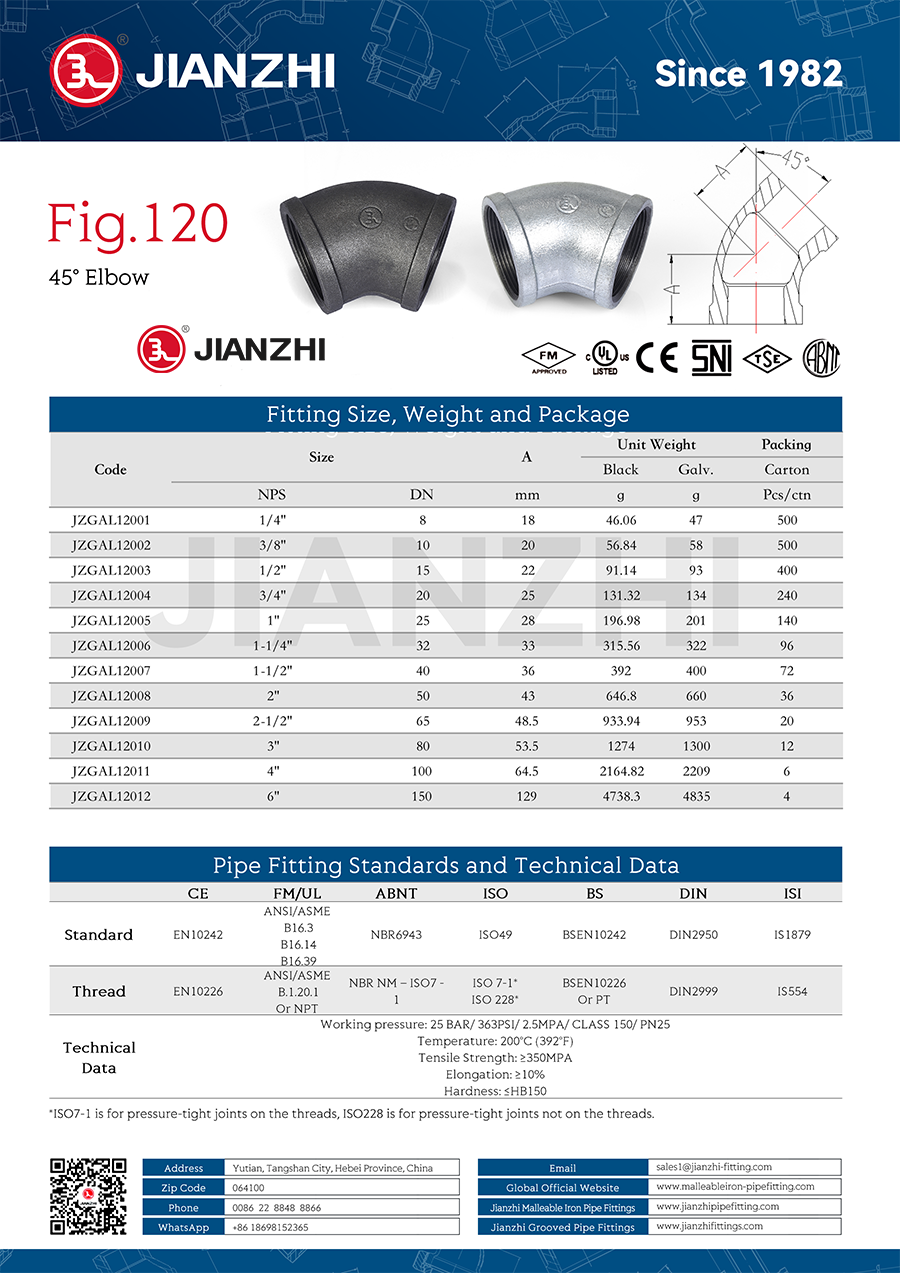

Product Dimensions


45 Degree Black Iron Elbow Fitting Fig. 120
