Galvanized Pipe Fittings

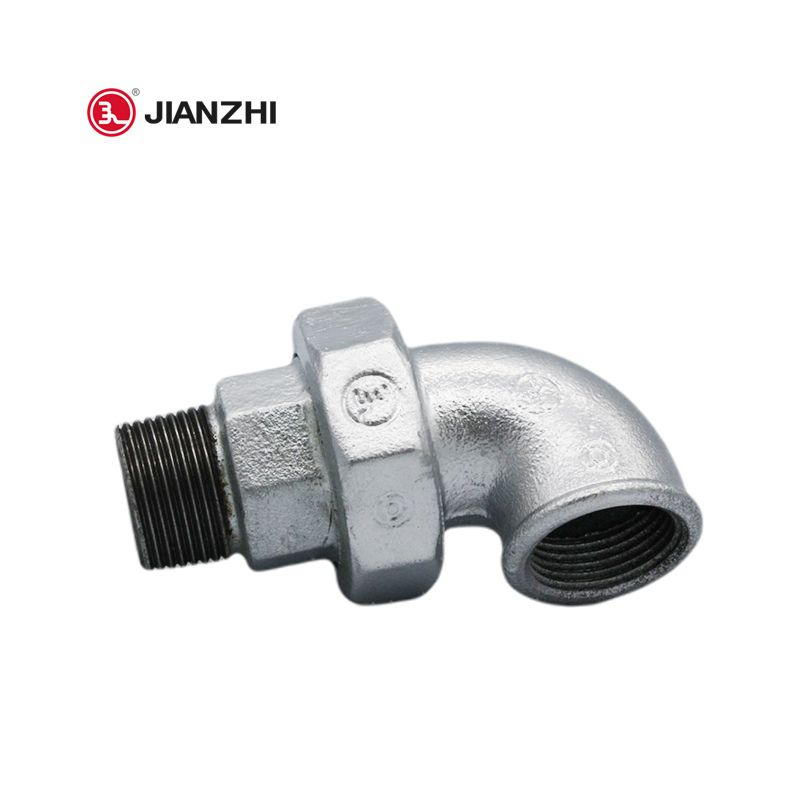

NPT Female Union Elbows Flat Seat Fig.97

Size: 1/2''-2''(DN15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

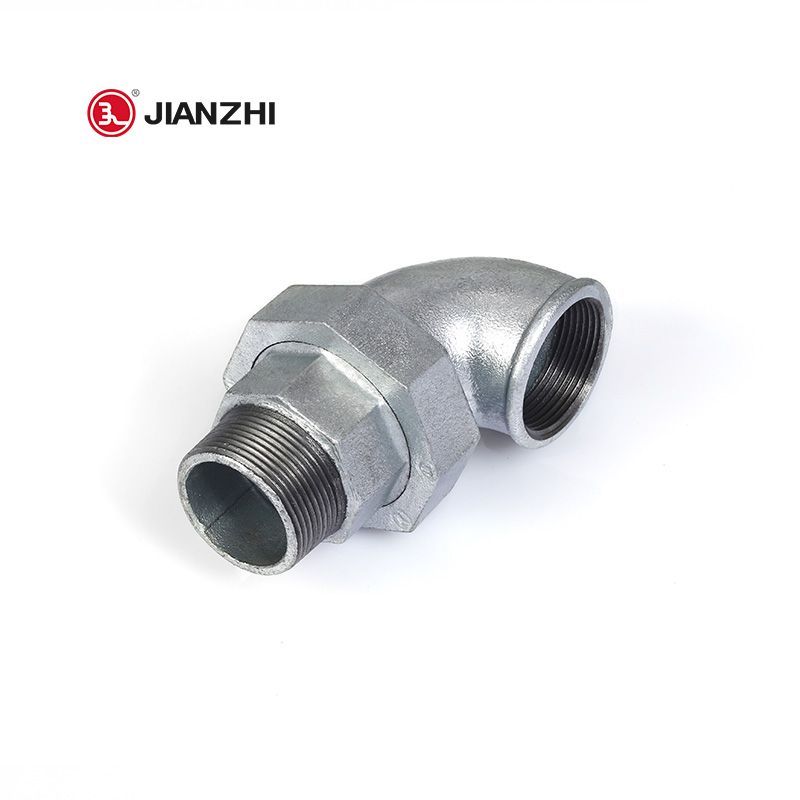

NPT Female Union Elbows Flat Seat Fig.97

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


JIANZHI product quality can pass most of the assessments and certifications in the world, The current international certifications obtained by Jianzhi are as follows: UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI. The National Standard of Malleable iron pipe fittings in China is GB/T3287, material standard is GB/T9440.JIANZHI is the main drafting unit of those two standards and played an important role.

Jianzhi established in 1982, has +4000 employees, covering an area of about 1,400,000.00㎡ and the production capacity is 400,000 tons/year. Jianzhi market share accounts for 13.5% of the domestic market, ranking No.1 in China and the market reject ratio has always been maintained below one in 400,000.

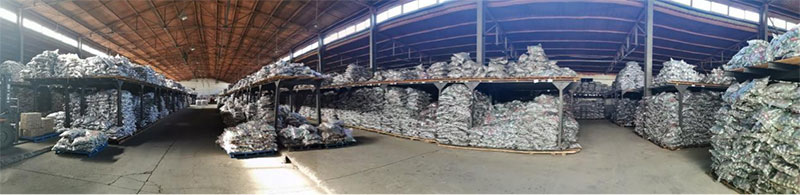

11 warehouses for finished pipe fittings storage, including 9 warehouses for domestic market orders, and 2 warehouses for an overseas market order, keeping the inventory at 25000 tons throughout the year.

NPT Female Union Elbows Flat Seat Fig.97

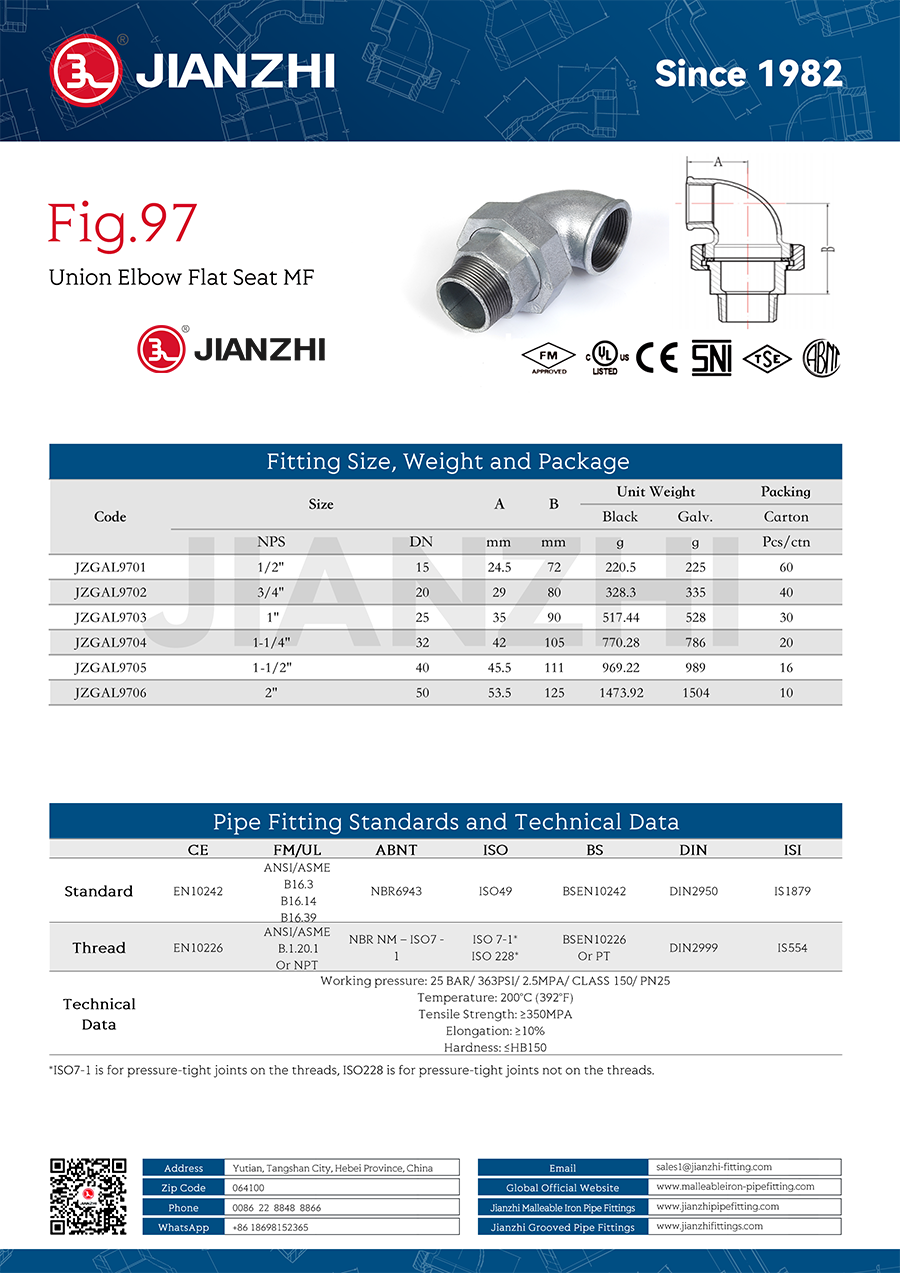

Product Dimensions

NPT Female Union Elbows Flat Seat Fig.97

SIZEin1/23/4111/411/22
mm152025324050
A24.529354245.553.5
B728090105111125
