Galvanized Pipe Fittings

Pipe Joints 90 Degree Elbow Reducing Fig.90R

Size: 1/2" x 3/8"- 4 "x 3"(DN15*10-DN100*80)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

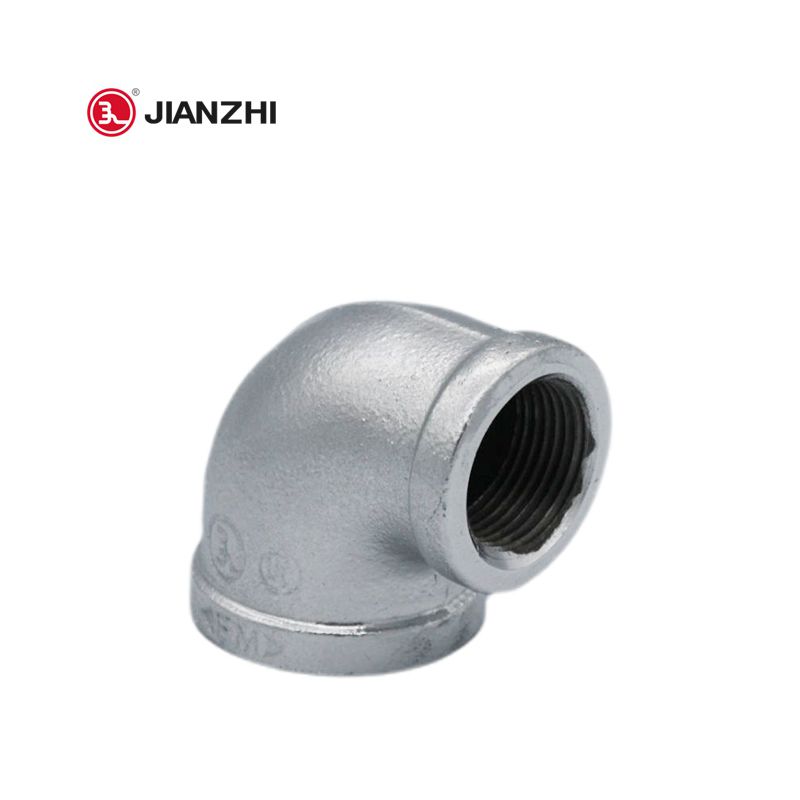

Pipe Joints 90 Degree Elbow Reducing Fig.90R

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

The 90° pipe elbows is used to connect tubes at a 90° angle. As the name suggests, the elbow is always a right-angle in shape. Such type of elbow is also known as "90 bends or 90 ells". This is a pipe fitting device which is bent in such a way to produce 90° change in the direction of flow of the fluid/gas in the pipe. The elbow is used to change the direction in piping and is also sometimes called a "quarter bend".

Application Introduce:

In the plumbing piping system, pipe fittings are required to change the direction, elevation, or pipe diameter, as well as to lead the branch pipe from the main pipe. There are many kinds of pipe fittings due to the different shapes and complexity of pipe systems.

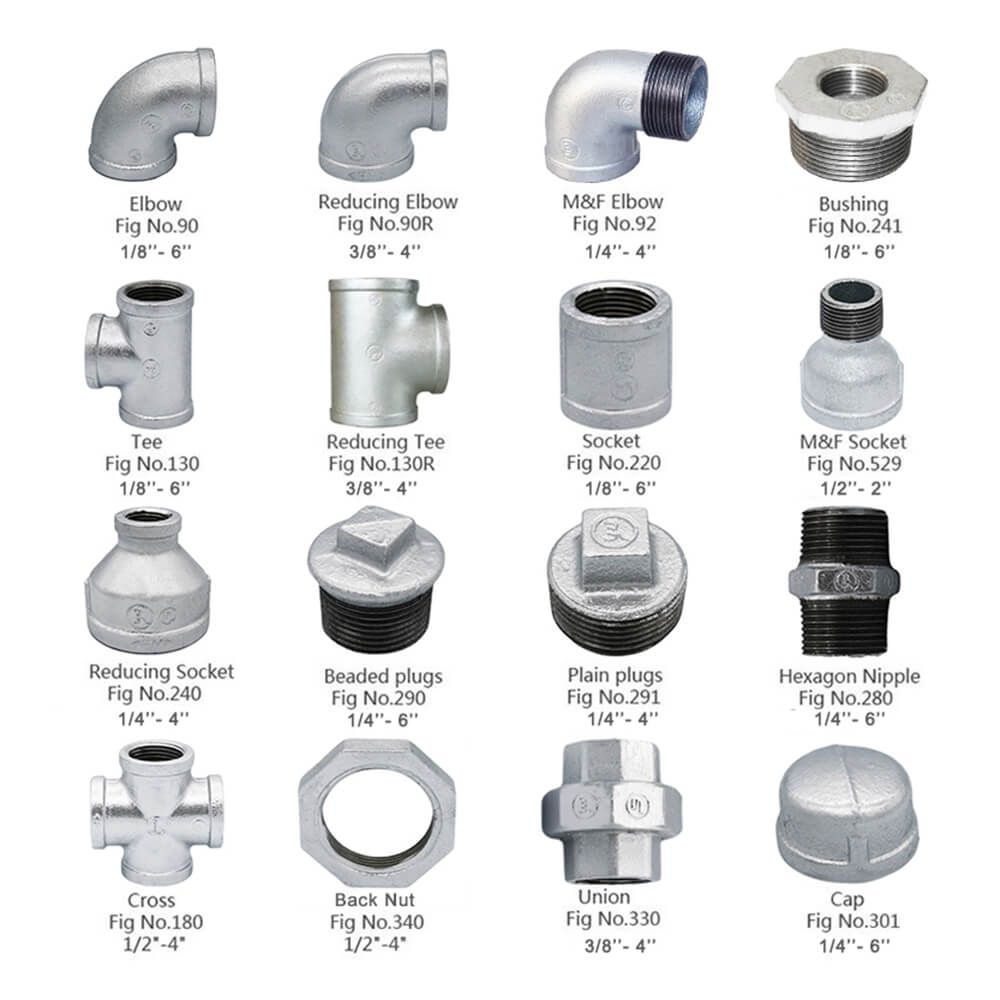

The commonly used pipe fittings are elbow, tee, cross, pipe joint, plugs, cap, etc.


Q1: Are you a trading company, manufacturer or fitting factory?

A: Yes, we are an experienced pipe fitting factory in China, we are the factory's international trade export department, responsible for the export, in order to provide you with professional international trade services.

Q2: How long is the elbow delivery?

A: It depends on your quantity, usually 30-40 days per container.

If you need the products in stock, we can deliver them more quickly.

The fastest delivery time is 3 days for 8 containers.

Q3: Do you provide elbow fitting samples? is it free or extra?

A: Yes, we could offer the Free Samples, you don't need to pay for the samples, just for freight.

Q4: How to visit the elbow fitting factory?

A: Fly to Beijing Airport or Tianjin Airport. Then we can pick up you.

Q5: What are your elbow fitting quality warranty and after-sales service?

We have a strict quality management system, we can ensure to clients each pipe fitting one hundred percent is qualified before it goes out of the workshop. And we offer a 10-year warranty for our products.

Honesty Promised:

You will be rewarded US$ 230 every time if you find grey pipe fittings.

You will be rewarded US$70 every time if you find pipe fittings with blowholes.

You will be rewarded US$30 every time if you find waste pipe fittings.

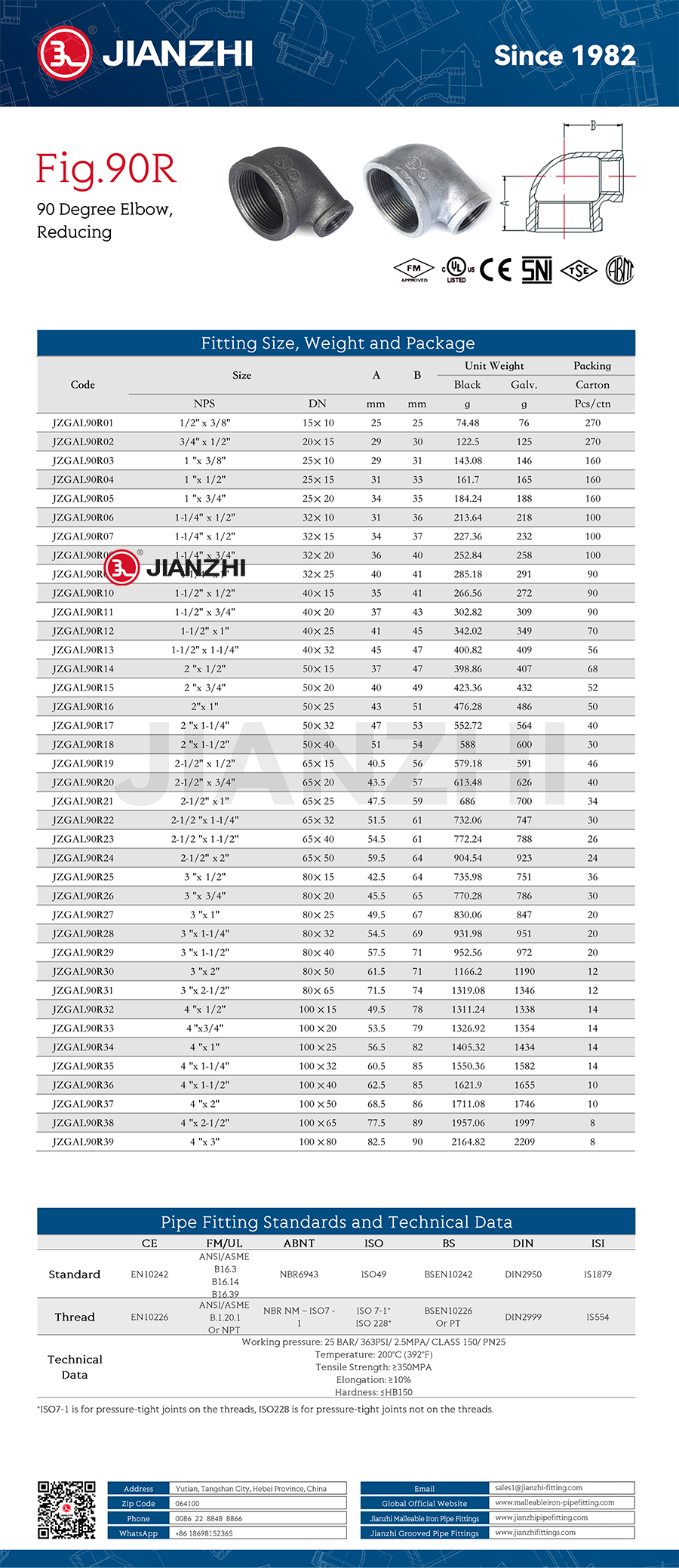

Product Dimensions

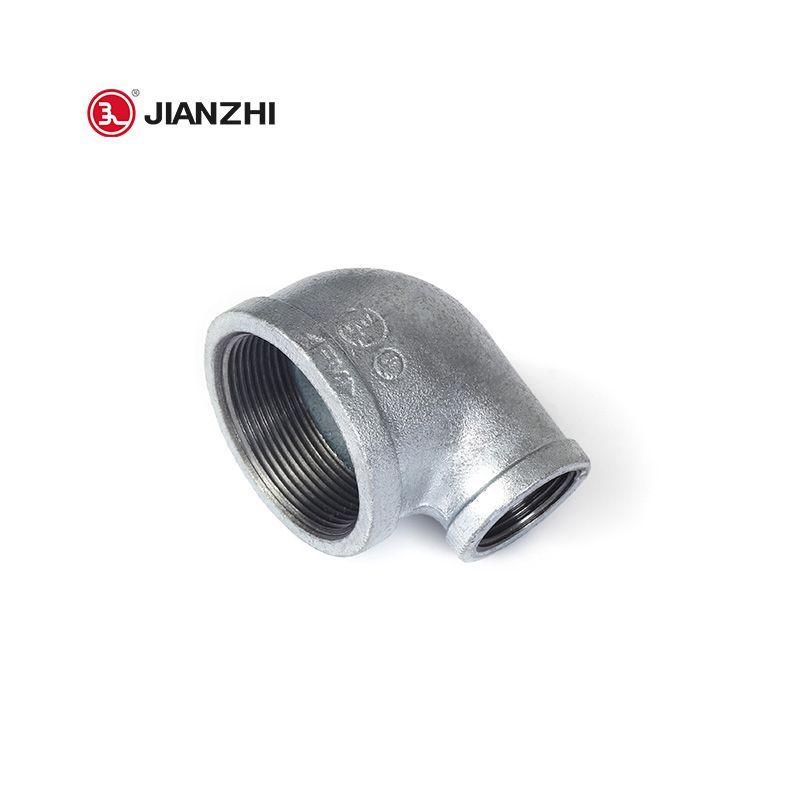

Pipe Joints 90 Degree Elbow Reducing Fig.90R factory
