Size: 1/4''-4''(DN8-DN100)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
A reducer elbow is a type of pipe fitting designed to connect two pipes of different diameters while simultaneously changing the direction of flow, typically at a 90-degree angle.
It combines the functions of both an elbow and a reducer, making it a compact and efficient solution in piping systems.
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Galvanised Malleable Iron
Connect pipes of different sizes with a single fitting
Durable galvanized malleable iron for corrosion resistance
Suitable for water, gas, and industrial piping systems
Available in full size range from 1/4” to 4”
UL/FM approved for reliable performance

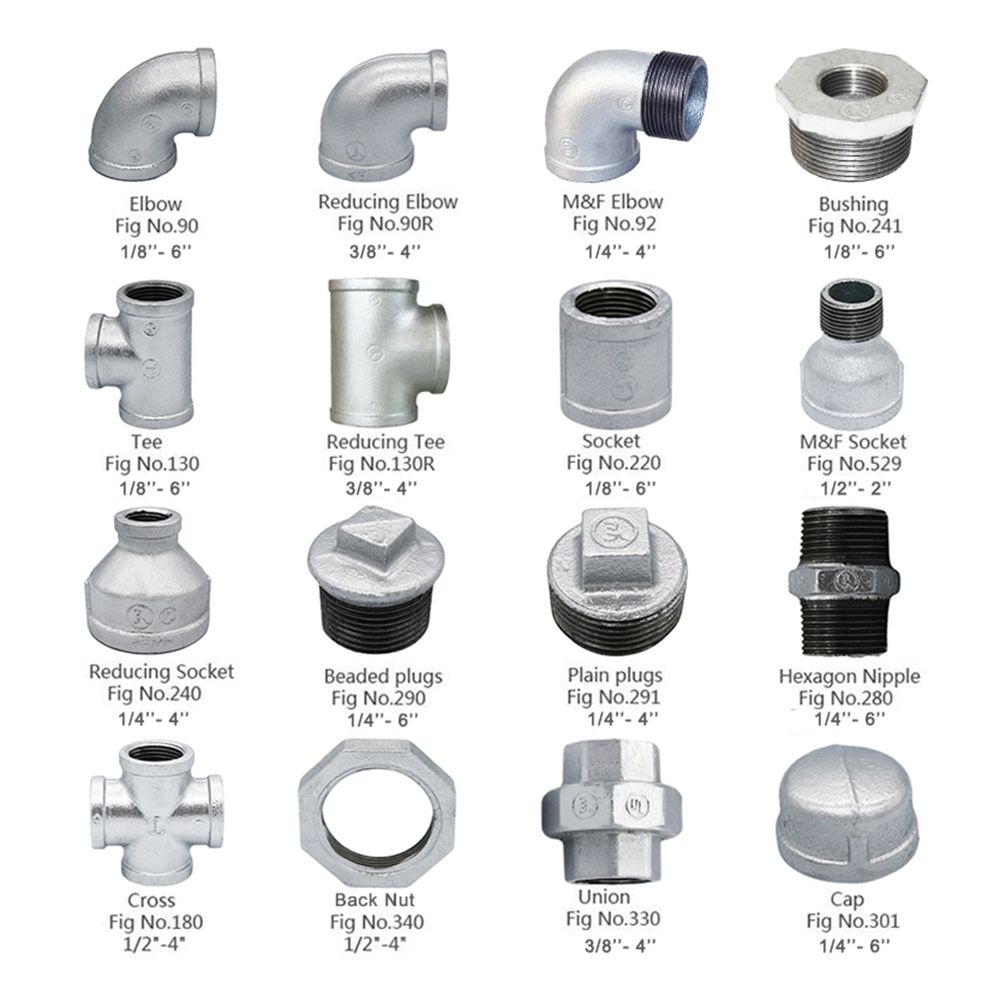

Threaded pipe to be used for water connections. In addition to the Reducer Elbow, we, as a manufacturer of Galvanised Pipe Fittings, also offer the following Galvanised Pipe Fittings:
32mm Galvanised Pipe Repair Coupling Clamp
6mm-50mm Galvanised Pipe Socket
15mm-50mm Galvanised Pipe Cap

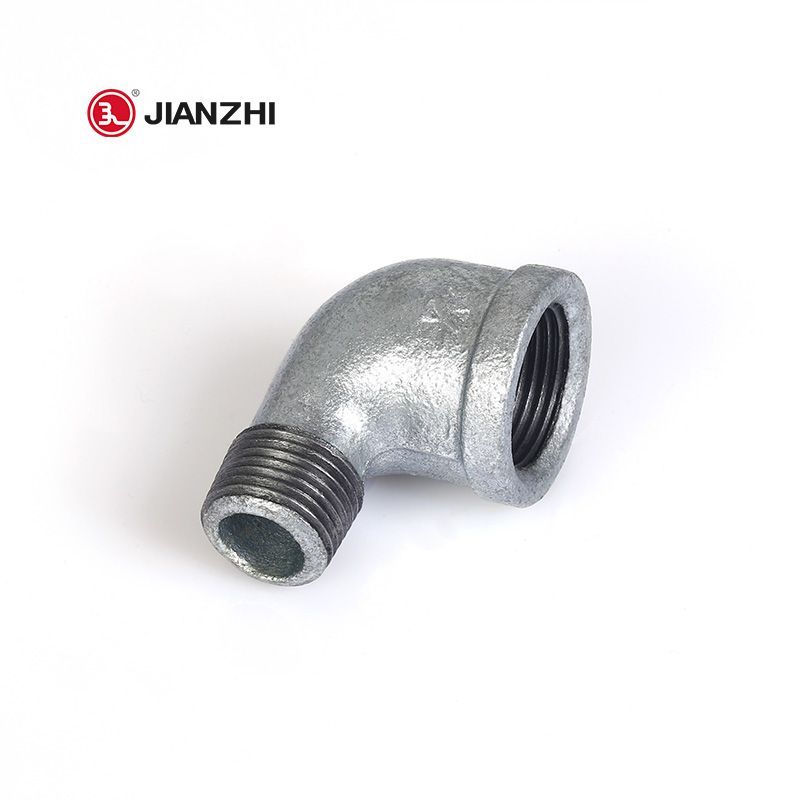

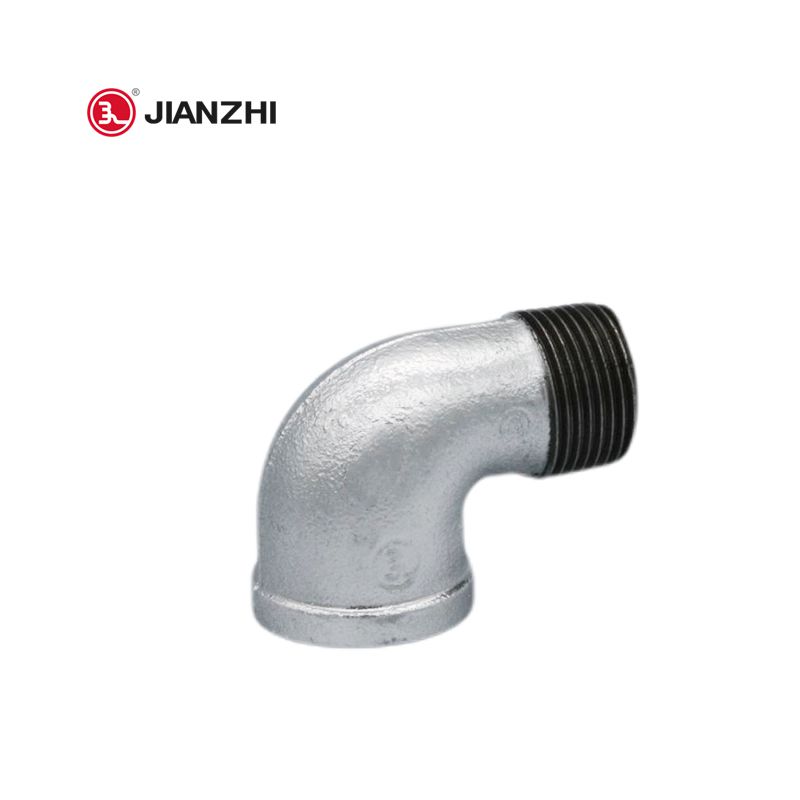

6mm-50mm Galvanised Pipe 90 Degree Elbow M F
40mm Galvanised Pipe Tees
Tensile strength refers to the maximum stress that a material can withstand before it breaks. It is one of the main mechanical indicators of metal materials.JIANZHI adopts KTH330-08 black heart malleable iron as material and ensure tensile strength is no less than 330Mpa,elongation is no less than 8%. Excellent materials are the foundation of high-quality products,chooseJIANZHI, choose high quality.
Made from high-quality malleable iron with excellent tensile strength (≥330 MPa), ensuring durability and long service life.
Hot-dip galvanization provides strong protection against rust and corrosion, making it ideal for humid and outdoor environments.
Compatible with multiple standards:
EN10242
ASME B16.3
ISO 49
DIN / BSP / NPT threads
Working Pressure: up to 25 bar
Temperature Resistance: up to 200°C
Exported to 100+ countries
Stable production capacity
Fast delivery support
Material
Working pressure
Working temperature
Range of application
Size
Ends
Price
Product Features
Product performance
Prompt delivery
Jianzhi has about 4,500 employees and more than 350 technical engineers with distributors covering over 100 countries around the world, like Cannada, Vietnam, Kenya, UK, N.E, NZ, and etc.Contact us, and get Galvanised pipe fittings catalog.
Our galvanized threaded reducer elbows are widely used in:
Water supply systems
Fire protection pipelines
Gas distribution systems
Oil & petrochemical industries
These fittings are designed to ensure reliable flow transition and long-term system stability.
Before purchasing, consider the following factors:
Ensure the inlet and outlet sizes match your pipeline design
Choose BSP, NPT, or DIN depending on your region
Select fittings that meet your system pressure rating
For outdoor or corrosive environments, galvanized fittings are recommended
Product Dimensions
| Code | Size | A | B | Unit Weight | Packing | ||
| Black | Galv. | Carton | |||||
| NPS | DN | mm | mm | g | g | Pcs/ctn | |
| JZGAL90R01 | 1/2" x 3/8" | 15×10 | 25 | 25 | 74.48 | 76 | 270 |
| JZGAL90R02 | 3/4" x 1/2" | 20×15 | 29 | 30 | 122.5 | 125 | 270 |
| JZGAL90R03 | 1 "x 3/8" | 25×10 | 29 | 31 | 154.84 | 158 | 160 |
| JZGAL90R04 | 1 "x 1/2" | 25×15 | 31 | 33 | 141.12 | 144 | 160 |
| JZGAL90R05 | 1 "x 3/4" | 25×20 | 34 | 35 | 188.16 | 192 | 160 |
| JZGAL90R06 | 1-1/4" x 3/8" | 32×10 | 31 | 36 | 223.44 | 228 | 100 |
| JZGAL90R07 | 1-1/4" x 1/2" | 32×15 | 34 | 37 | 203.84 | 208 | 100 |
| JZGAL90R08 | 1-1/4" x 3/4" | 32×20 | 36 | 40 | 249.9 | 255 | 100 |
| JZGAL90R09 | 1-1/4" x 1" | 32×25 | 40 | 41 | 287.14 | 293 | 90 |
| JZGAL90R10 | 1-1/2" x 1/2" | 40×15 | 35 | 41 | 263.62 | 269 | 90 |
| JZGAL90R11 | 1-1/2" x 3/4" | 40×20 | 37 | 43 | 245.98 | 251 | 90 |
| JZGAL90R12 | 1-1/2" x 1" | 40×25 | 41 | 45 | 260.68 | 266 | 70 |
| JZGAL90R13 | 1-1/2" x 1-1/4" | 40×32 | 45 | 47 | 383.18 | 391 | 56 |
| JZGAL90R14 | 2 "x 1/2" | 50×15 | 37 | 47 | 398.86 | 407 | 68 |
| JZGAL90R15 | 2 "x 3/4" | 50×20 | 40 | 49 | 423.36 | 432 | 52 |
| JZGAL90R16 | 2"x 1" | 50×25 | 43 | 51 | 469.42 | 479 | 50 |
| JZGAL90R17 | 2 "x 1-1/4" | 50×32 | 47 | 53 | 536.06 | 547 | 40 |
| JZGAL90R18 | 2 "x 1-1/2" | 50×40 | 51 | 54 | 580.16 | 592 | 30 |
| JZGAL90R19 | 2-1/2" x 1/2" | 65×15 | 40.5 | 56 | 579.18 | 591 | 46 |
| JZGAL90R20 | 2-1/2" x 3/4" | 65×20 | 43.5 | 57 | 609.56 | 622 | 40 |
| JZGAL90R21 | 2-1/2" x 1" | 65×25 | 47.5 | 59 | 646.8 | 660 | 34 |
| JZGAL90R22 | 2-1/2 "x 1-1/4" | 65×32 | 51.5 | 61 | 726.18 | 741 | 30 |
| JZGAL90R23 | 2-1/2 "x 1-1/2" | 65×40 | 54.5 | 61 | 755.58 | 771 | 26 |
| JZGAL90R24 | 2-1/2" x 2" | 65×50 | 59.5 | 64 | 884.94 | 903 | 24 |
| JZGAL90R25 | 3 "x 1/2" | 80×15 | 42.5 | 64 | 735.98 | 751 | 36 |
| JZGAL90R26 | 3 "x 3/4" | 80×20 | 45.5 | 65 | 781.06 | 797 | 30 |
| JZGAL90R27 | 3 "x 1" | 80×25 | 49.5 | 67 | 846.72 | 864 | 20 |
| JZGAL90R28 | 3 "x 1-1/4" | 80×32 | 54.5 | 69 | 970.2 | 990 | 20 |
| JZGAL90R29 | 3 "x 1-1/2" | 80×40 | 57.5 | 71 | 966.28 | 986 | 20 |
| JZGAL90R30 | 3 "x 2" | 80×50 | 61.5 | 71 | 1183.84 | 1208 | 12 |
| JZGAL90R31 | 3 "x 2-1/2" | 80×65 | 71.5 | 74 | 1319.08 | 1346 | 12 |
| JZGAL90R32 | 4 "x 1/2" | 100×15 | 49.5 | 78 | 1313.2 | 1340 | 14 |
| JZGAL90R33 | 4 "x3/4" | 100×20 | 53.5 | 79 | 1340.64 | 1368 | 14 |
| JZGAL90R34 | 4 "x 1" | 100×25 | 56.5 | 82 | 1424.92 | 1454 | 14 |
| JZGAL90R35 | 4 "x 1-1/4" | 100×32 | 60.5 | 85 | 1538.6 | 1570 | 14 |
| JZGAL90R36 | 4 "x 1-1/2" | 100×40 | 62.5 | 85 | 1653.26 | 1687 | 10 |
| JZGAL90R37 | 4 "x 2" | 100×50 | 68.5 | 86 | 1764 | 1800 | 10 |
| JZGAL90R38 | 4 "x 2-1/2" | 100×65 | 77.5 | 89 | 1902.18 | 1941 | 8 |
| JZGAL90R39 | 4 "x 3" | 100×80 | 82.5 | 90 | 2109.94 | 2153 | 8 |
You may also be interested in:
Galvanized pipe elbows
Threaded tees
Pipe unions
We support bulk orders with a minimum order quantity of approximately 5 tons (around USD 15,000), depending on the product specifications.
Contact us today to get:
- Latest price list
- Product catalog
- Technical support
- Fast delivery solutions
Send your inquiry now and get a detailed quotation within 24 hours.
