Galvanized Pipe Fittings

Long Compression Coupling

Size: 1/2''-2''(DN15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

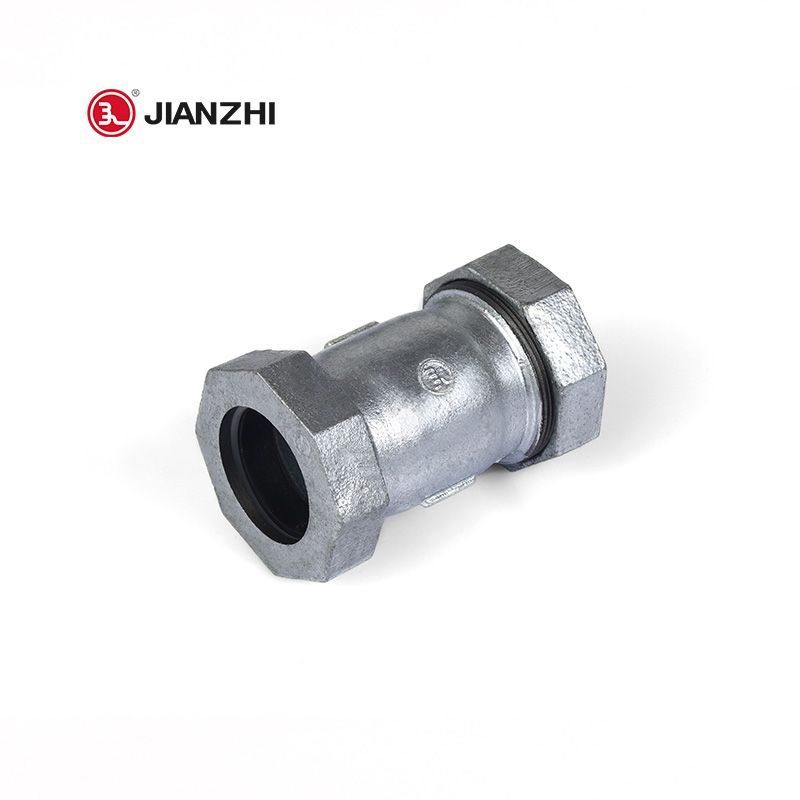

Long Compression Coupling

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Long compression coupling, Fast joint fittings for quick connecting of two pipes. malleable cast iron, surface hot-dip galvanizing process.

The LCC fitting has many useful features that should be highlighted:

Durability in service

Minimal chance of damage and malfunction

Reliability of connections

Excellent corrosion resistance

Work at very high temperatures

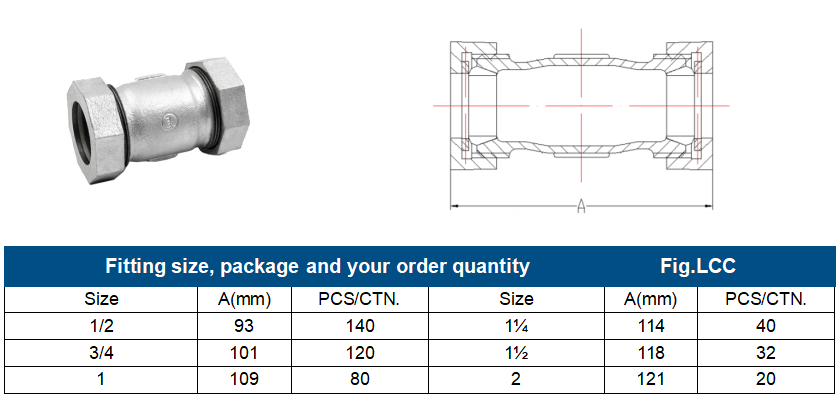

Product Dimensions

Long Compression Coupling
