Short Compression Coupling

Short Compression Coupling

Size: 1/2''-2''(DN15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

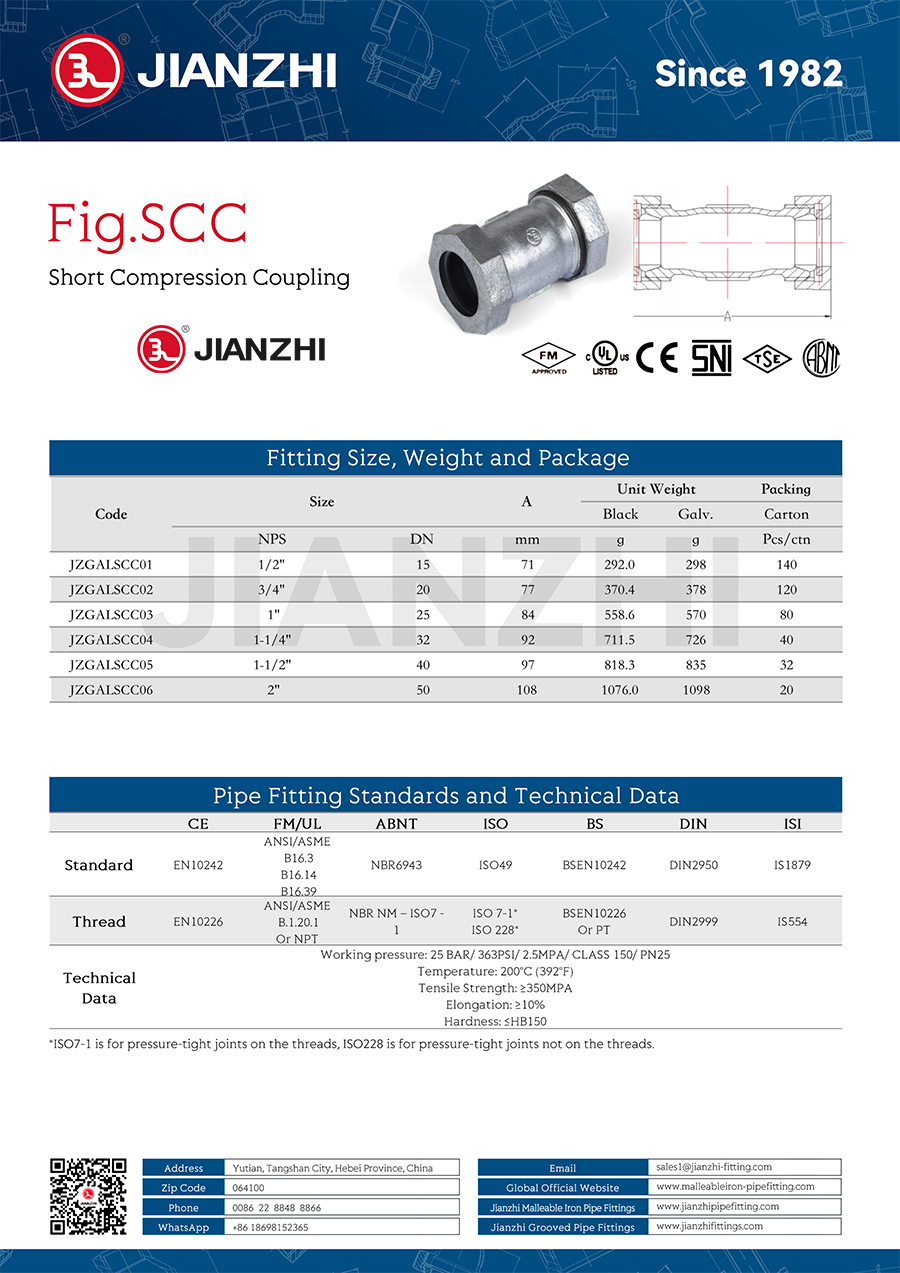

Product Dimensions

Short Compression Coupling

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

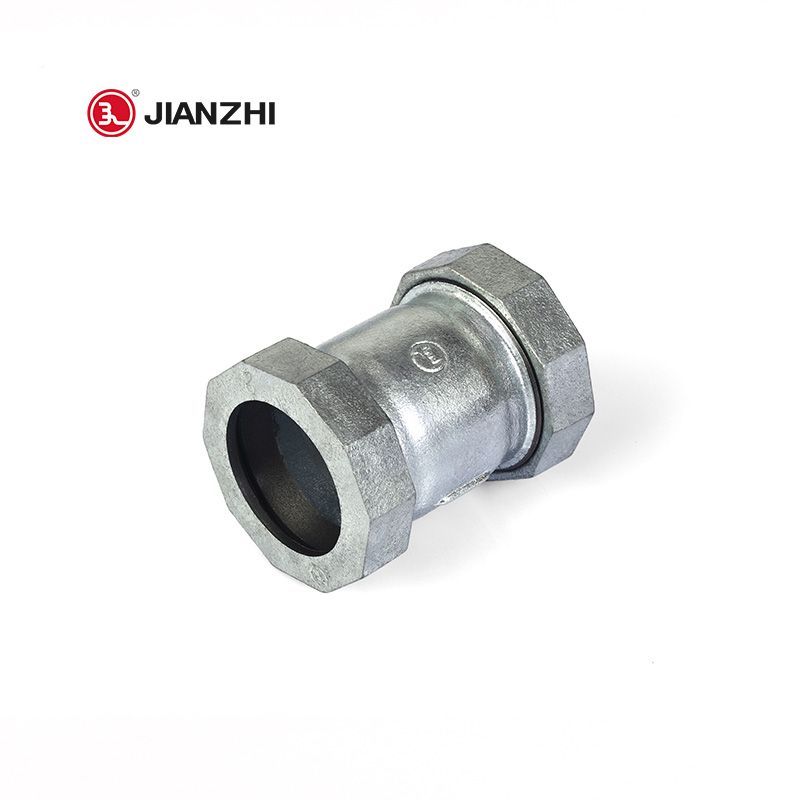

Short compression coupling, Fast joint fittings for quick connecting of two pipes. malleable cast iron, surface hot dip galvanizing process.

JIANZHI pipe fitting can offer customers black or galvanized finishing. The surface-related mass of the zinc coating shall be not less than the average medium layer thickness is 70µm of 5 pipe fittings. Zinc coating on the internal surface of the fitting is continuous, the same thickness as the external surface, with the exception of the machined black internal thread. The zinc coating is free from zinc blisters, zinc burrs, non-metallic remainders. The surface of the fittings is free of polycyclic aromatic hydrocarbons
