Galvanized Pipe Fittings

Pipe Reducer Socket Male and Female Fig.246

Size: 1/2''-2''(D15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

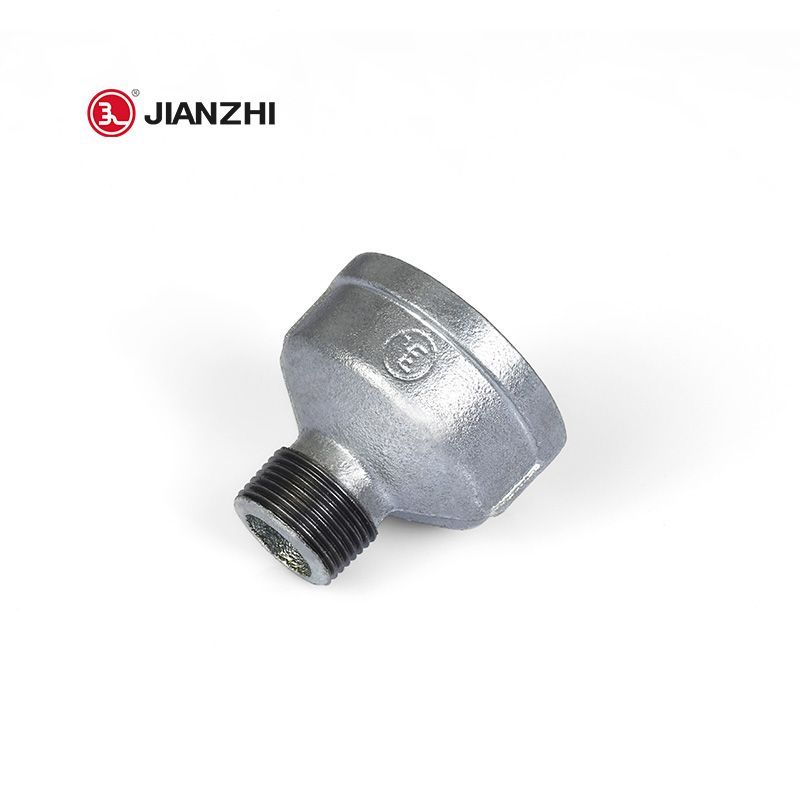

Pipe Reducer Socket Male and Female Fig.246

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The function of reducing pipe fittings is to change the diameter of the pipeline. From the perspective of fluid movement, most of them change from large to small, and some of them from small to large. For example, the reducing pipe connector of steam return pipe and sewer pipe change from small to large.

Malleable iron-reducing pipe fittings are generally divided into two types, one is female thread reducing pipe fitting, also called external joints; the other is male and female thread pipe fitting. There is also a special type, called "Bushing". Although it is not called a reducer pipe fitting, it functions as a reducer.

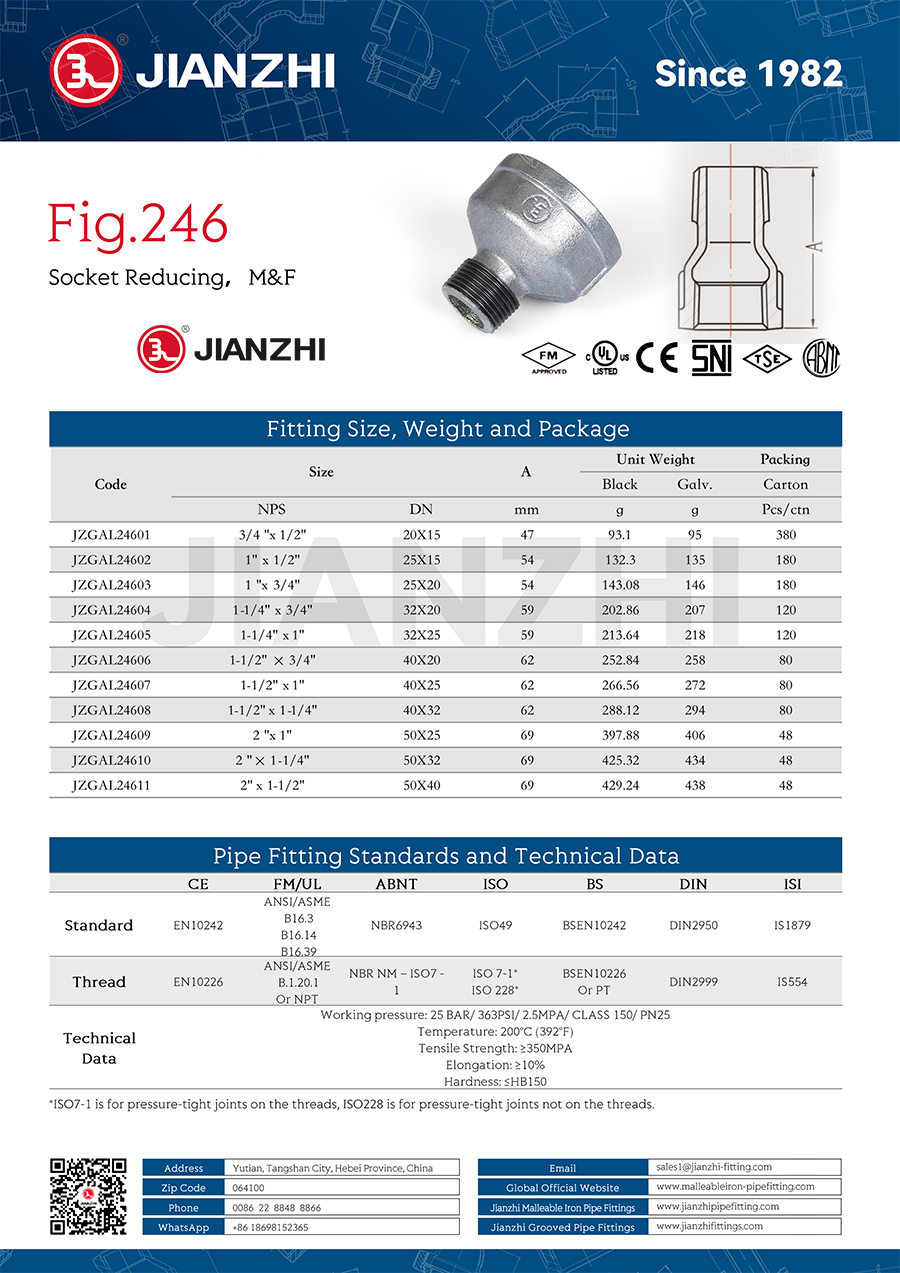

Product Dimensions

Pipe Reducer Socket Male and Female Fig.246
