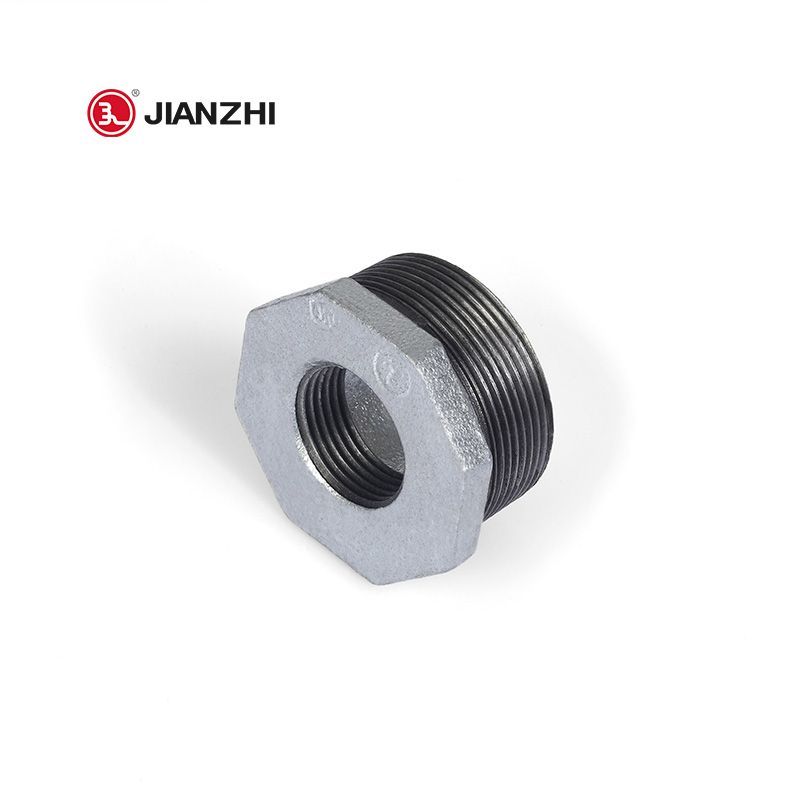

Galvanized Pipe Bushing Fig.241

Galvanized Pipe Bushing Fig.241

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

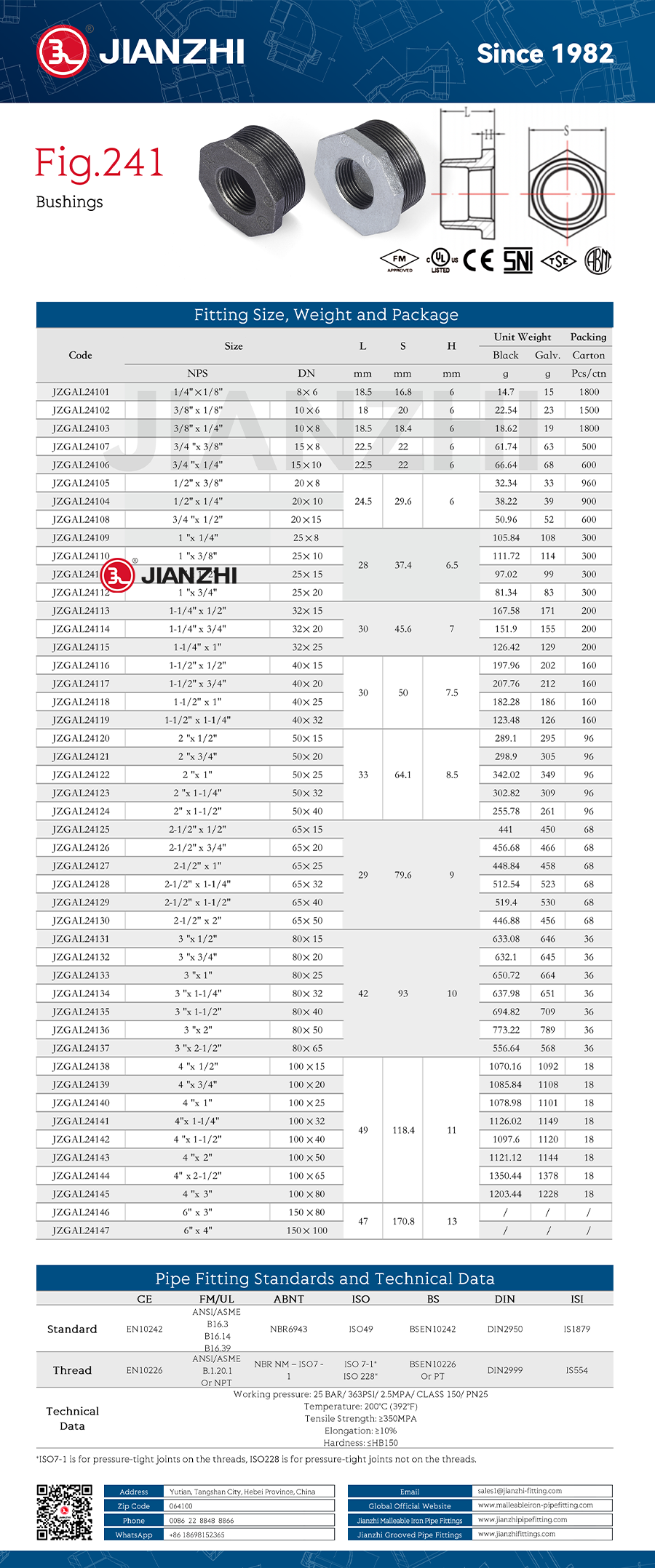

Product Dimensions

Galvanized Pipe Bushing Fig.241



Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The bushing is used as an adapter. It is needed to connect pipes with different diameters. This is especially important if you urgently need to connect pipes that were purchased by different buyers and in different years. In this case, there are almost no alternatives. It is considered an indispensable element, which is why it is so important to get it as soon as possible if you need to create a pipeline in the shortest possible time.
