Galvanized Pipe Fittings

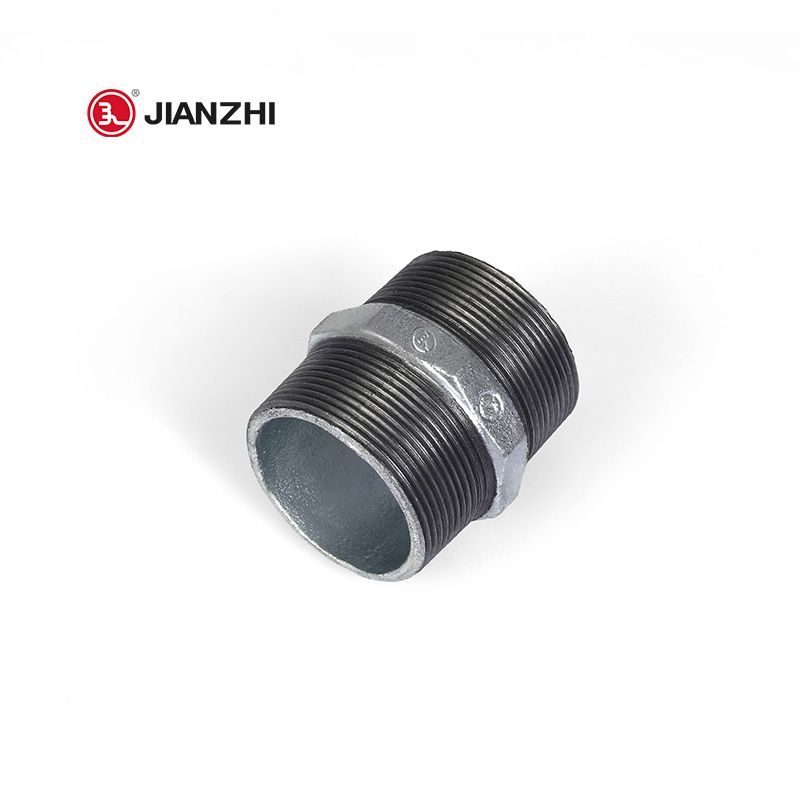

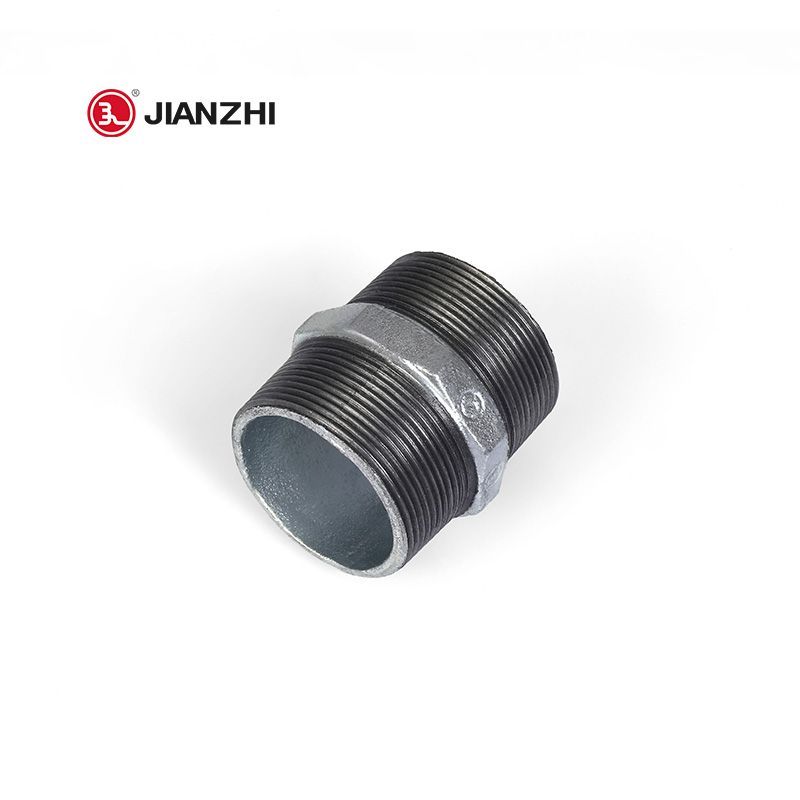

Galvanized Nipple Equal Fig.280

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Galvanized Nipple Equal Fig.280

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Nipples made of commercial galvanized cast iron are used in the installation of steel and cast iron pipelines.

They connect cast iron or steel fittings with the possibility of converting from a smaller to a larger thread. The area of application is very wide; these are various liquids, heat carriers, steam, gas, or compressed air.

Using a threaded connection, galvanized cast iron nipples allow you to mount pipelines of any configuration, depending on the tasks.

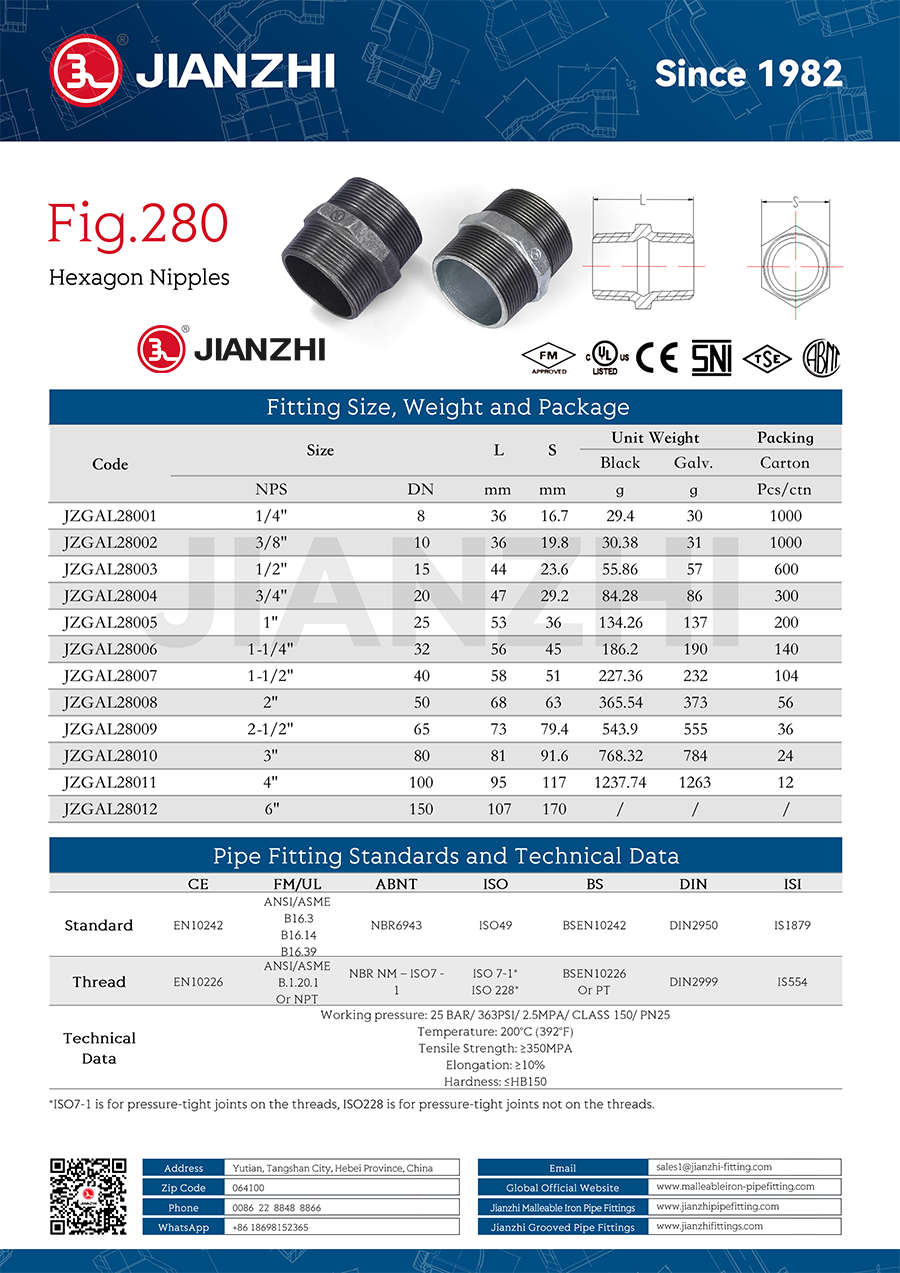

Product Dimensions

Galvanized Nipple Equal Fig.280
