Galvanized Pipe Fittings

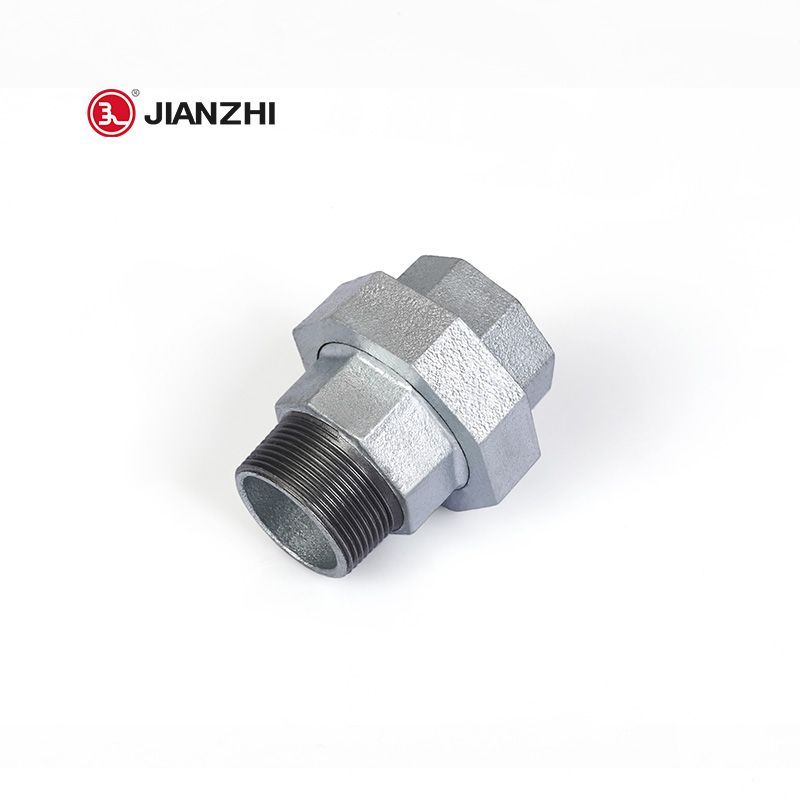

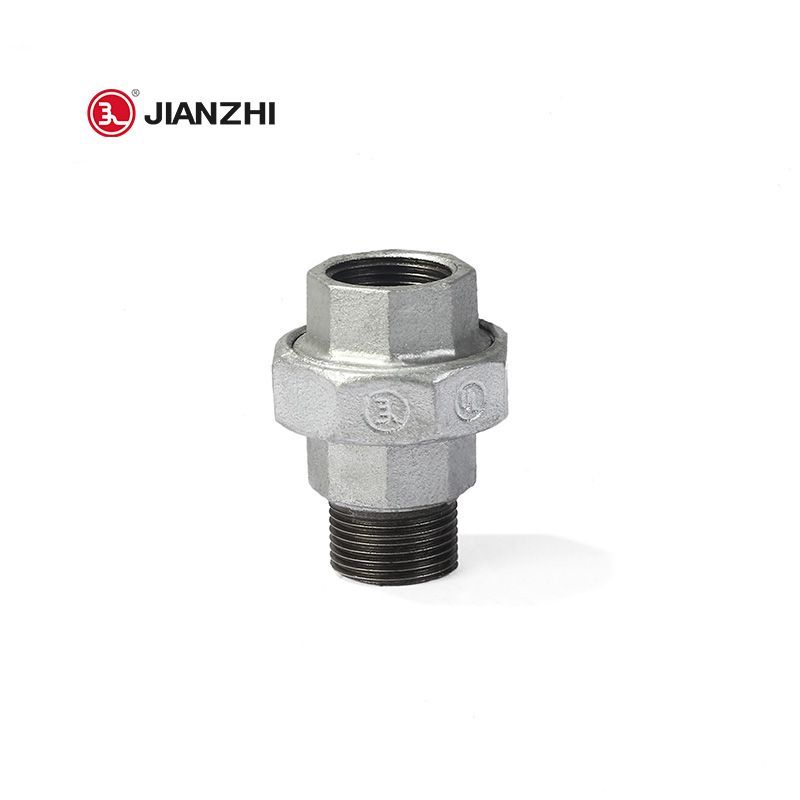

Galvanized Fittings Union Taper Seat Fig. 341

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 28Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Galvanized Fittings Union Taper Seat Fig. 341

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 13%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

Shortest delivery time

we ensure under 35 days for delivery, we have no government environment protection restrictions.


As Jianzhi Group has always been adhering to the concept of law-abiding operation, we have always invested in environmental protection. Jianzhi is the only factory in China that uses all-electric furnace smelting. It was the first to discard cupola smelting. At the same time, the factory is equipped with sewage treatment that meets national requirements System, treat the sewage generated by the pre-treatment of electroplating, and strictly comply with the national environmental protection requirements from the policy.

At the same time, our company has a second production base in the city of Chifeng, Inner Mongolia, so it is exempt from the restriction of production restriction policies in the Beijing-Tianjin-Hebei region. Now Ninghe's production base has been fully put into use, and the established production capacity has reached 8,000 tons per month, with an annual production capacity of 100,000 tons. It is currently the only domestic enterprise that is not affected by the national environmental protection policy and can still produce at full capacity.

Therefore, Jianzhi products can give customers a guaranteed production cycle and delivery cycle.

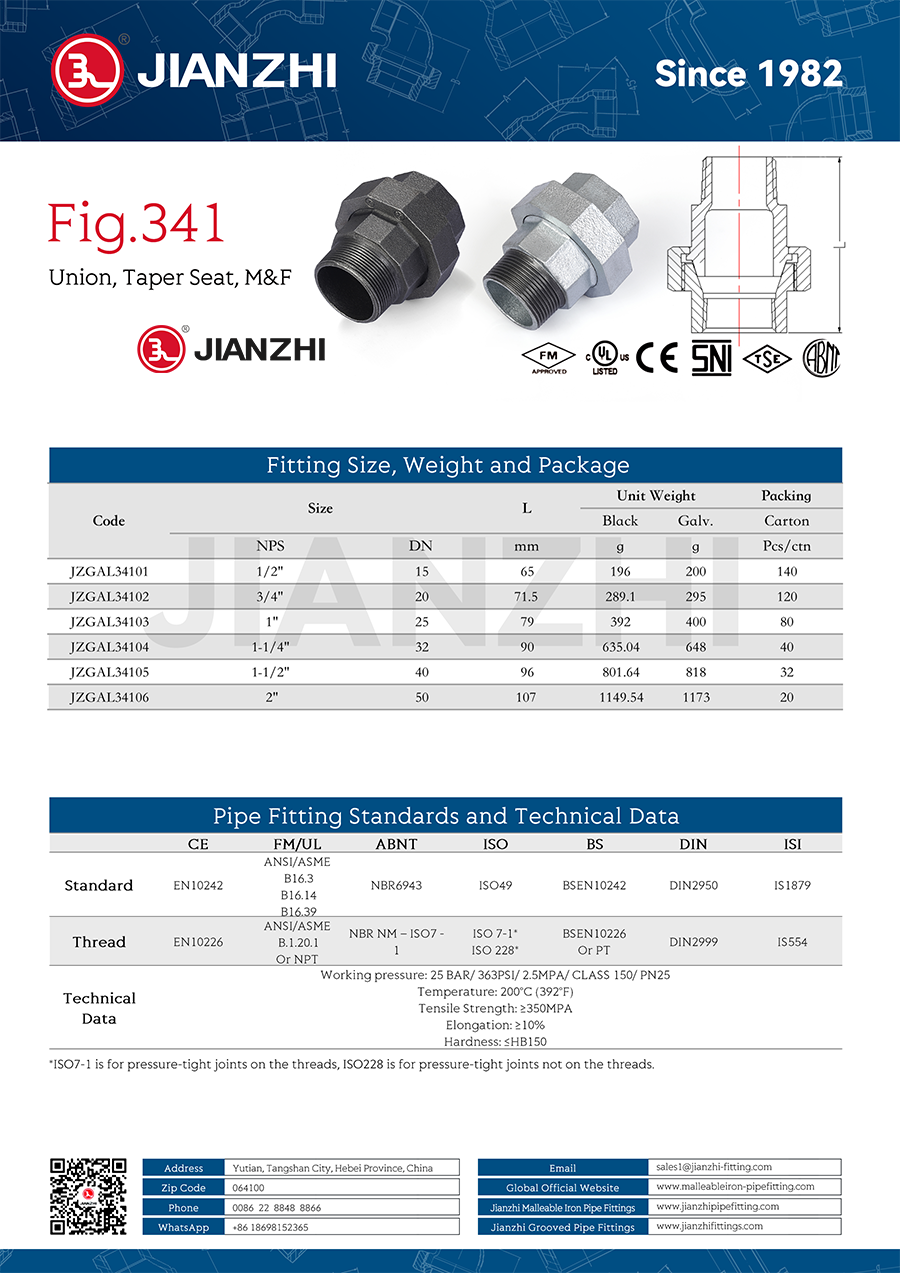

Product Dimensions

Galvanized Fittings Union Taper Seat Fig. 341
