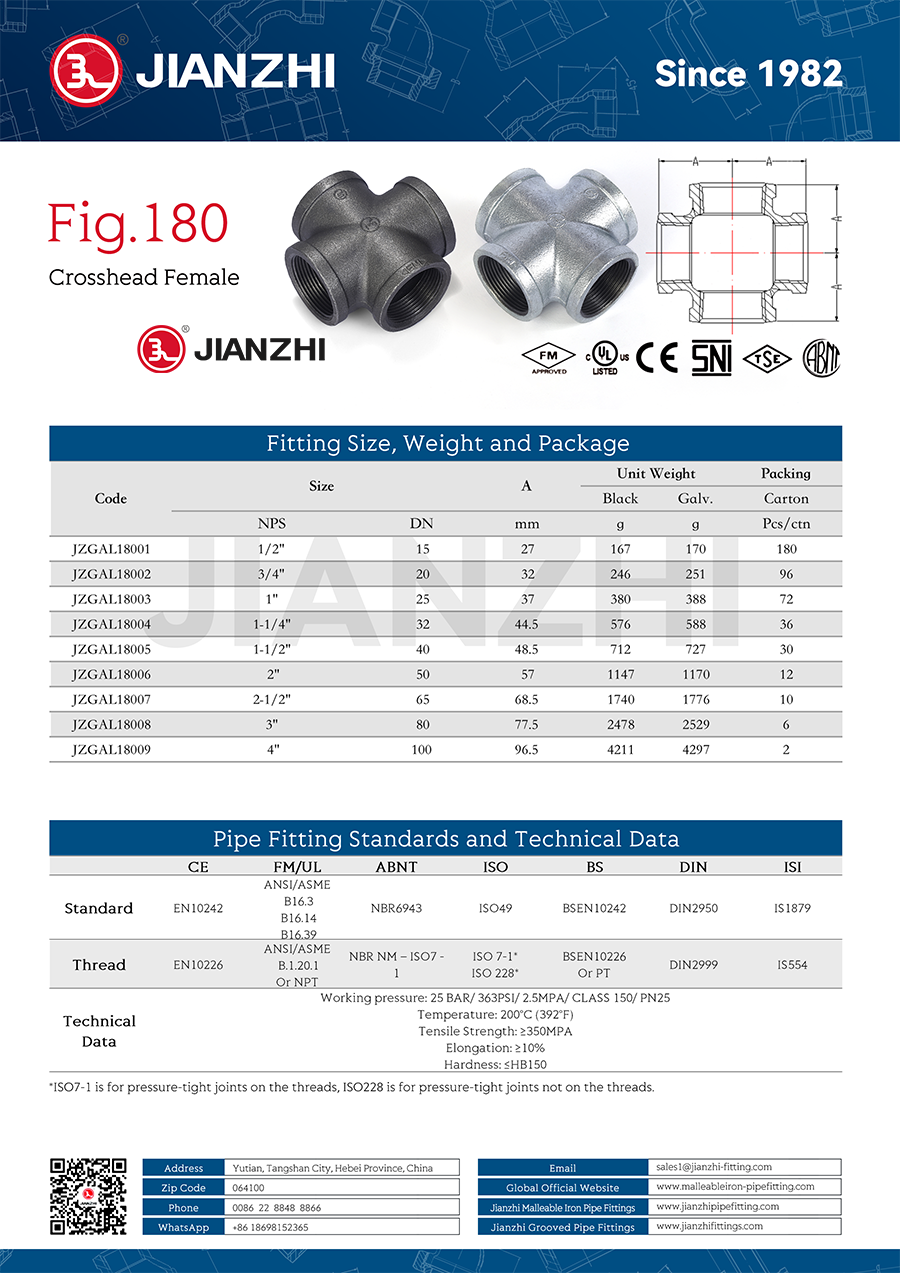

4 Way Pipe Fitting Equal Cross Fig.180

The Galvanized 4 Way Pipe Fitting Equal Cross is a durable and corrosion-resistant solution for connecting four pipes of equal diameter in plumbing and industrial systems. Manufactured from high-quality malleable iron, this fitting ensures mechanical strength and leak-proof connections, making it ideal for distributing liquids, gases, or steam across multiple directions.

Main Features of 4 Way Pipe Connector Fitting

Surface Treatment: Hot-dip Galvanized (zinc coating ≥ 70μm)

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

Thread Standard: BSP, NPT, DIN, ISO

4 Way Galvanized Pipe Fitting Cross

The appearance of the four-way pipe is a cross, so we usually call the four-way pipe "cross". It generally has two functions: one is to control the flow direction, which can distribute the fluid in one direction to the other three directions, and the second is to combine the fluid from different directions into one direction.

The 4 way galvanized pipe connector  are made of malleable cast iron, which is more cost-effective than other four-way pipe fittings in the same industry. Good performance in transporting fluids, gases, or corrosive liquids.

The four-way pipe fittings crpss are hot-dip galvanized. The zinc is evenly plated on the surface of the pipe fittings. The zinc layer is uniform, and the thickness meets the requirements of the European Union. The thickness of the zinc layer is satisfactory no matter from the inside or outside.

Why Choose Our Malleable Iron Equal Cross Fittings?

☑ Corrosion Resistance: The hot-dip galvanized surface ensures long-term durability in harsh and humid environments.

☑ Precision Casting: Manufactured with strict tolerance control for perfect alignment and easy installation.

☑ Standards Compliance: Meets international standards such as EN10242, ANSI B16.3, ISO 49.

☑ Wide Compatibility: Works seamlessly with galvanized steel pipes, iron pipes, and other threaded fittings.

☑ Reliable Performance: Excellent sealing performance to prevent leakage and system failures.

Applications of Galvanized 4-Way Pipe Fittings

● Water supply & drainage

● Heating and cooling systems

● Construction and building infrastructure

● Industrial pipeline systems

● Chemical and gas transmission
