Galvanized Pipe Fittings

GI Reducer Pipe Fitting Socket Fig. 529A

gi pipe socket fittings

Size: 1/2''-2''(D15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

GI Reducer Pipe Fitting Socket Fig. 529A

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

A gi pipe socket fittings is a fitting that simply goes over the end of a pipe.

Function

The pipe socket maintains proper flow to keep the water flowing in the correct direction. It is easy to use and easy to resolve the combined flow of water in any direction.

pipe sockets are components used in many different industries to connect, terminate, control flow and change the direction of pipes. When purchasing fittings, consider the application as this will affect the type of material, shape, size and durability required. Fittings are available threaded or unthreaded, in a variety of shapes, styles, sizes and schedules (pipe wall thickness).

Features

Easy to install

Durable for hot wastewater treatment

UV stabilized to ensure long life

Maintenance free


FAQ of gi pipe fittings

What are gi pipe fittings?

As the name suggests, gi pipe fittings are ductile pipe fittings. After galvanizing treatment, a galvanized layer is attached to the surface of the pipe fittings. The main purpose of galvanizing the surface of forgeable steel pipe fittings is to isolate the pipe fittings from oxygen and moisture in the air, thereby preventing the gi pipe fittings from rusting and increasing the service life of the pipe fittings, especially the forgeable steel pipe fittings. Gi pipe fittings are exposed to the outdoors for a long time. On the other hand, galvanizing is also an effective method of operation. Since the surface of gi pipe fittings is already galvanized, it saves the time of oiling or painting the surface of the pipe fittings, making the manufacturing process not only more convenient, but also a time-saving and money-saving method. In oil and gas systems, galvanized pipe fittings are the preferred choice due to the specificity of their industry.

Application areas

1) Water supply and drainage

In the water supply and drainage pipeline system, there are high requirements for the anti-rust ability of the pipeline, so gi pipe fittings are generally used. Especially for hot-dip galvanized pipe fittings, the gi layer is thicker, the rust resistance is stronger, and the corrosion resistance is stronger. In fact, not only in the field of water supply and drainage, but also in any environment that requires high corrosion resistance, hot-dip galvanized pipe fittings should be used. Regarding the selection of heavy-duty strips, medium-sized beads and beads, you need to consider comprehensively according to your own budget and local national or building standards, but if you have higher requirements for safety in use, it is recommended to purchase higher standard pipe fittings.

2)Oil system
In the oil system, due to the fact the oil itself has the impact of stopping the rust of the gi pipe fittings, non-galvanized pipe fittings are commonly selected. But there may be a hassle that after the pipe is transporting oil, it's miles tough for the internal wall of the pipe to rust due to the fact it's miles in touch with the oil, however the key outer wall nonetheless has the opportunity of rusting and aging. Spray paint remedy to decorate the corrosion resistance of the outer floor of the pipe fittings. In addition, due to the fact the non-galvanized black pipe fittings without delay disclose the steel number one satiation of malleable forged iron and shine with a completely unique steel texture, many black pipe fittings are used to make handicrafts. On the only hand, the satiation and texture of the black pipe fittings are very stunning, and on the opposite hand, they also can be sprayed with one-of-a-kind hues of paint on their surfaces to make all sorts of stunning handicrafts.

3)Gas system

Gas transmission is a vital utility area of malleable pipe fittings. Due to the corrosive nature of herbal fuel line, galvanized pipe fittings are decided on without exception for the malleable pipe fittings that shipping herbal fuel line. Moreover, the protection necessities of herbal fuel line pipelines are very excessive, so the choice of pipe fittings would require the best standards, that is, heavy banded pipe fittings. Here I would love to remind you that the choice of pipe fittings should be blended with the particular utility area. Improper choice might also additionally motive severe protection problems. In fields with excessive protection necessities, excessive-preferred pipe fittings should be decided on.



The advantages of Jianzhi Group's gas pipe fittings

Good quality

Good first-rate Malleable pipe fittings utilized in fuel line structures are extraordinarily secure due to the catastrophic results withinside the occasion of a leak. The malleable pipe fittings produced through Jianzhi Group, every pipe becoming will go through a strain check earlier than leaving the factory, and best the pipe fittings that by skip the check may be sold. In addition, Jianzhi Group additionally has the very best first-rate dedication withinside the industry. If you discover a grey product produced through Jianzhi Group withinside the market, you'll obtain a praise of 1,618 RMB from Jianzhi Group. Therefore, there may be clearly no want to fear approximately first-rate troubles while selecting the malleable pipe fittings of Jianzhi Group.

Strong supply ability

Strong deliver ability After forty years of development, Jianzhi Group has emerged as the most important expert malleable pipe fittings producer in China. We have super-huge malleable pipe fittings production flora in Tangshan City, Hebei Province, China and Chifeng City, Inner Mongolia, that could meet the once-a-year manufacturing potential of forty,000 tons. deliver potential.

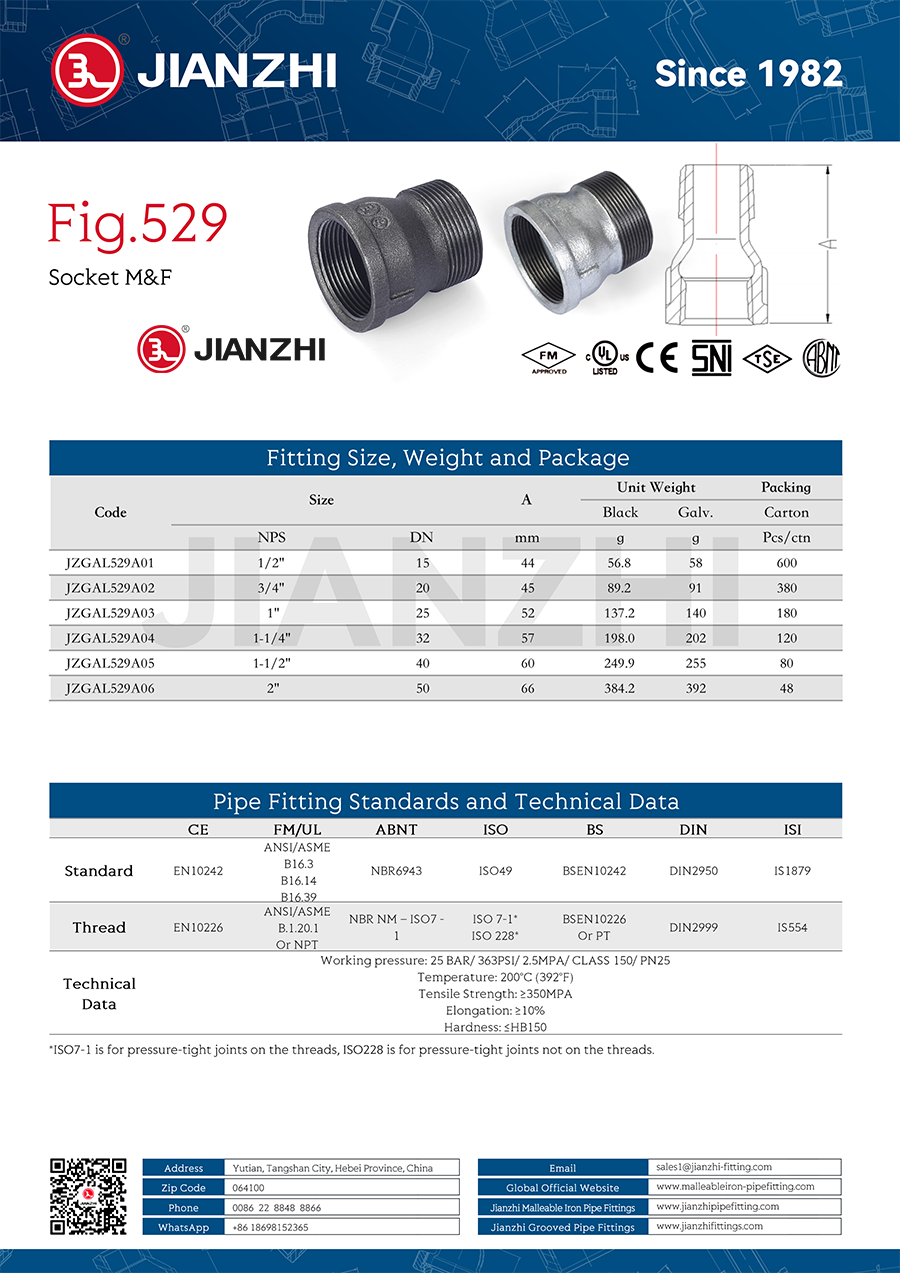

Product Dimensions

GI Reducer Pipe Fitting Socket Fig. 529A
