Coupling Pipe Socket Part Threaded Fig.220

Coupling Pipe Socket Part Threaded Fig.220

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

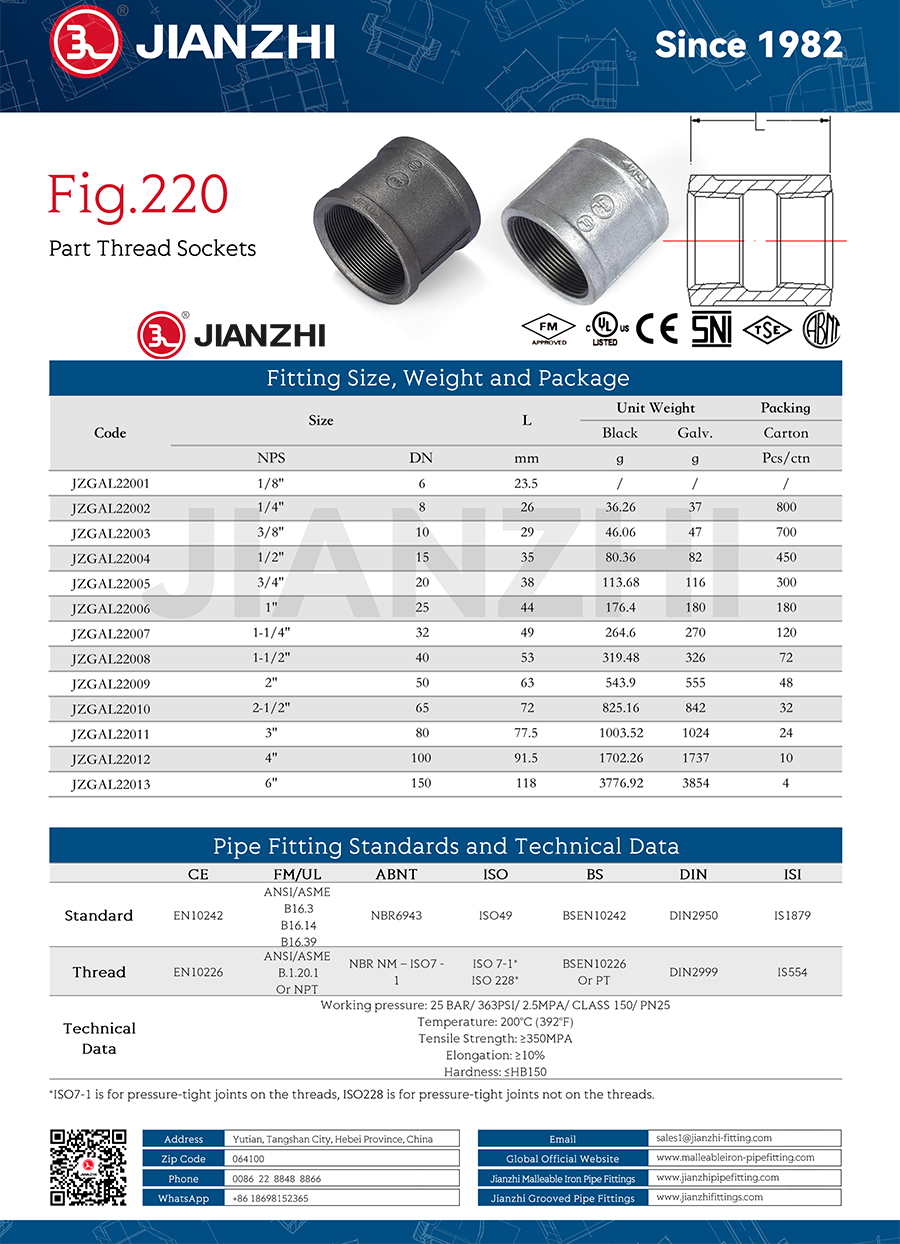

Product Dimensions

Coupling Pipe Socket Part Threaded Fig.220

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The socket is commonly used to connect two pipes of the same size. The socket is also known as Coupling, Malleable iron material, the surface can be hot-dip galvanized and cold galvanized. 220 Socket is part threaded, its threads at both ends are disconnected.

Simplify the pipe installation process with couplers and sockets. Specially designed to slide easily over pipes with no extra equipment required, they are cemented, welded, or mechanically connected to create a pressure-tight joint.

The cast iron threaded coupling can be fully boring or incompletely bored. This is very important for this fitting as it is mainly used with a lock nut and a squeegee. This kit serves as a detachable connection when installing pipelines.

Cast iron fittings - pipe fittings with cylindrical threads are manufactured. The material of the products - malleable cast iron - provides high-performance properties, reliability, and long service life.

Scope: for installation in piping systems for water, steam, and other non-aggressive liquids.
