Gas Pipe Fittings Socket Reducing Fig.240

Gas Pipe Fittings Socket Reducing Fig.240

Size: 3/8x1/4-4x3(DN10*8-DN100*80)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

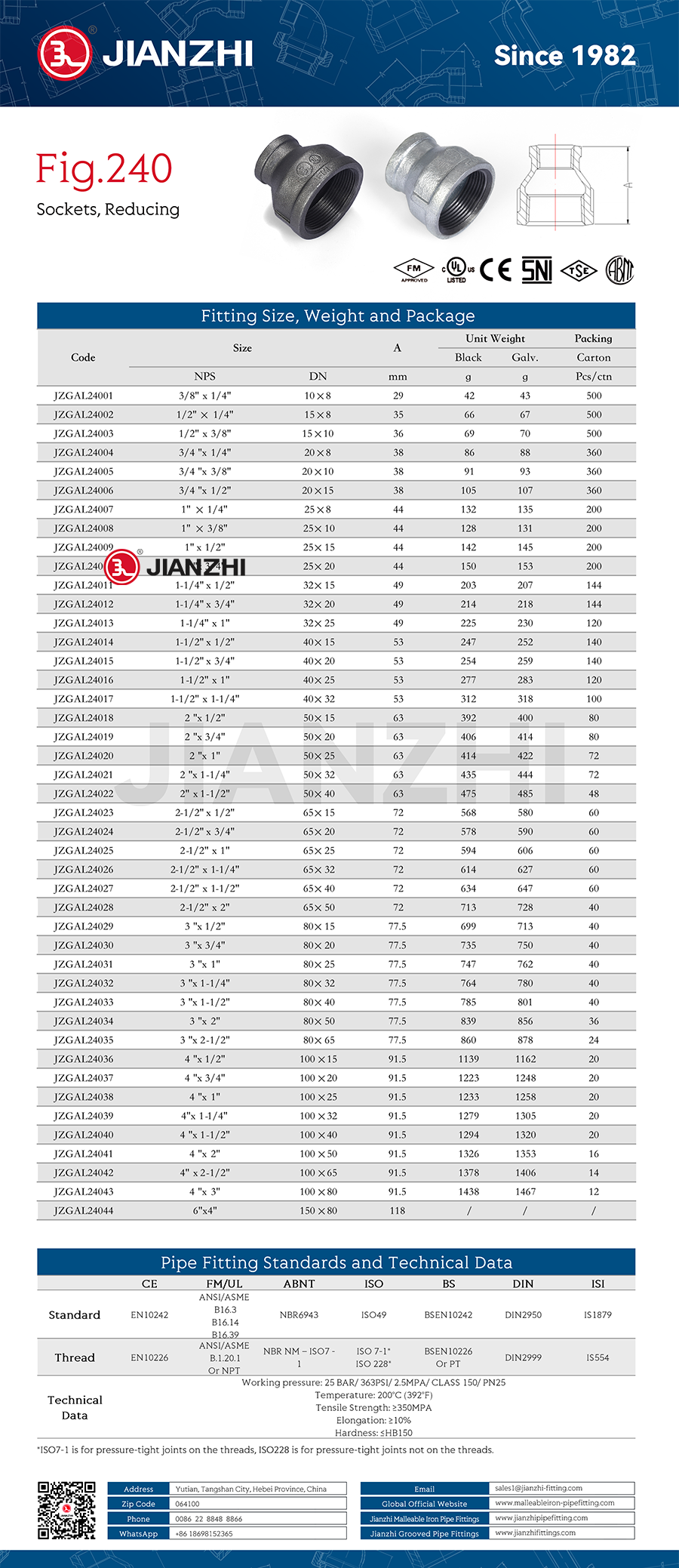

Product Dimensions

Gas Pipe Fittings Socket Reducing Fig.240

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

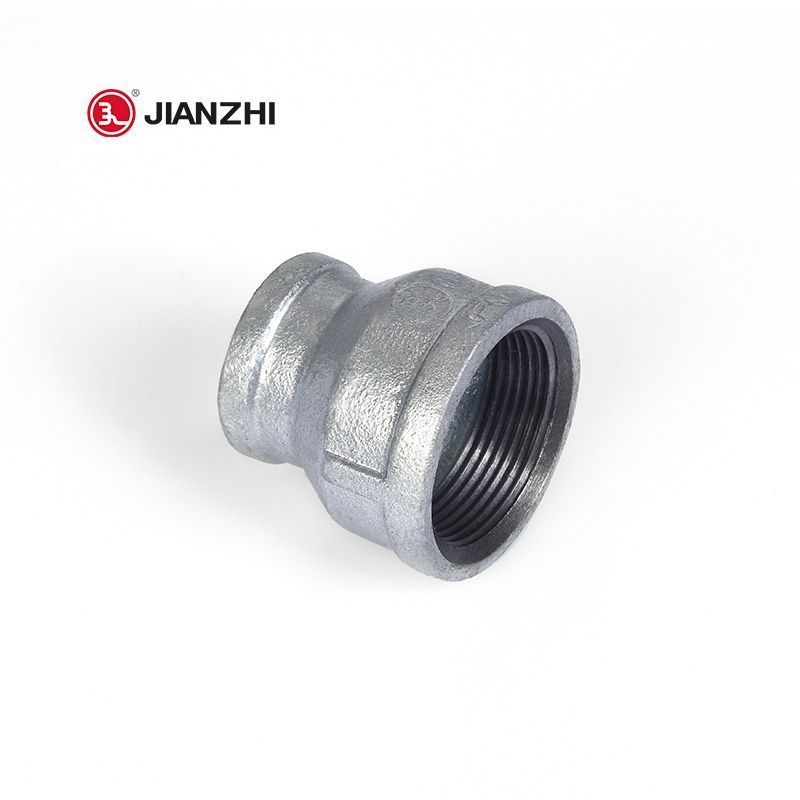

Coupling, also called socket or collar. It made of malleable iron, casting processing. Hot galvanizing treatment is normally used on the surface of the socket, JIANZHI Socket has a thickness of zinc layer is more than 80 um, which has good rust prevention and anti-corrosion effect. Warranty for more than 50 years.

At the moment, it is a commonly used fitting in industrial pipeline systems. A pipe clamp is a short pipe used to connect two pipes. The reducer coupling can connect pipelines of two different dimensions. Because of its convenient use, it is widely used in civil construction, industry, agriculture, and other fields.
