Size: 3/8''-2''(DN10-DN50)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
Tips: Fitting size and normal sizes(DN)
| Fitting size | Normal size (DN) |
| 1/8 | 6 |
| 1/4 | 8 |
| 3/8 | 10 |
| 1/2 | 15 |
| 3/4 | 20 |
| 1 | 25 |
| 1 1/4 | 32 |
| 1 1/2 | 40 |
| 2 | 50 |
| 2 1/2 | 65 |
| 3 | 80 |
| 4 | 100 |
| 5 | 125 |
| 6 | 150 |

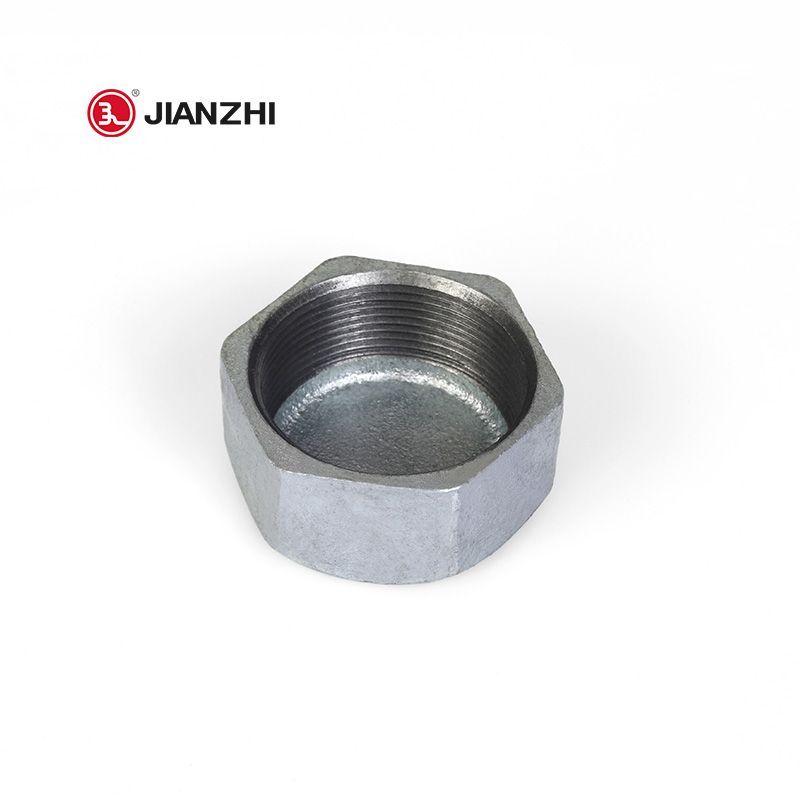

Threaded fitting with female thread for the permanent or temporary closing of the hole tightly when installing steel pipes in water and gas supply systems using a seal.
The use of cast iron threaded fittings is not only the maximum reliability of the connection points but also an increased service life of the entire pipeline system in the compartment, protecting against accidental leaks, breaks, and depressurization.

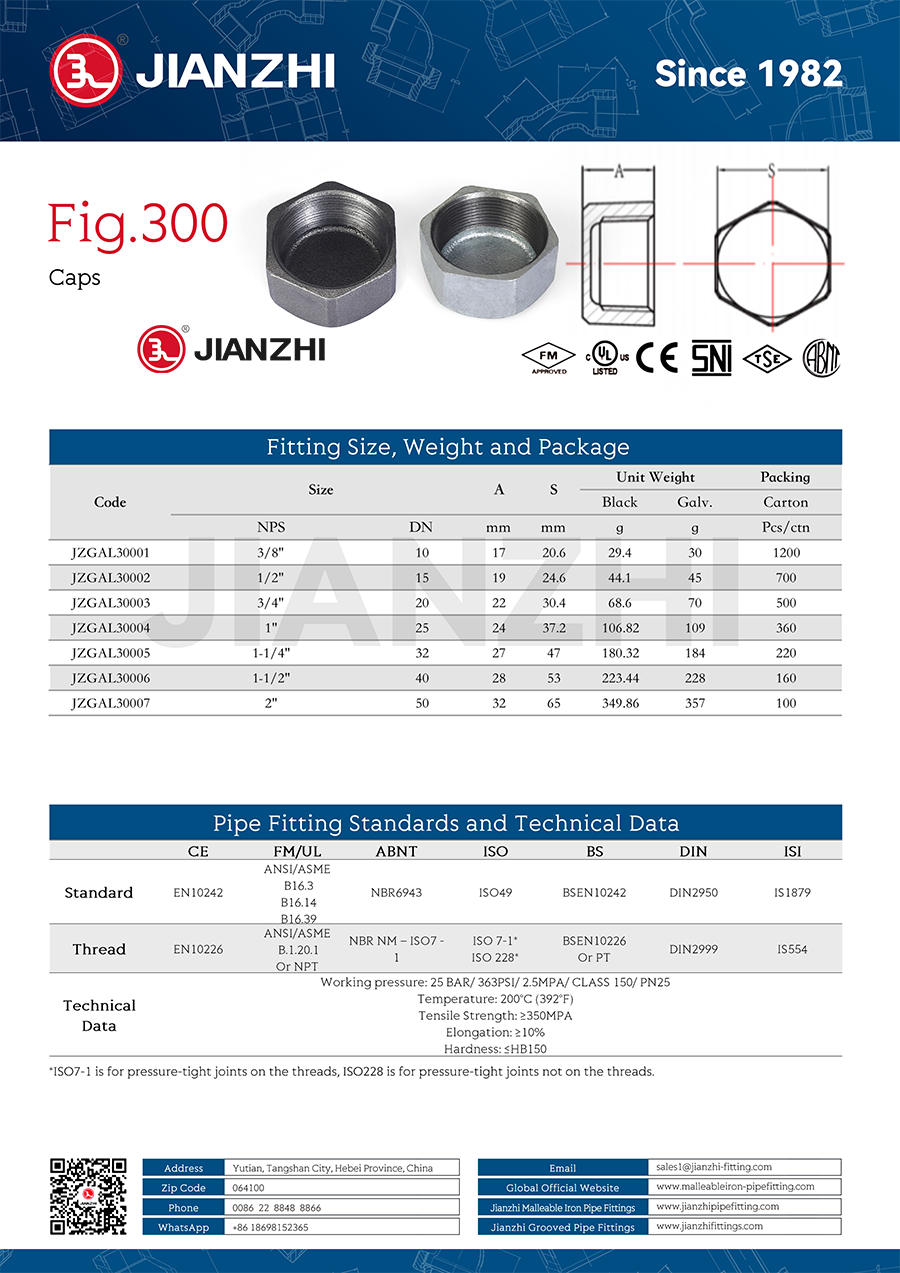

Product Dimensions
