Cast Iron Pipe Fittings Galvanized Plug Beaded Fig.290

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Cast Iron Pipe Fittings Galvanized Plug Beaded Fig.290

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

Do you know?

EN 10226 standard asks the thread turns of the internal thread must be ±1 1/4 to ±1 1/2, Jianzhi keeps the internal thread below ±1.

Galvanized cast iron connections are often used not only in hot and cold water supply systems, steam, and centralized heating systems but also in low-pressure gas pipelines, irrigation systems, etc. Cast iron fittings are able to provide maximum reliability for each threaded connection, practically eliminating the occurrence of various malfunctions in the piping system. In order to reduce the cost of the pipeline system, galvanized fittings are widely used as a reliable alternative to brass fittings without losing the reliability of the entire system.

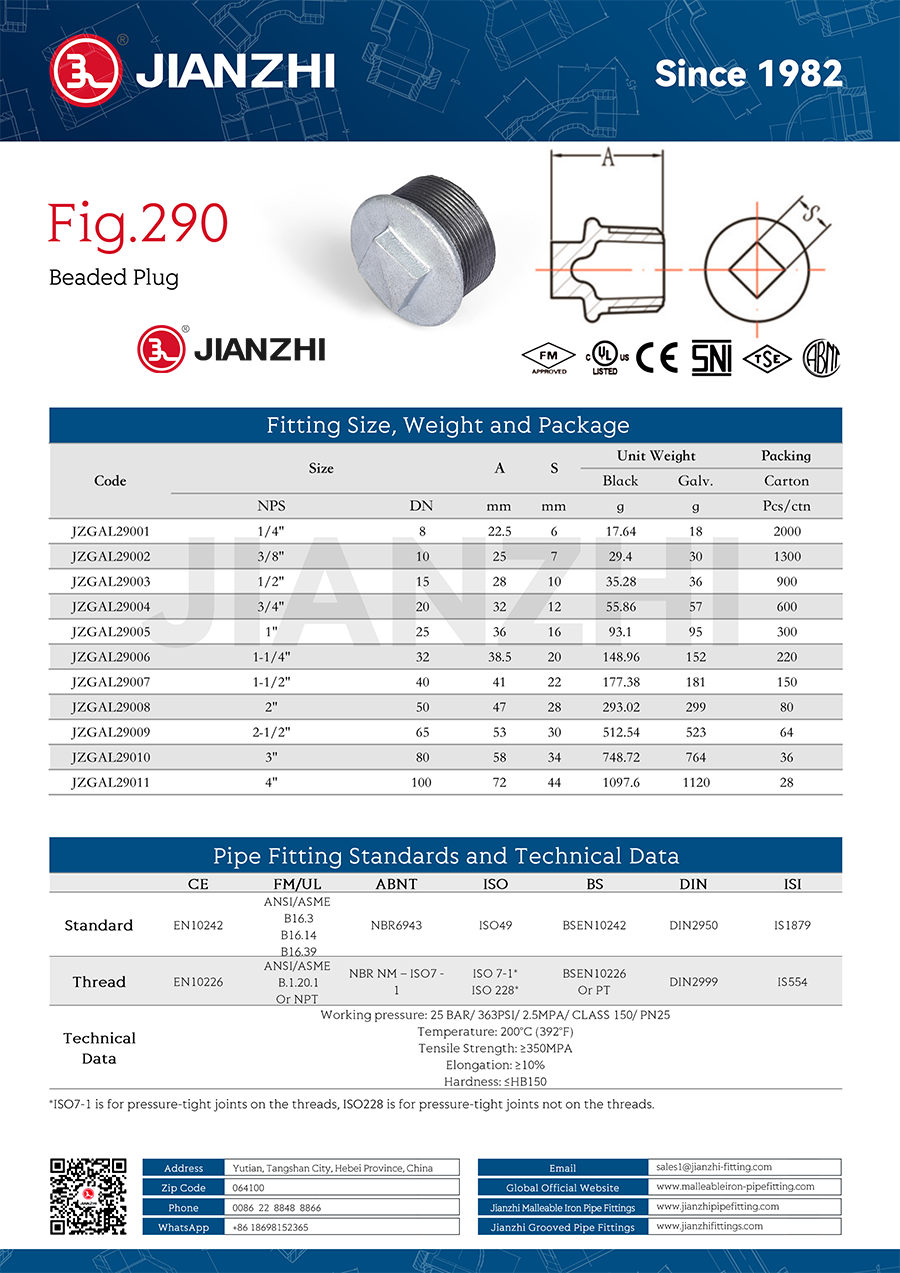

Product Dimensions

Cast Iron Pipe Fittings Galvanized Plug Beaded Fig.290
