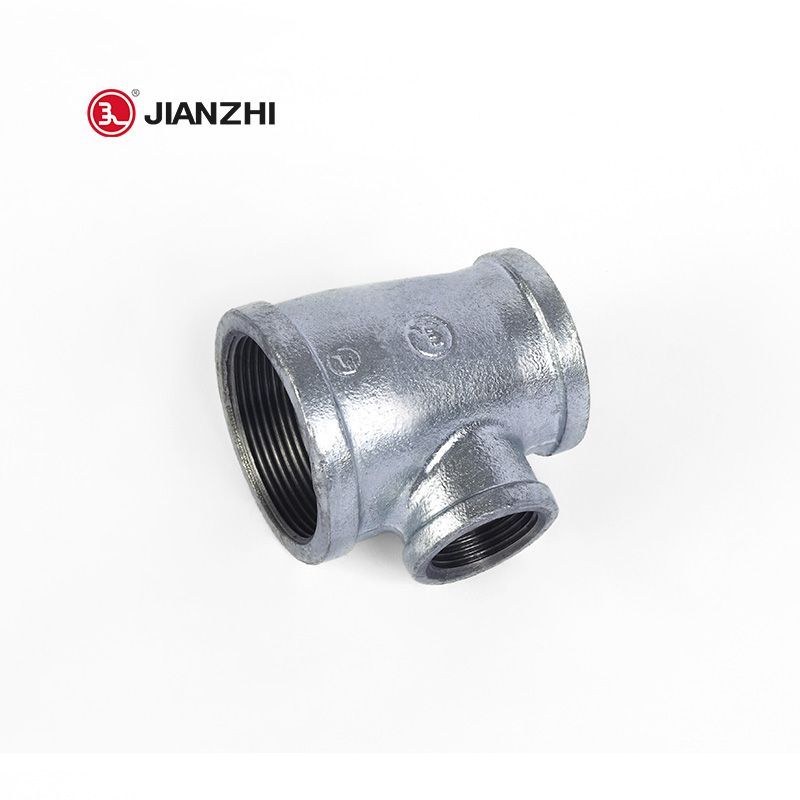

Plumbing Fittings Tee Reducing Fig.131R

Plumbing Fittings Tee Reducing Fig.131R

Size: 1/2x1/2x3/4-3x2-1/2x2-1/2(DN15x15x20-DN80x60x60)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

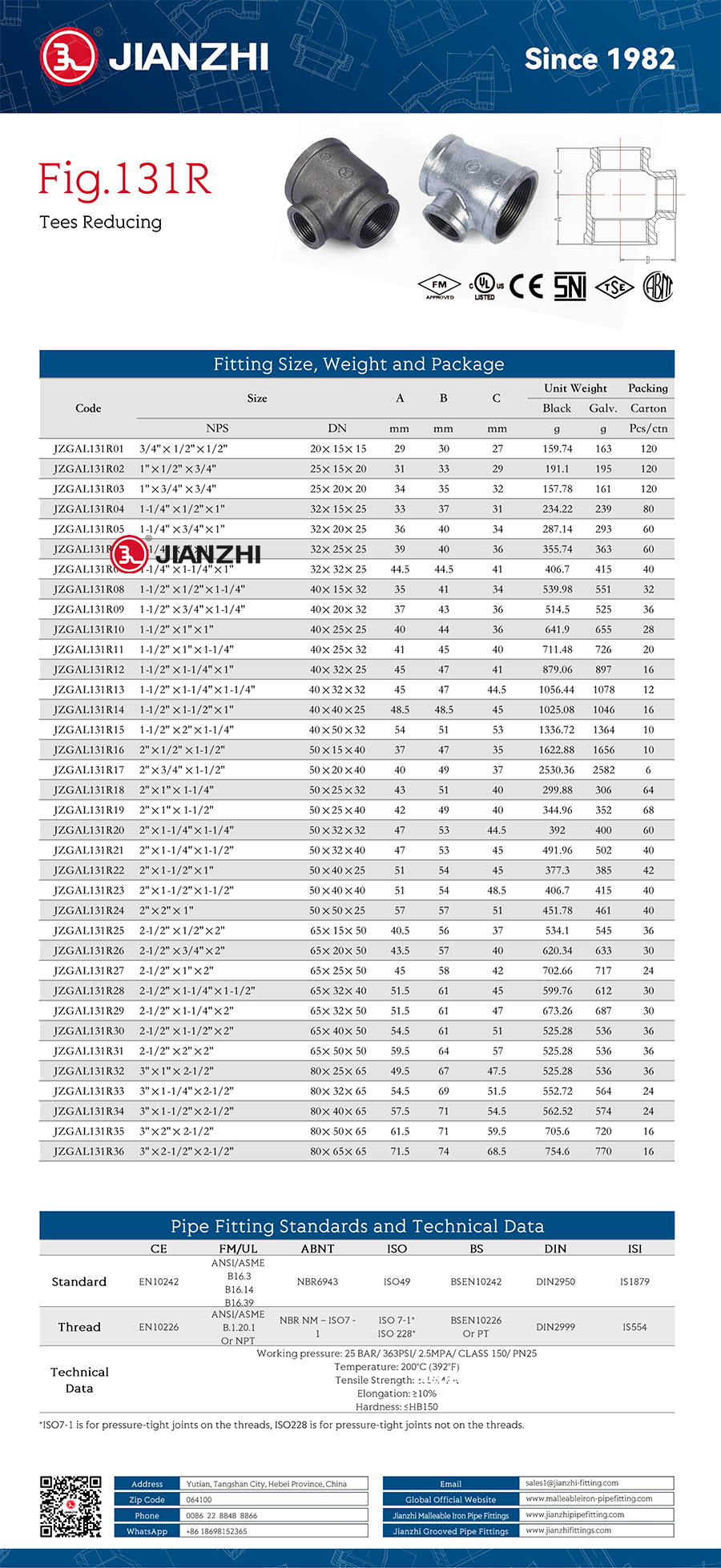

Product Dimensions

Plumbing Fittings Tee Reducing Fig.131R

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Regarding 131R Tee Reducing, the sizes of the three branch pipes are different. This type of reducing diameter is used in the fluid system to change the fluid size of the main pipe and at the same time change the fluid size of the branch pipe.
