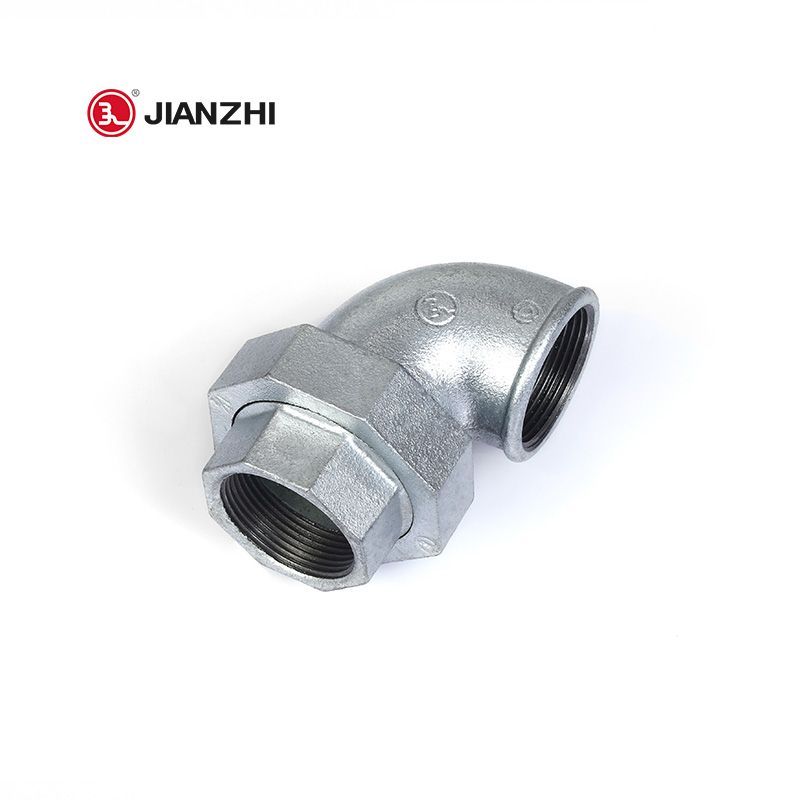

GI Pipe Union Elbows Conical Seat Fig.96

GI Pipe Union Elbows Conical Seat Fig.96

Size: 1/2''-2''(DN15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Product Dimensions

GI Pipe Union Elbows Conical Seat Fig.96

SIZEin1/23/4111/411/22
mm152025324050
A27323744.548.557
B49.55764.574.58294

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

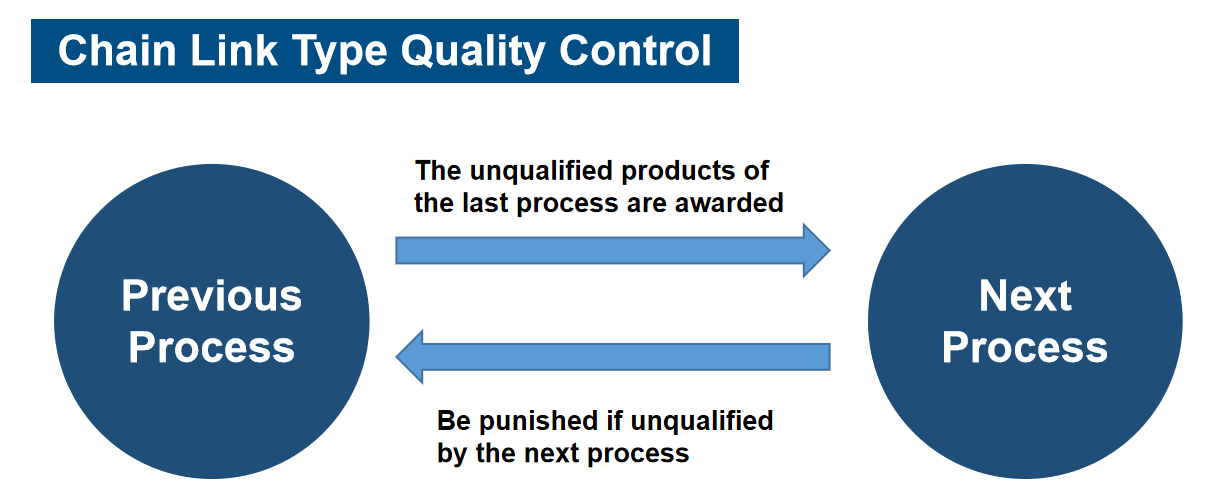

Jianzhi Group invented the "China Link Type Quality Management system", Obtaining the ministry of agriculture "Enterprise modern management first prize".All pipe fittings are strictly inspected at each procedure. The mutual inspection would be taken at each production process, ring by ring, every worker will be a quality inspector. If they find unqualified products from the last production process they will get awards, of course, upper process workers who let unqualified products go to the next procedure will be punished.

The market refund rate has always been kept below one in 400,000.00.

GI Pipe Union Elbows Conical Seat Fig.96

Therefore, Jianzhi guarantees the quality inspection before delivery. The compensation terms of Jianzhi are the highest in the same industry.

GI Pipe Union Elbows Conical Seat Fig.96

Customer reorder rate exceeds 99.8%!
