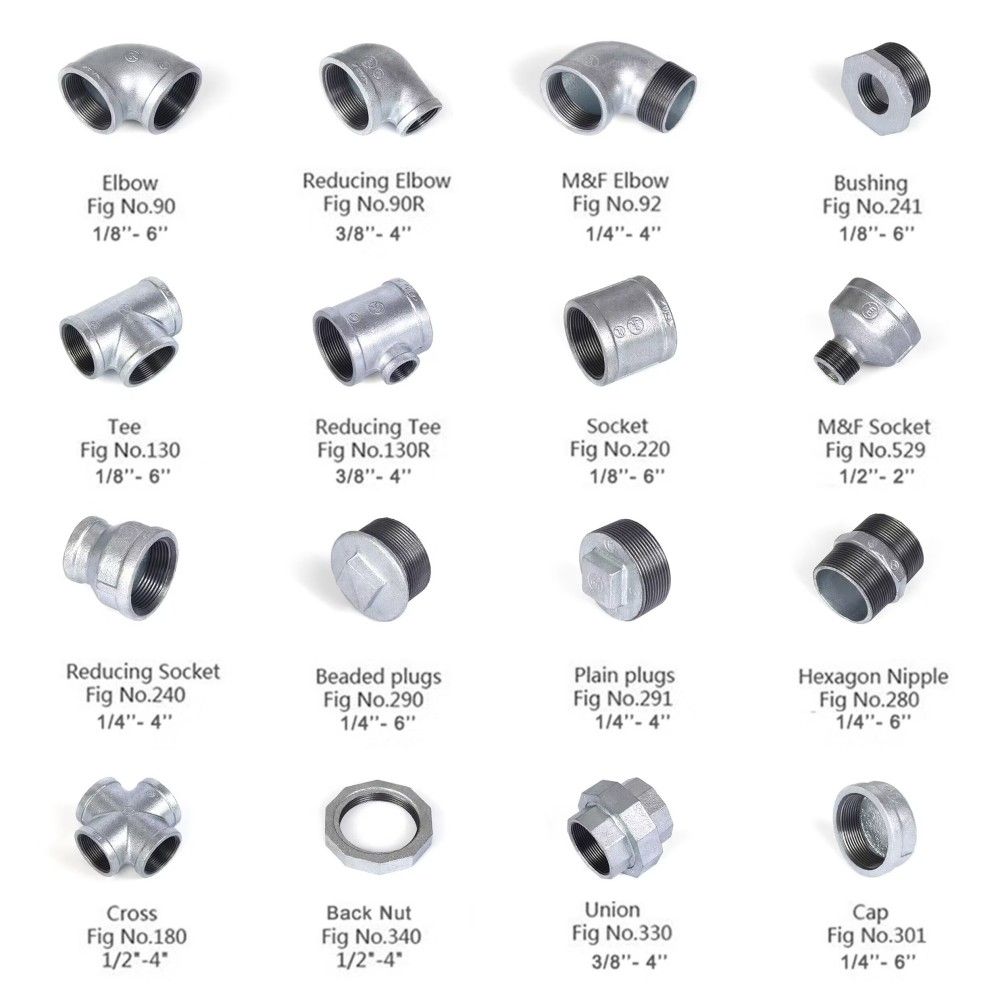

Galvanized Pipe Fittings

Plumbing Pipe Fittings Flat Seat Union Fig.330

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

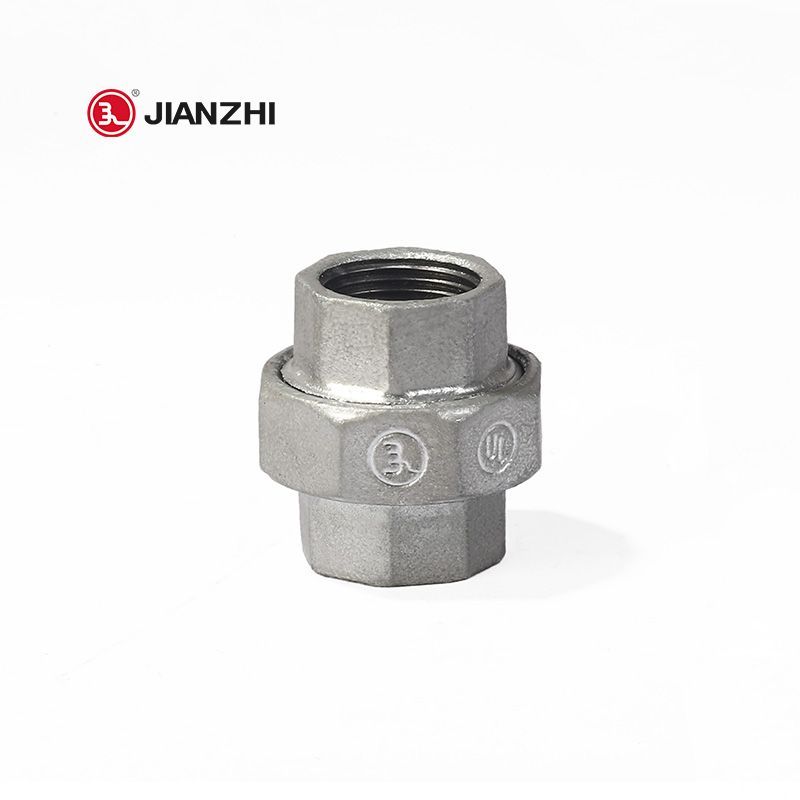

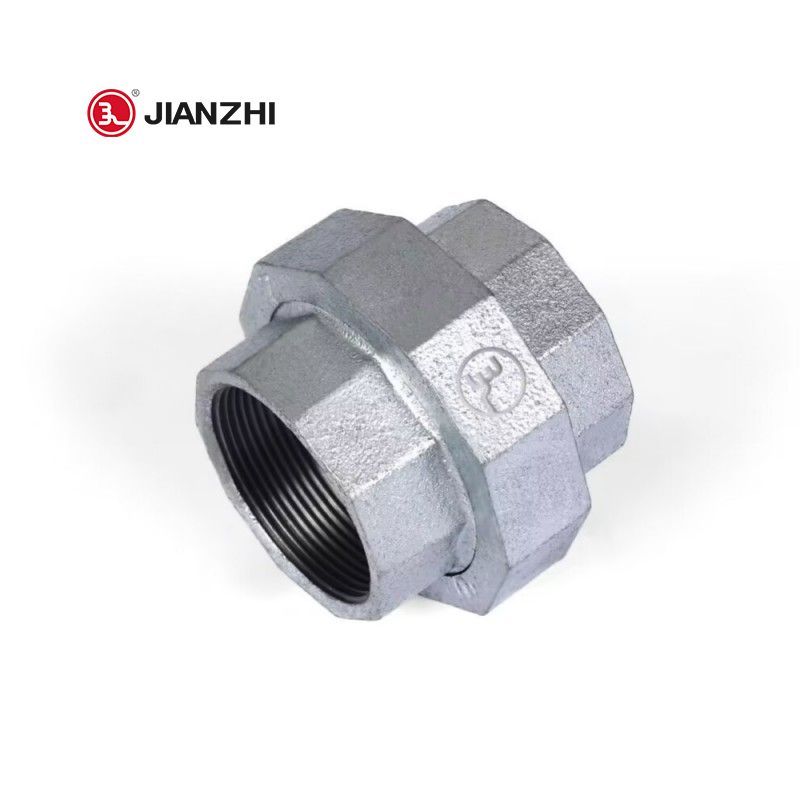

Plumbing Pipe Fittings Flat Seat Union Fig.330

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


The union can be widely used in pipes of different diameters, water meters, and valves. Due to the use of socket structure, the cost of the pipe joint is reduced, and the installation, use, and maintenance are very convenient. At the same time, it also has a very high leak-proof ability, which has a great market prospect.


Advantages:

1. The union has high strength and good ductility.

2. The connection is convenient, fast, and easy to operate.

3. The detection is convenient and intuitive.

4. Construction connection without electricity, no gas, no open fire operation, no oil leakage, no pollution, rain or wind, all-weather construction.

5. It has strong applicability and can be operated flexibly in places with dense reinforcement arrangements in narrow and small sites.

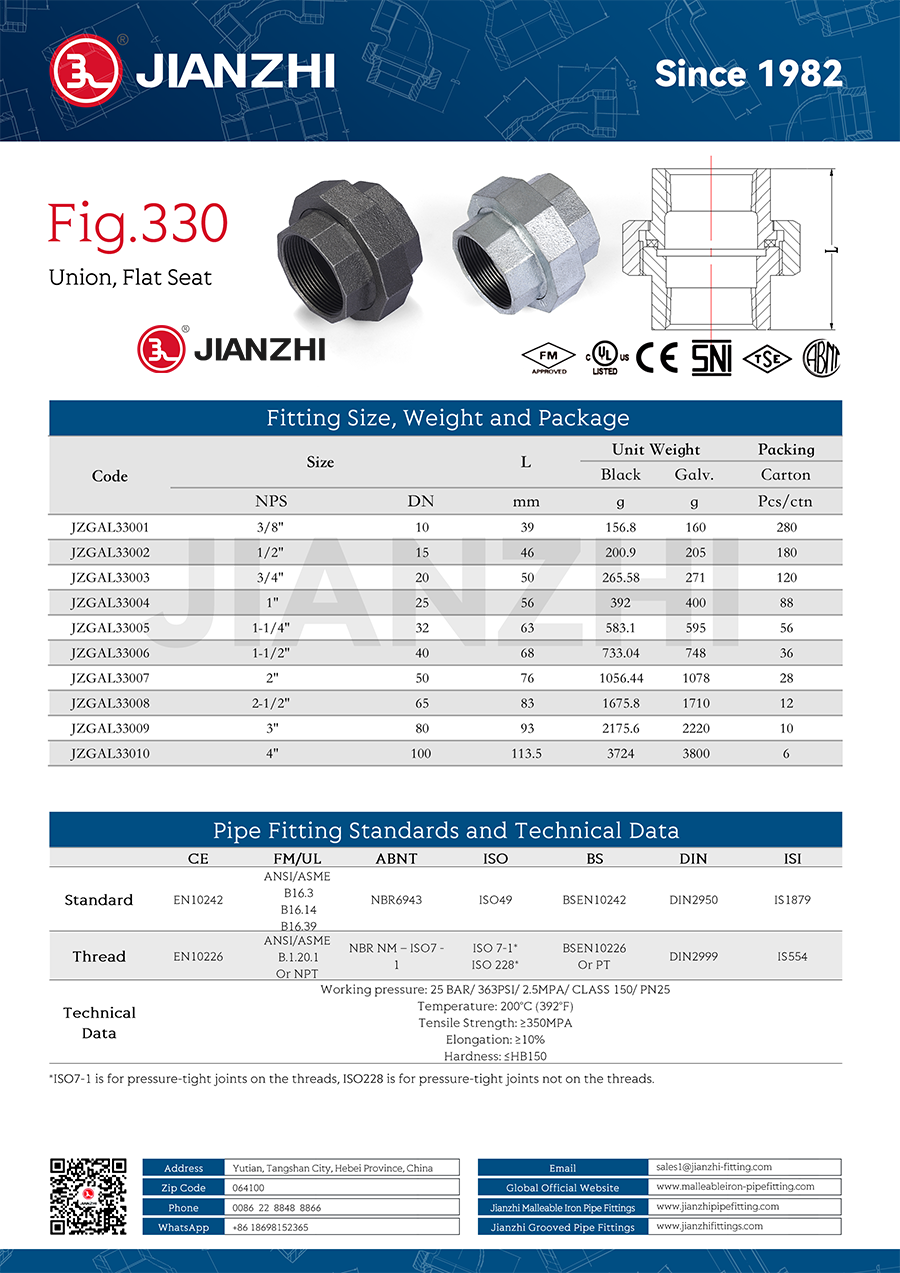

Product Dimensions

Flat Seat Union

Flat Seat Union details

3/8 inch Flat Seat Union3/8 inch Flat Seat Union
1/2 inch Flat Seat Union1/2 inch Flat Seat Union
3/4 inch Flat Seat Union3/4 inch Flat Seat Union
1 inch Flat Seat Union1 inch Flat Seat Union
1¼ inch Flat Seat Union1¼ inch Flat Seat Union
