Home / Products / Galvanized Pipe Fittings / OEM Malleable Iron Plumbing Fittings Fig. 85

  • OEM Malleable Iron Plumbing Fittings Fig. 85

  • OEM Malleable Iron Plumbing Fittings Fig. 85

  • OEM Malleable Iron Plumbing Fittings Fig. 85

  • OEM Malleable Iron Plumbing Fittings Fig. 85

  • OEM Malleable Iron Plumbing Fittings Fig. 85

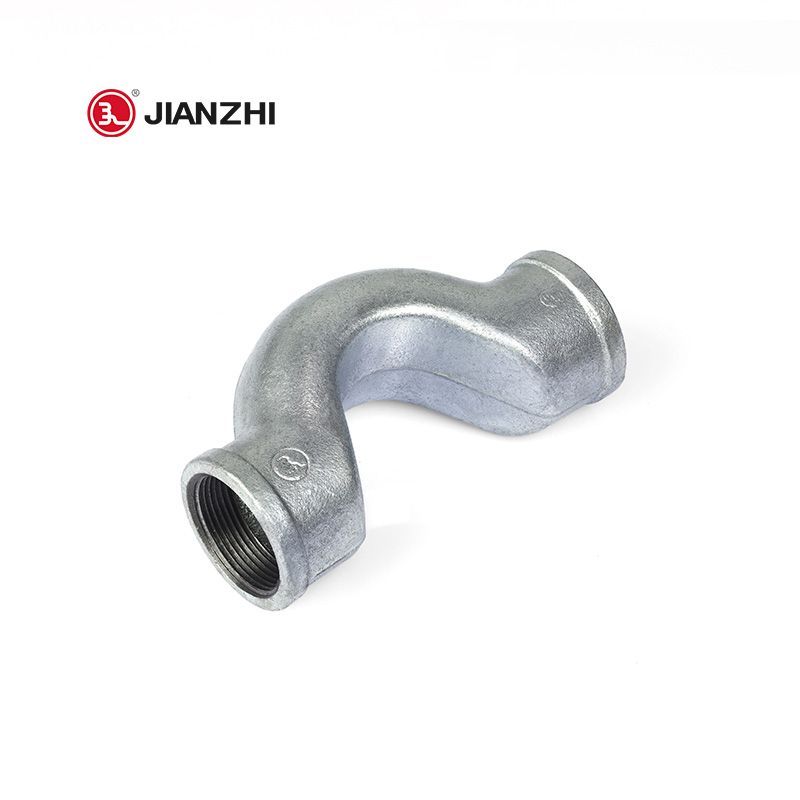

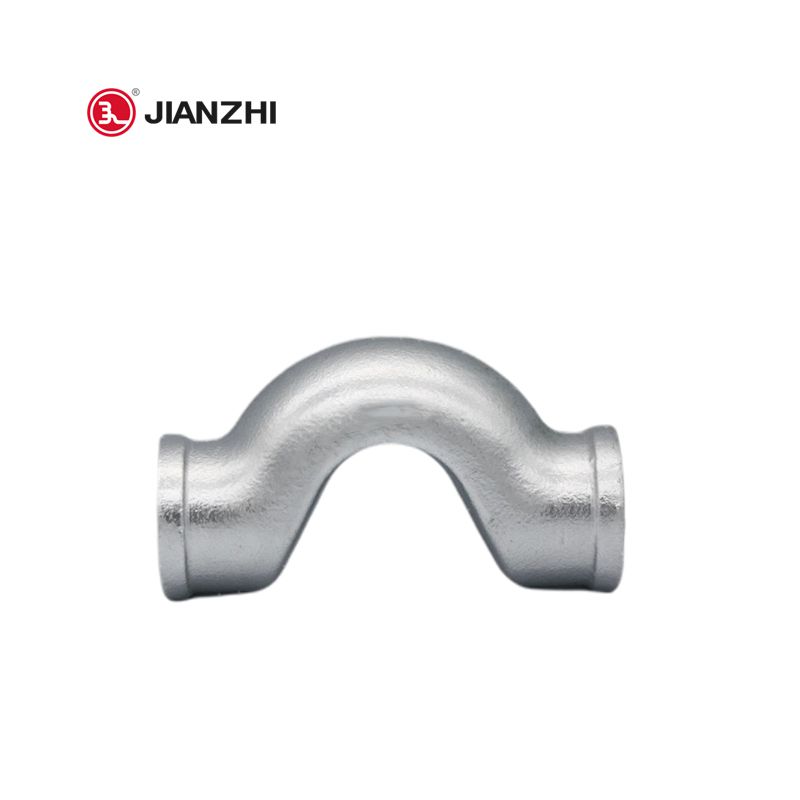

OEM Malleable Iron Plumbing Fittings Fig. 85

OEM Malleable Iron Plumbing Fittings Fig. 85

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

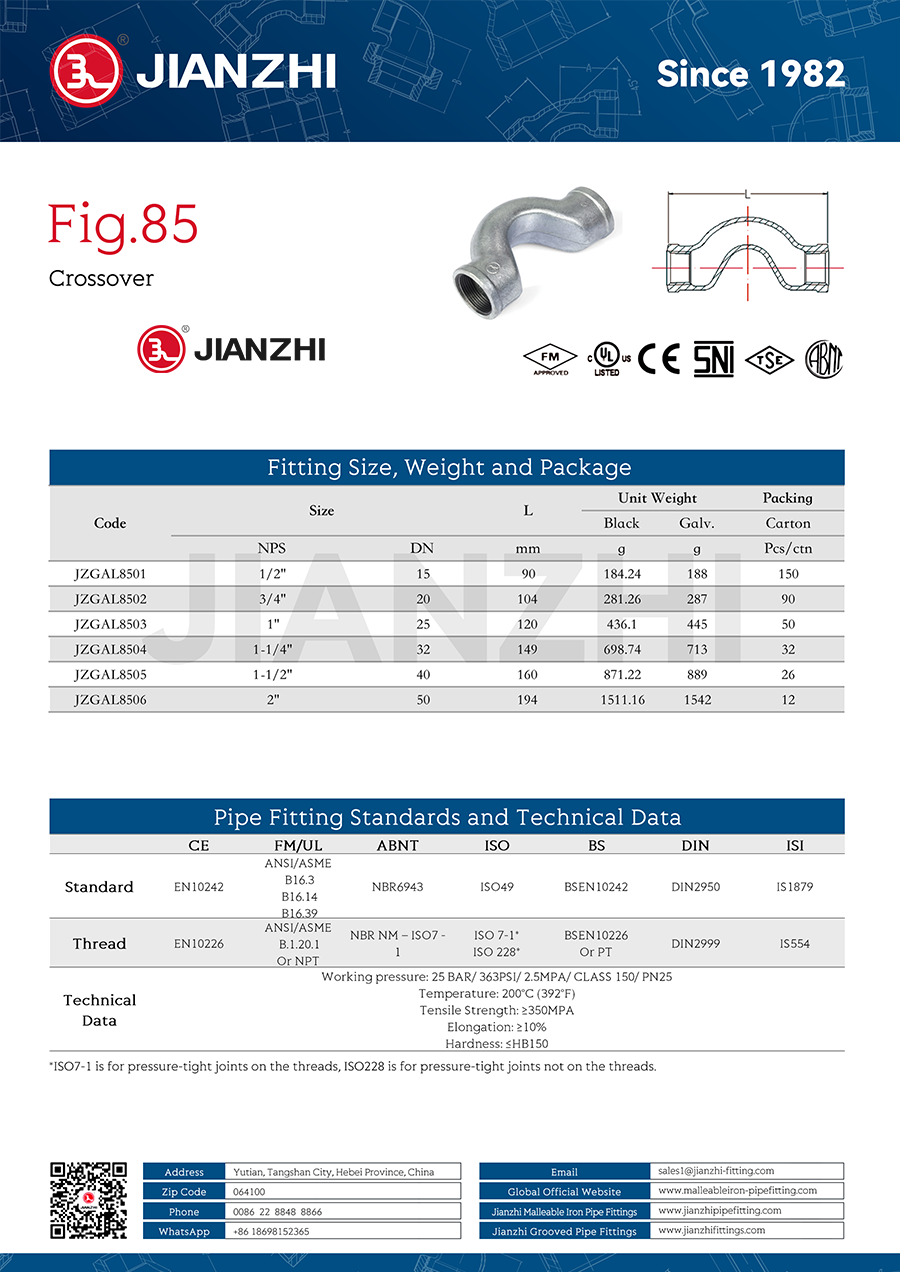

Product Dimensions

OEM Malleable Iron Plumbing Fittings Fig. 85

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron
