Galvanized Pipe Fittings

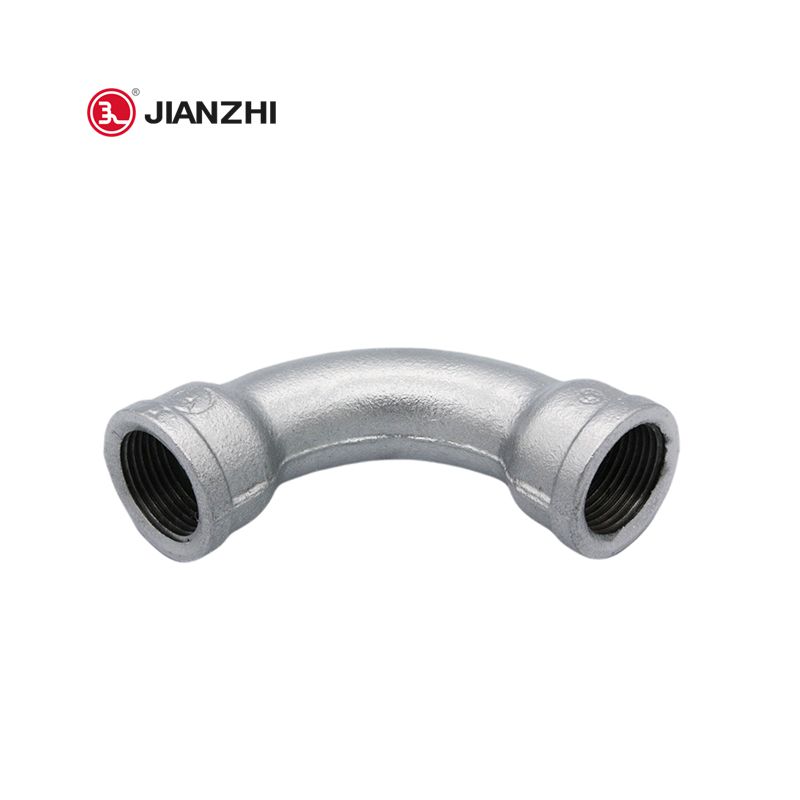

Female Bend 90 Degree Fig.2

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

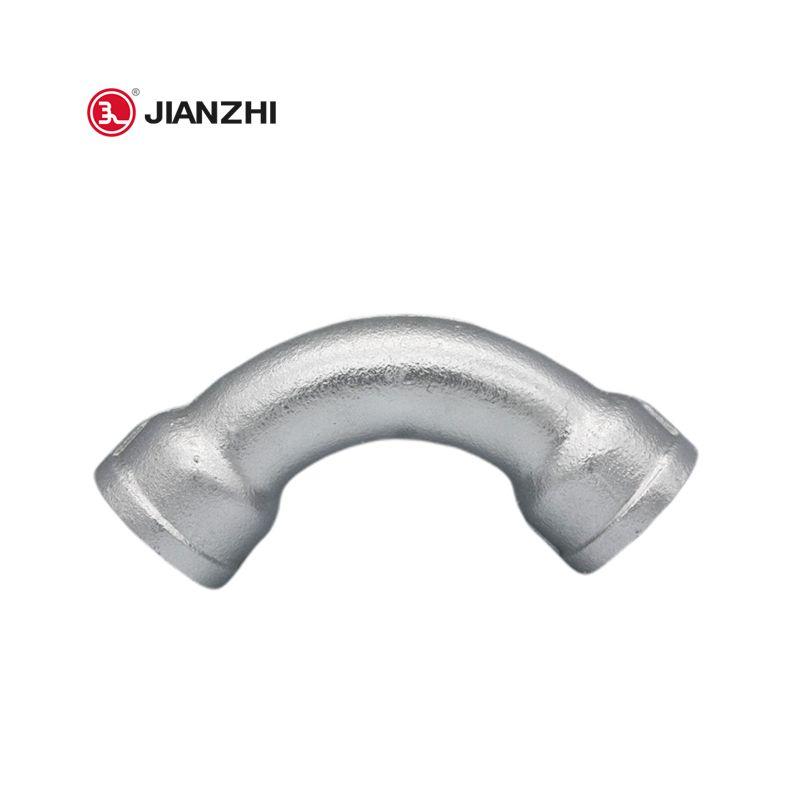

Female Bend 90 Degree Fig.2

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

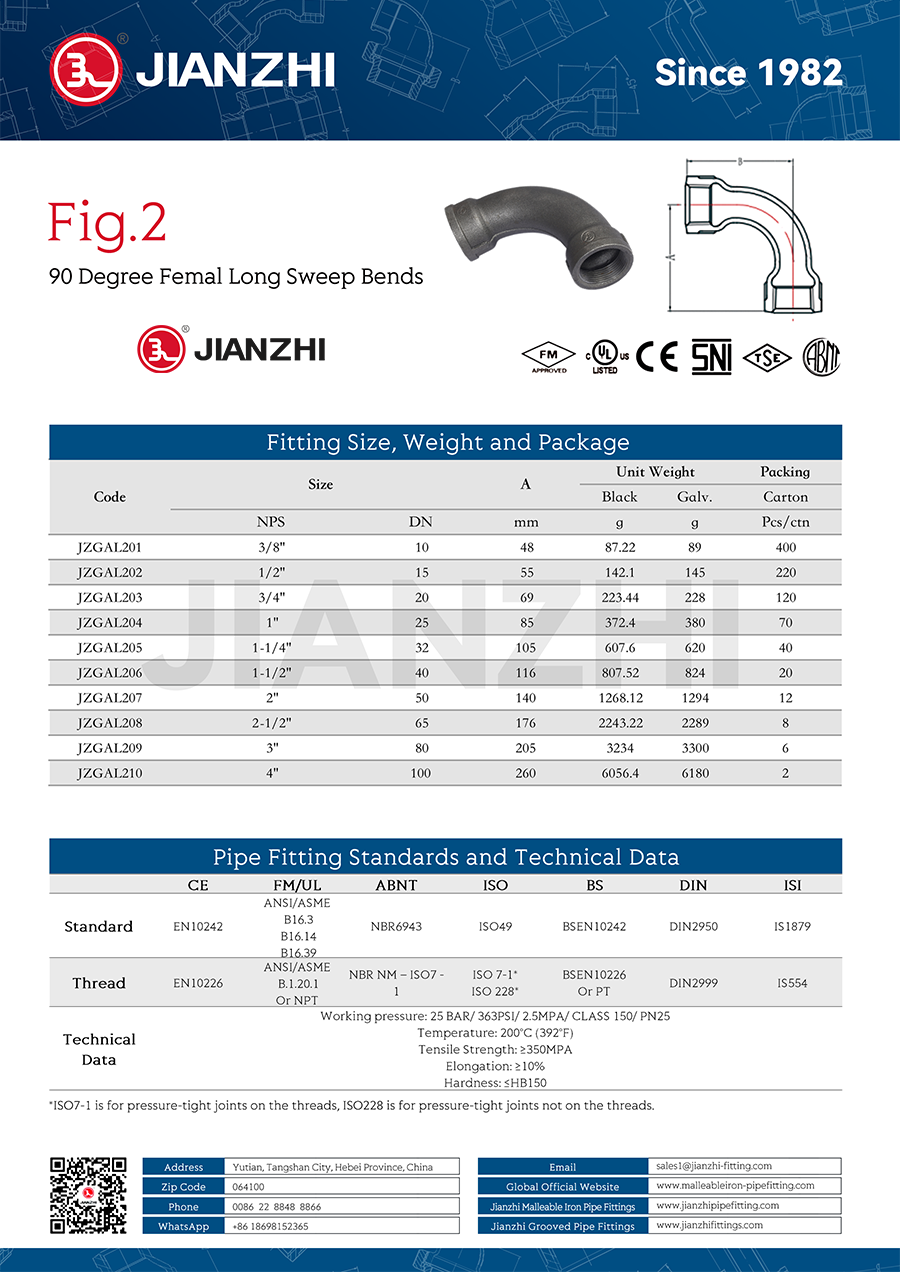

Product Dimensions

Bend refers to the pipe fittings that change the direction of the pipeline in the pipeline system. Elbow by angle, there are 45 °, 90 °, 180 ° three most commonly used, this product is 90 degrees of the female bend, mainly used in plumbing system installation. Bend female in addition to corrosion resistance, but also has excellent mechanical resistance to compression, traction and bending stress.

Female Bend 90 Degree Fig.2

We are a professional manufacturer of malleable iron parts, if you have questions, please contact us.
