Difference between equal tee and reducing tee

Jan. 11, 2022

Tee is also called pipe fitting tee or tee fitting or tee joint. The pipe fitting tee can change the fluid direction and branch out of the main pipeline. Usually, we can classify all tees according to the pipe diameter. The primary raw material includes malleable iron tee, ductile iron tee, carbon steel tee, cast steel tee, alloy steel tee, stainless steel tee, copper tee, aluminium alloy tee, plastic tee, argon tee, asphalt tee, PVC tee and other materials.

Reducing tee:

The diameter is different from that of the other two branches. It is a reducing tee. Another reducing tee, the diameters of the three ports are different, also called reducing tee. The diameter of the branch pipe becomes smaller, which can increase the medium pressure of the branch pipe.

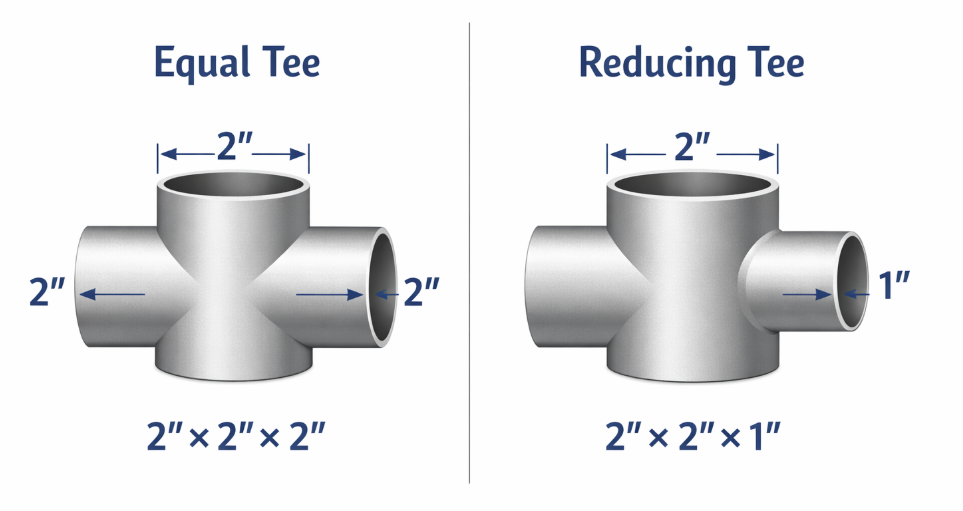

As shown in the figure below:

Reducing Tee, Type 1Reducing Tee, Type 2
Reducing Tee, Type 1   Reducing Tee, Type 2

 Reducing Tee DIMENSIONS

Nominal SizePipe O.DWorking PressureDimensionsCertificate
mm/inmm/inPSI/MpaL (mm/in)L1(mm/in)
50 × 2560.3 × 33.7300PSI
2.07MPa
363PSI
2.5MPa
5563
2 × 12.375 × 1.3152.165 2.480
50 × 3260.3 × 42.45963
2 × 1¼2.375 × 1.6602.323 2.480
50 × 4060.3 × 48.362 63
2 × 1½2.375 × 1.9002.441 2.480
65 × 4076.1 × 48.362 74
2½ × 1½3.000 × 1.9002.441 2.913
65 × 5076.1 × 60.366.5 74
2½ × 23.000 × 2.3752.618 2.913
80 × 5088.9 × 60.368.584FM UL
3 × 23.500 × 2.3752.697 3.307
80 × 6588.9 × 76.17484FM UL 3C
3 × 2½3.500 × 3.0002.913 3.307
100 × 50108.0 × 60.368.596
4 × 24.250 × 2.3752.697 3.780
100 × 65108.0 × 76.17496
4 × 2½4.250 × 3.0002.913 3.780
100 × 80108.0 × 88.98496
4 × 34.250 × 3.5003.307 3.780
100 × 40114.3 × 48.366 97 FM UL
4 × 1½4.500 × 1.9002.598 3.819
100 × 50114.3 × 60.368.596FM UL
4 × 24.500 × 2.3752.697 3.780
100 × 65114.3 × 76.17496FM UL 3C
4 × 2½4.500 × 3.0002.913 3.780
100 × 80114.3 × 88.98496FM UL 3C
4 × 34.500 × 3.5003.307 3.780
125 × 65133.0 × 76.174113
5 × 2½5.250 × 3.0002.913 4.449
125 × 80133.0 × 88.984113
5 × 35.250 × 3.5003.307 4.449
125 × 100133.0 × 108.098113
5 × 45.250 × 4.2503.858 4.449
125 × 100133.0 × 114.398113
5 × 45.250 × 4.5003.858 4.449
125 × 65139.7 × 76.174113FM UL
5 × 2½5.500 × 3.0002.913 4.449
125 × 80139.7 × 88.984113FM UL
5 × 35.500 × 3.5003.307 4.449
125 × 100139.7 × 114.398113FM UL 3C
5 × 45.500 × 4.5003.858 4.449
150 × 65159.0 × 76.174122
6 × 2½6.250 × 3.0002.913 4.803
150 × 80159.0 × 88.984122
6 × 36.250 × 3.5003.307 4.803
150 × 100159.0 × 108.098122
6 × 46.250 × 4.2503.858 4.803
150 × 100159.0 × 114.3102122FM UL 3C
6 × 46.250 × 4.5004.016 4.803
150 × 125159.0 × 133.0111122
6 × 56.250 × 5.2504.370 4.803
150 × 125159.0 × 139.7114128
6 × 56.250 × 5.5004.488 5.039
150 × 65165.1 × 76.178 126 FM UL 3C
6 × 2½6.500 × 3.0003.071 4.961
150 × 80165.1 × 88.984126FM UL
6 × 36.500 × 3.5003.307 4.961
150 × 100165.1 × 114.3102122FM UL 3C
6 × 46.500 × 4.5004.016 4.803
150 × 125165.1 × 139.7114128FM UL
6 × 56.500 × 5.5004.488 5.039
200 × 65219.1 × 76.187.5155FM UL
8 × 2½8.625 × 3.0003.445 6.102
200 × 80219.1 × 88.994.5155FM UL
8 × 38.625 × 3.5003.720 6.102
200 × 100219.1 × 108.0103149
8 × 48.625 × 4.2504.055 5.866
200 × 100219.1 × 114.3103149FM UL 3C
8 × 48.625 × 4.5004.055 5.866
200 × 125219.1 × 133.0118156
8 × 58.625 × 5.2504.646 6.142
200 × 125219.1 × 139.7118156
8 × 58.625 × 5.5004.646 6.142
200 × 150219.1 × 159.0124158FM UL
8 × 68.625 × 5.5004.882 6.220
200 × 150219.1 × 165.1133158FM UL
8 × 68.625 × 6.5005.236 6.220
250 × 100273.0 × 114.3225PSI
1.6MPa
136 186
10 × 410.75 × 4.2505.354 7.323
250 × 150273.0 × 165.1136 186
10 × 610.75 × 6.5005.354 7.323
250 × 200273.0 × 219.1165 190
10 × 810.750 × 8.6256.496 7.480
300 × 200323.9 × 219.1165215
12 × 812.750 × 8.6256.496 8.465
300 × 250323.9 × 273.0192215UL
12 × 1012.750 × 10.7507.559 8.465



Equal tee:

The diameter is the same as that of the other two branch pipes. It is an equal tee.

As shown in the figure below:



Galvanized Equal TeeBlack Equal Tee
Galvanized Equal Tee Black Equal Tee

 Equal Tee DIMENSIONS

Nominal SizePipe O.DWorking PressureDimensionsCertificate
mm/inmm/inPSI/MpaL (mm/in)
50    60.3300PSI
2.07MPa
363PSI
2.5MPa
68.5FM UL 3C
2    2.374 2.697
65    76.174FM UL 3C
2.996 2.913
80    88.984FM UL 3C
3    3.500 3.307
100    108.0 100FM UL
4    4.252 3.937
100    114.3100FM UL 3C
4    4.500 3.937
125    133.0 122
5    5.236 4.803
125    139.7122FM UL 3C
5    5.500 4.803
150    159.0 138FM UL 3C
6    6.260 5.433
150    165.1138FM UL 3C
6    6.500 5.433
200    219.1171FM UL 3C
8    8.626 6.732
250    273.0

212
10    10.748

8.346
300    323.9

242
12    12.752

9.528
250    273.0 225PSI
1.6MPa
363PSI
2.5MPa  225PSI
1.6MPa
212 UL
10    10.748 8.346
300    323.9 242UL
12    12.752 9.528


Application of TEE

Construction and maintenance of projects in the petrochemical industry, petroleum and natural gas, liquefied gas, chemical fertilizer, power plant, nuclear power, shipbuilding, papermaking, pharmacy, food hygiene, urban construction, and other industries of these projects have pipeline demands about the reducing tees and equal tee.

It is the application of TEE in the gas pipeline.



As a partner of China Gas Group, Jianzhi casting group is a significant supplier of gas pipelines in China. And is a member of the China Gas Association. If you have relevant requirements for gas pipeline equal tee and reducing tee, you are welcome to inquire.
