Black Pipe Fittings

Malleable Iron Plug Fig.290

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

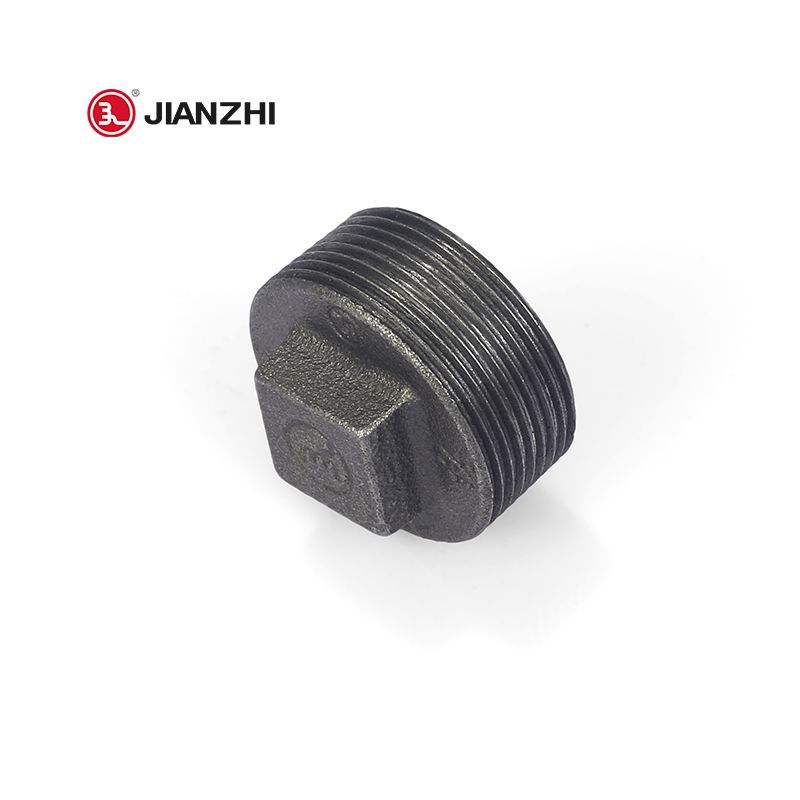

Malleable Iron Plug Fig.290

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


How to distinguish between a beaded plug and a plain plug, the beaded plug has a more obvious, prominent edge, and the plain plug does not have this kind of edge, so it is easy to distinguish between the beaded plug and the plain plug from the appearance.

From the effect of use, the appearance effect of a plain plug is better than that of the beaded plug, because a plain plug is easier to make the end of the pipe very smooth and integrated.

But from the perspective of installation, the beaded plug is better than the plain plug, because the beaded plug has a protruding edge, so it can avoid the problem of too much plug entering the pipe and unable to rotate out, or broken teeth, excessive rotation, so The installer prefers the beaded plug when installing, and the consumer prefers the appearance of the plain plug.

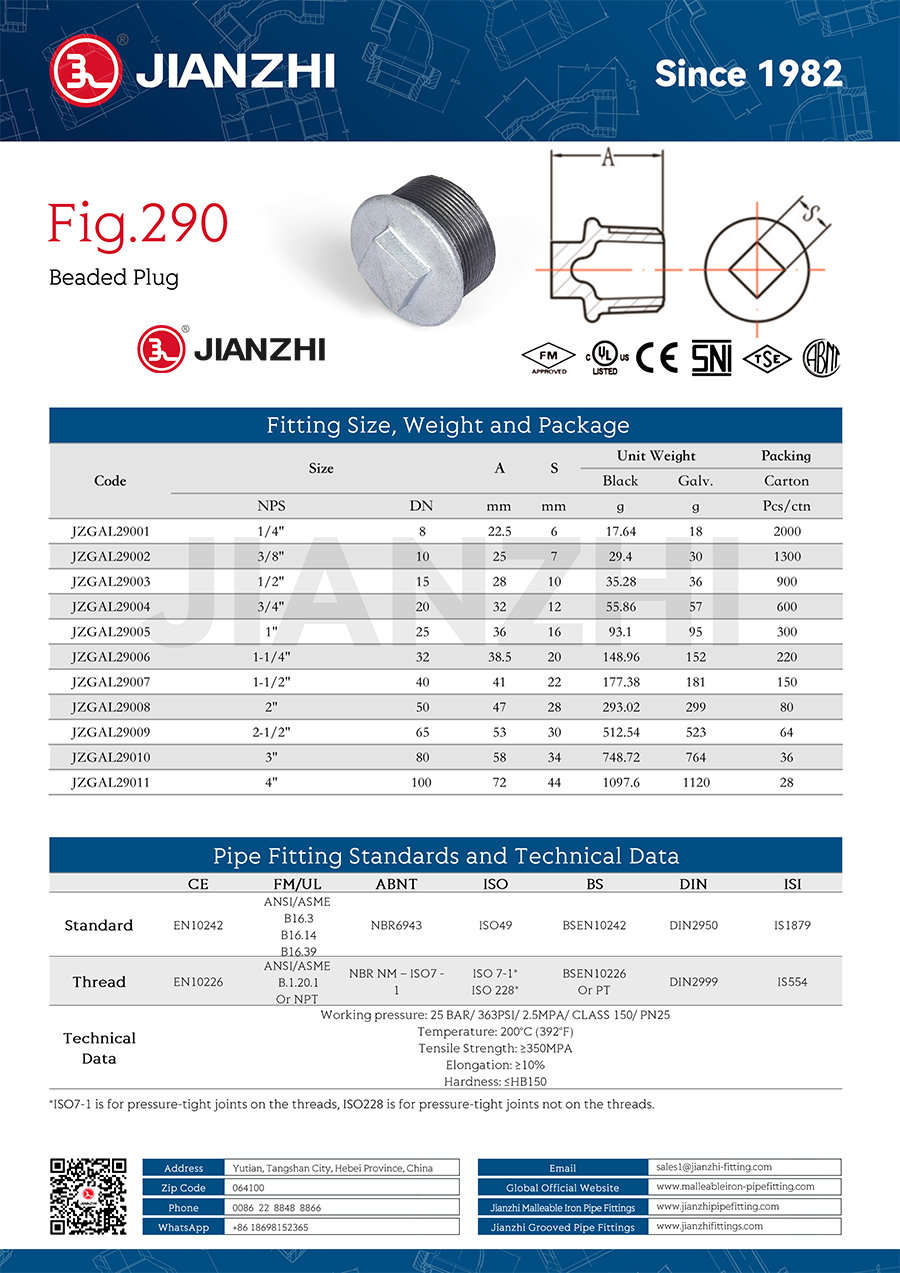

Product Dimensions

Malleable Iron Plug Fig.290
