Black Pipe Fittings

Black Malleable Iron Threaded Fittings Hex Bushing Fig. 241

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

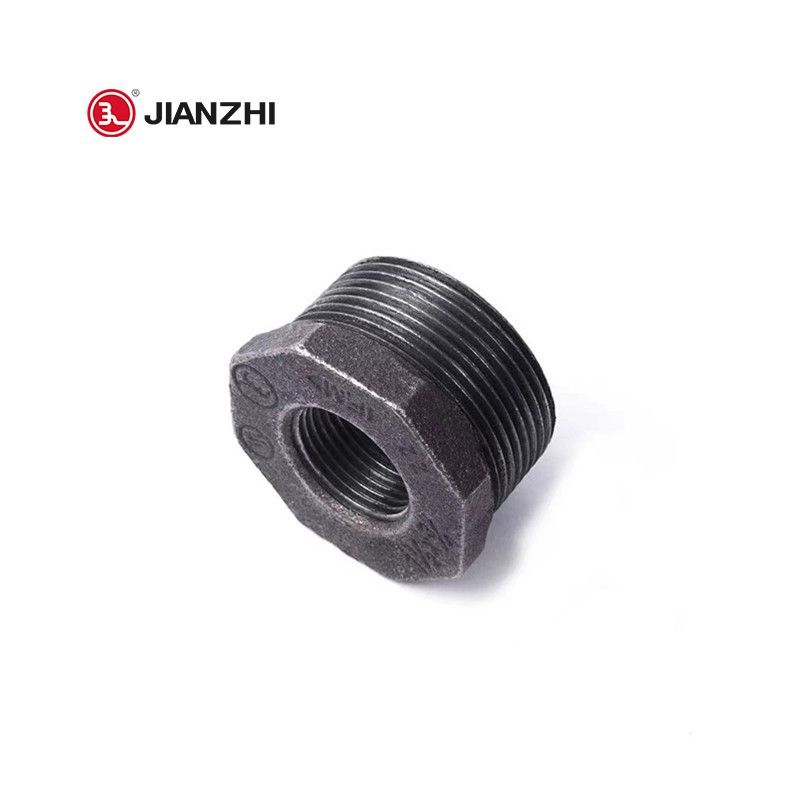

Black Malleable Iron Threaded Fittings Hex Bushing Fig. 241

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Bushings are used when the pipe needs to be reduced in diameter. For example, a DN15 water pipe needs to be reduced to a DN20 water pipe. The DN15 water pipe is an outer wire tube, which is connected to one end of the core inner wire. The DN20 water pipe is an inner wire pipe, which is connected to one end of the core outer wire. If the DN20 water pipe is an outer wire tube, an inner wire shrinkage can be connected between the DN20 outer wire tube and the core filler. The threaded connection can be easily connected with any water appliance and valve meter. Industry. Life is often used to connect the internal and external threads (teeth) of the pipe to change the size of the pipe diameter.

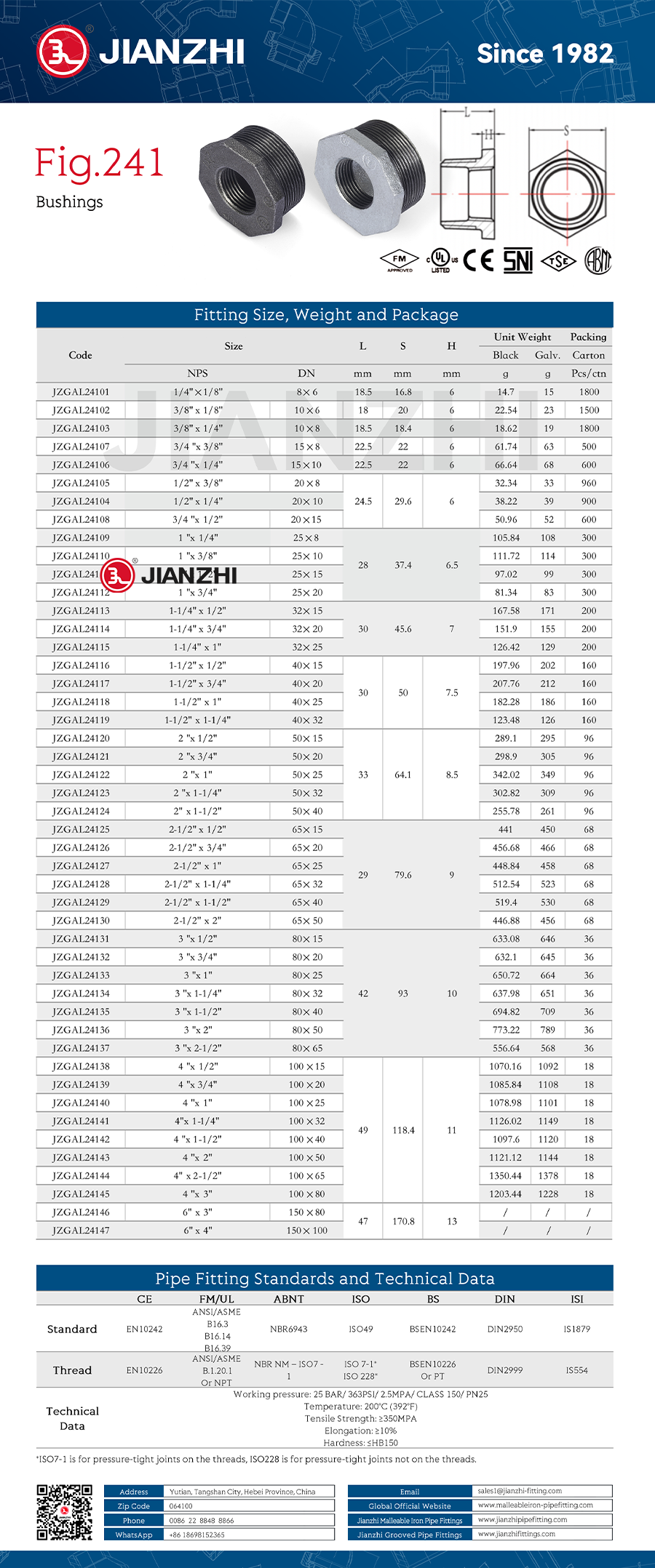

Product Dimensions

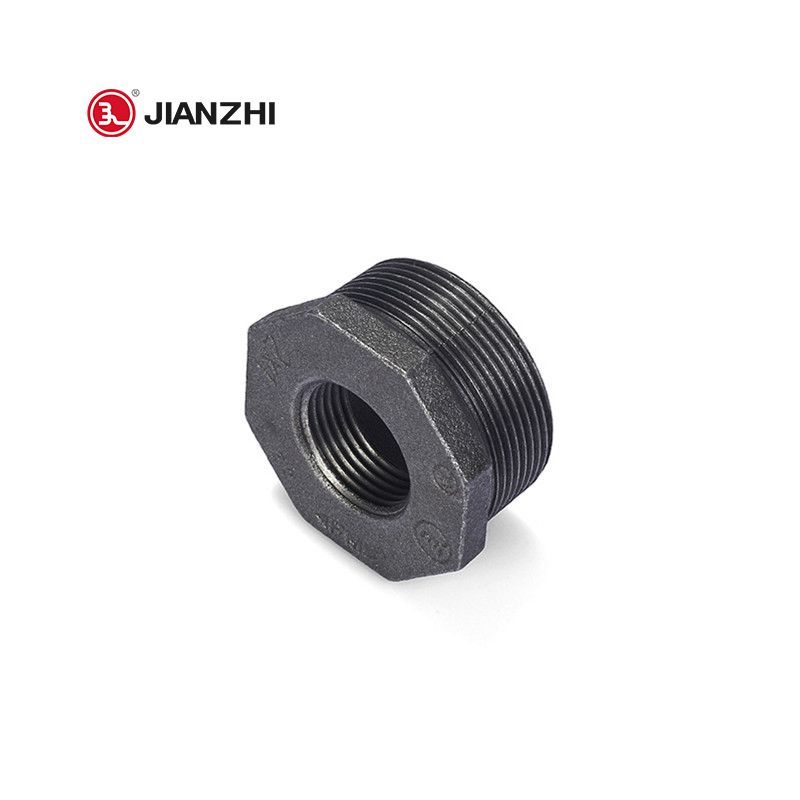

Black Malleable Iron Threaded Fittings Hex Bushing Fig. 241
