Galvanized Pipe Fittings

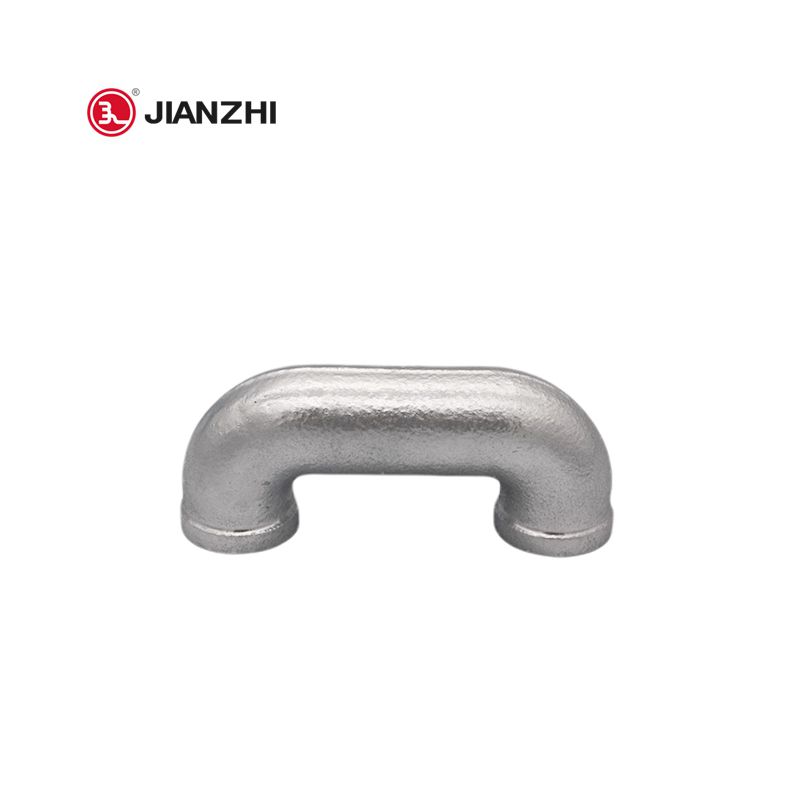

180 Degree Return Bend Fig.90U

Size: 1/2''- 2''(DN15-DN50)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

180 Degree Return Bend Fig.90U

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Malleable iron is a high-strength cast iron material developed in the 1950s. Its comprehensive properties are close to steel. It is based on the excellent properties that it has been successfully used to cast some complex forces, strength, toughness, and wear resistance in highly demanding parts. Malleable iron has rapidly developed and widely used in many fields.

JIANZHI adopt blackheart malleable iron, tensile strength is more than 330Mpa, elongation is more than 8%.JIANZHI brand pipe fittings can be used in all major industrial sectors, which require high strength, plasticity, toughness, wear resistance, severe thermal and mechanical shock resistance, high or low-temperature resistance, corrosion resistance, and dimensional stability.

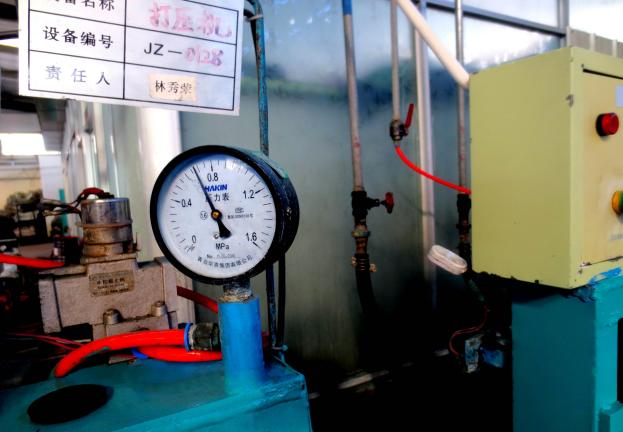

We use 0.6Mpa Pneumatic pressure to do an airtightness test, 20% higher than CE testing methods,100% test for every fitting we made.

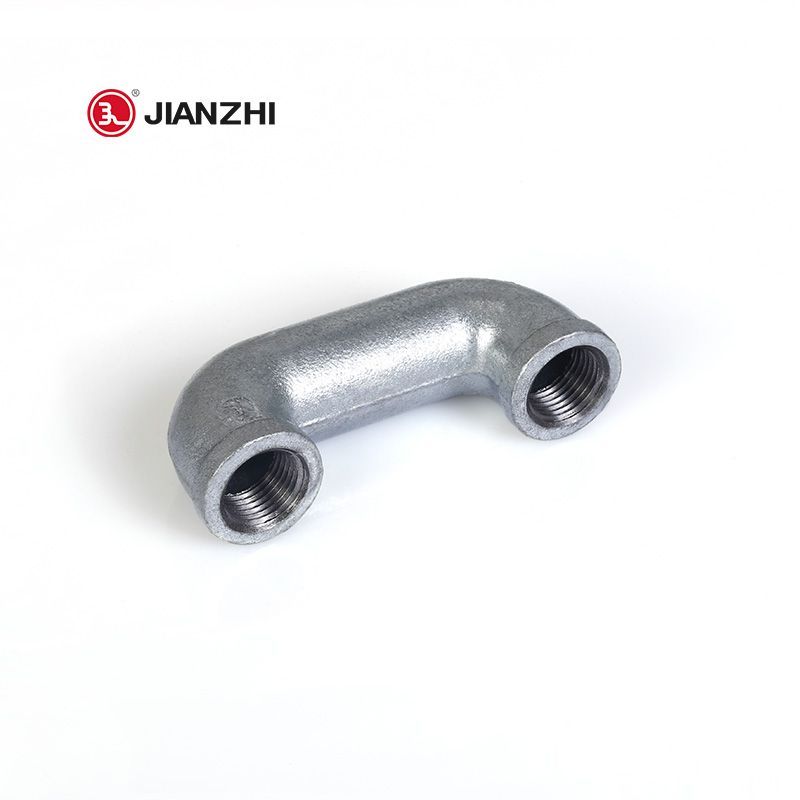

180 Degree Return Bend Fig.90U 180 Degree Return Bend Fig.90U

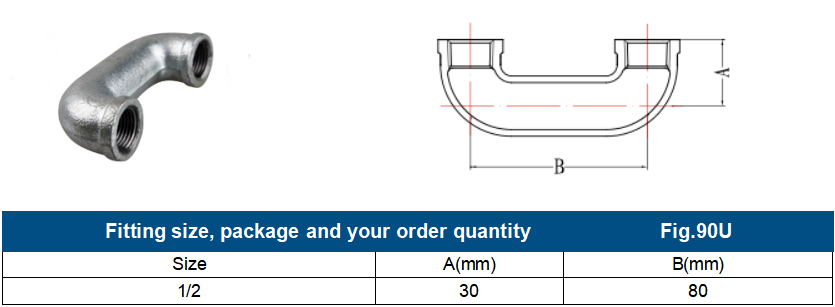

Product Dimensions

180 Degree Return Bend Fig.90U
