Grooved Pipe Fittings

Adaptor Flange XGQT13

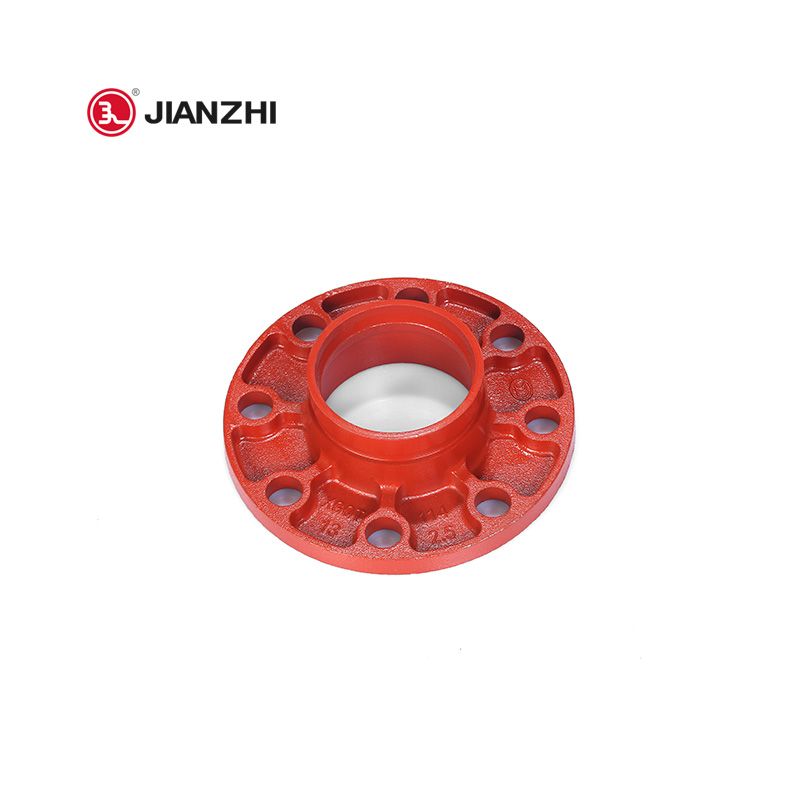

Grooved Flange Adapter

Grooved Flange Adapters are commonly used in commercial or industrial construction, mining and process piping applications. They are replacements for the brand name Grooved Flange Adapter, which is available in a wide range of sizes from 1-1/2" to 12" for precise fitment to a wide range of flanges, lugs and counterclaimed piping system equipment. Galvanised or black are also available on request. Our Grooved Flange Adapter is FM, UL Approvals, please contact us for more information.

Adaptor Flange XGQT13

Product Description

Grooved Flange Adapter is a kind of connection of pipeline, which is mainly used for the transition of valve connection or installation of pressure gauge and other pipelines, or when there is the interaction between valves, such as the connection between butterfly valve and check valve, and when the butterfly valve cannot be fully opened. The material is ductile iron, tensile strength is over 450MPa, Elongation is over 12%. Jianzhi adapt DISA automatic shaping line, the dimension is less than 0.1mm, the qualified rate is over 99.99%.

To know how to install grooved flange, click here!

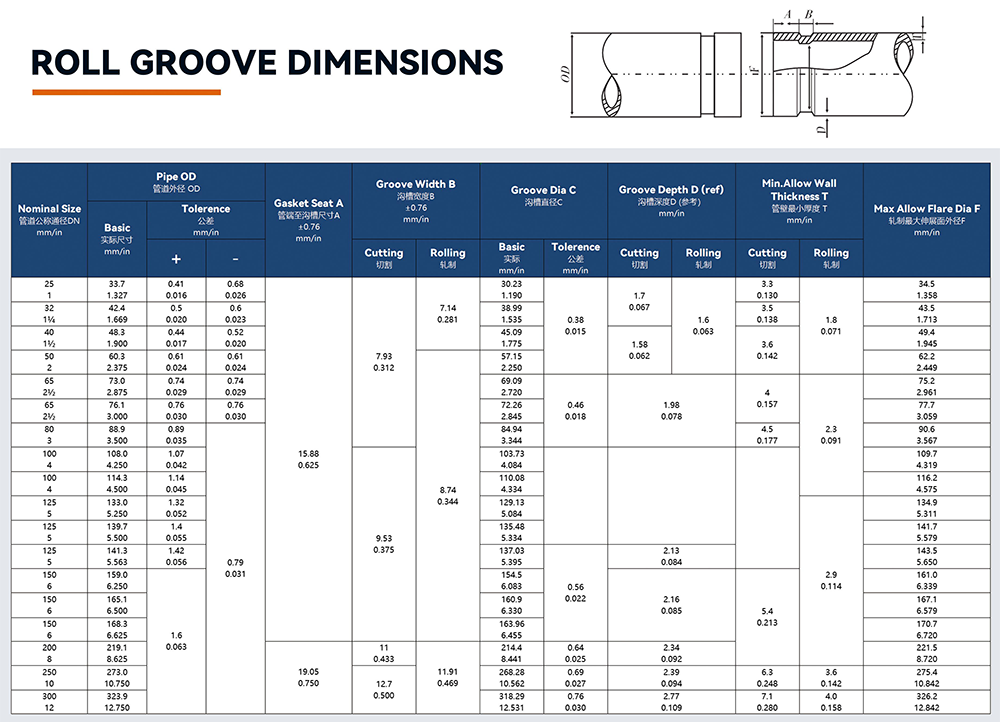

Product Dimensions

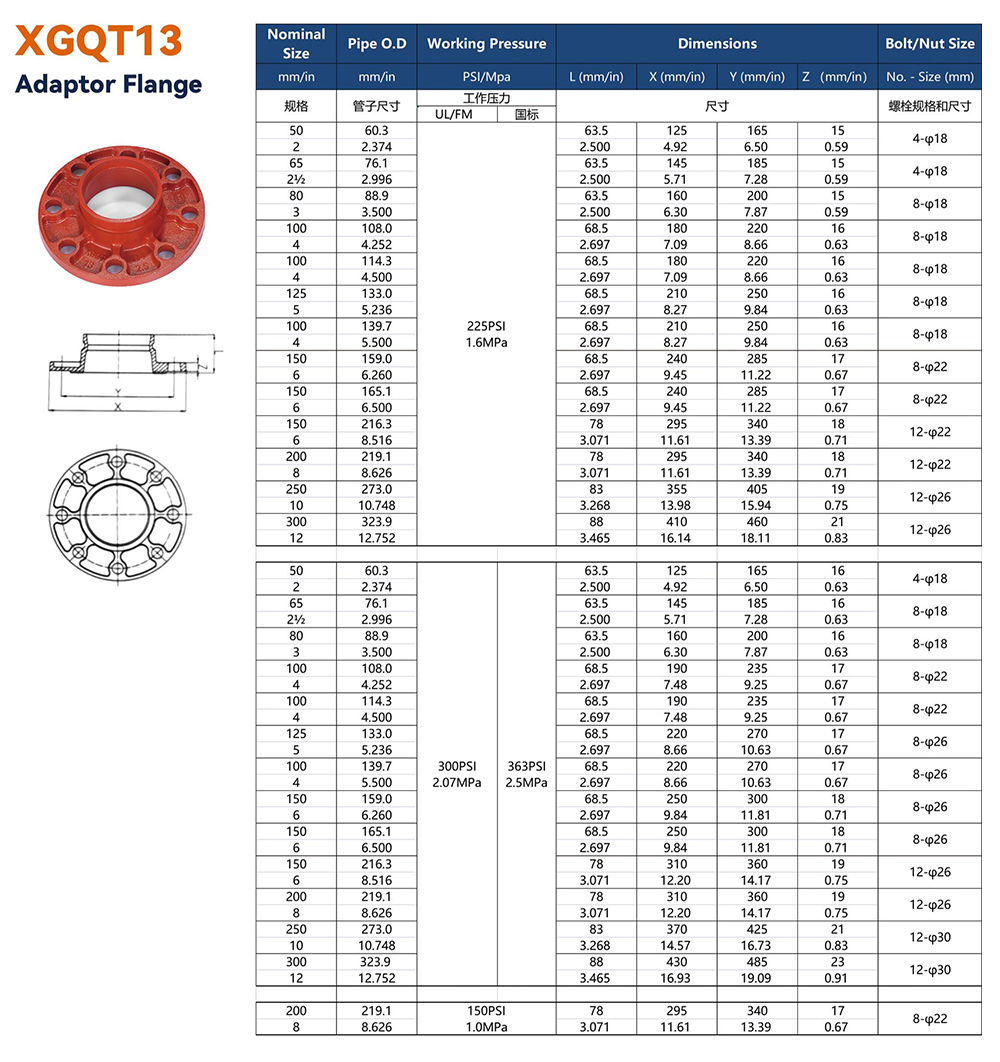

Grooved Flange Adapter Dimension

Adaptor Flange XGQT13

Adaptor Flange XGQT13
