Grooved Pipe Fittings

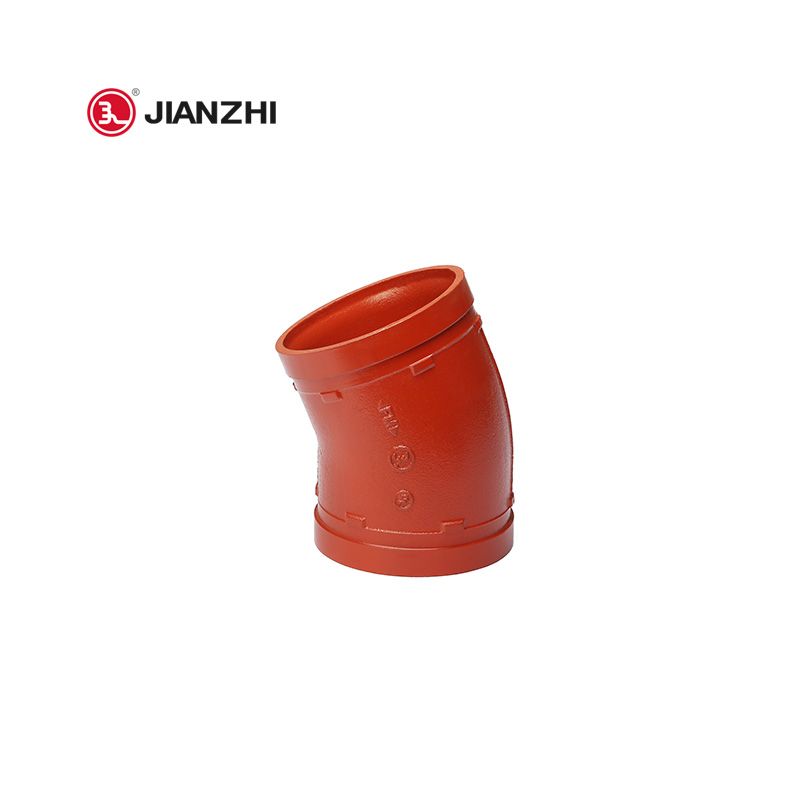

22.5° Elbow XGQT05

Grooved elbows provide an economical and efficient method of changing direction in grooved piping systems. According to the angle, there are two most commonly used: 45° and 90°. 22.5 degrees elbow is also a commonly used one, mainly used to change the direction of the main pipe. It is mostly used between two pipes with a larger angle.

22.5° Elbow XGQT05

Product Description

22.5 Degree Elbow Carbon Steel is 1.0 times the pipe diameter. Carbon Steel Seamless Elbow are in demand for use between two lengths of pipe or tube allowing a change of direction, usually, these elbows are distinguished by connection ends.

Bending angle: 22.5°

Ductile cast iron: ASTM A536 65-45-12

Available sizes: 2 – 12 inch

Working pressure: 300 PSI

FM approved / UL certified

Coating:red painted / galvanized / epoxy blue / grey

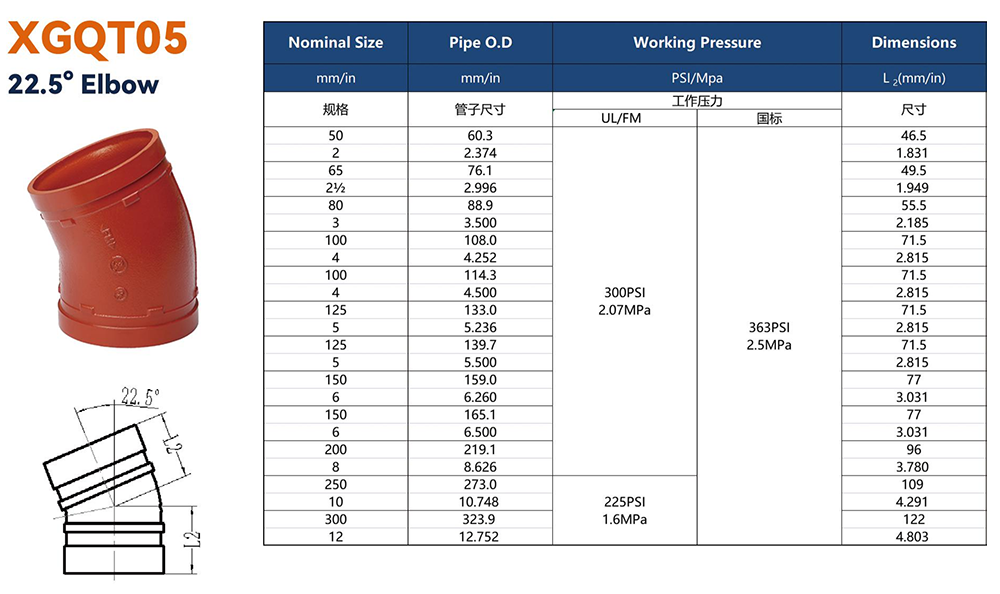

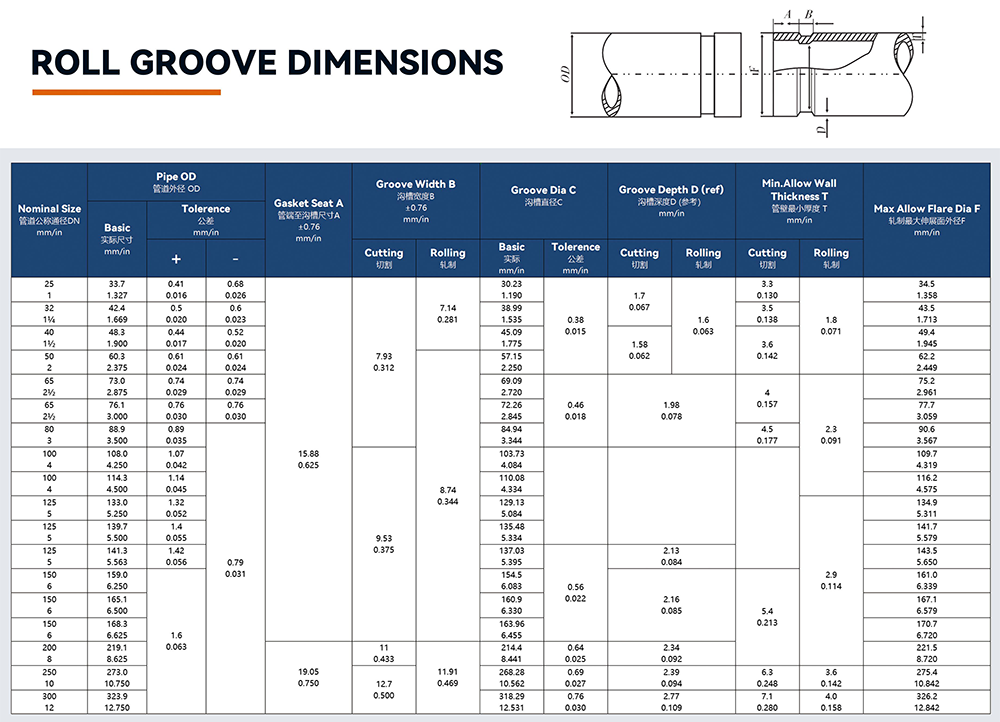

Product Dimensions

22.5° Elbow XGQT05

22.5° Elbow XGQT05
