Grooved Pipe Fittings

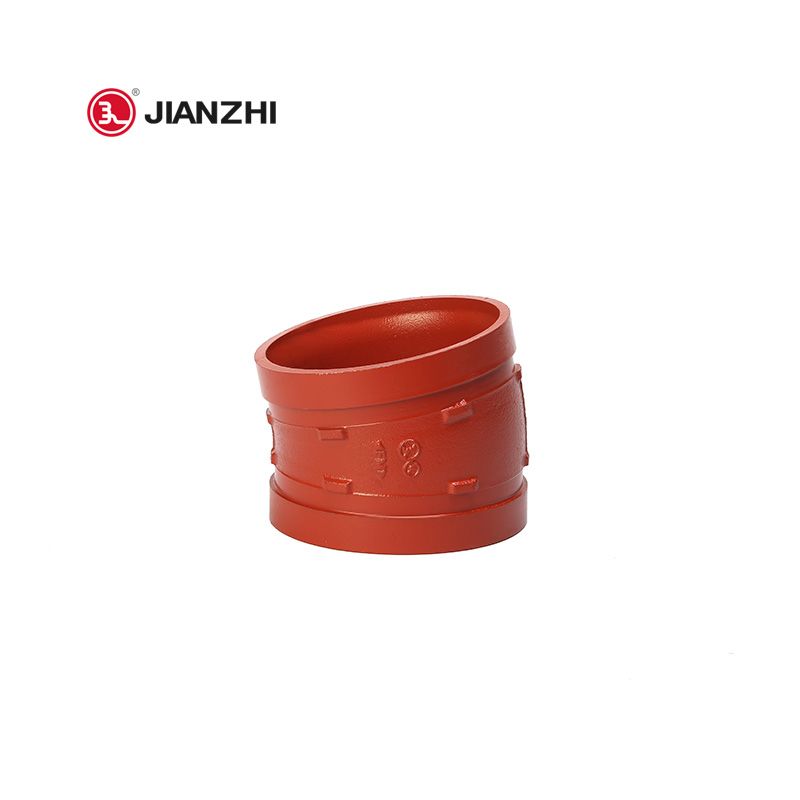

11.25° Elbow XGQT06

Grooved elbows provide an economical and efficient method of changing direction in grooved piping systems. According to the angle, there are two most commonly used: 45° and 90°. 11.25 degrees elbow is also a commonly used one, mainly used to change the direction of the main pipe. It is mostly used between two pipes with a larger angle.

11.25° Elbow XGQT06

Product Description

Bending angle: 11.25°

Ductile cast iron: ASTM A536 65-45-12

Available sizes: 2 – 12 inch

Working pressure: 300 PSI

FM approved / UL certified

Coating:red painted / galvanized / epoxy blue / grey

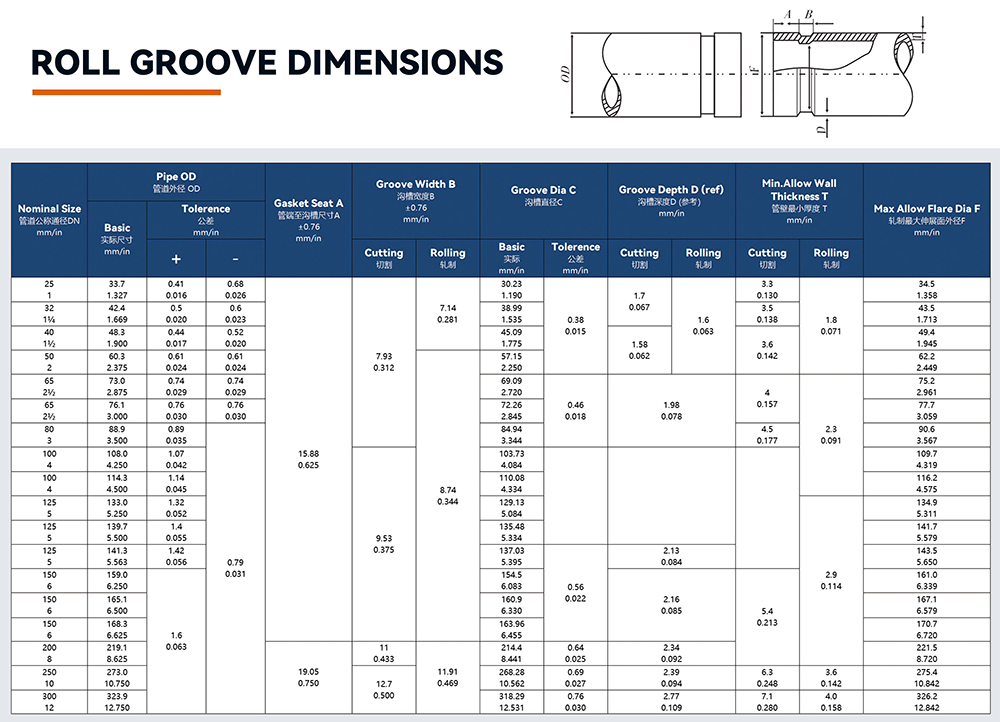

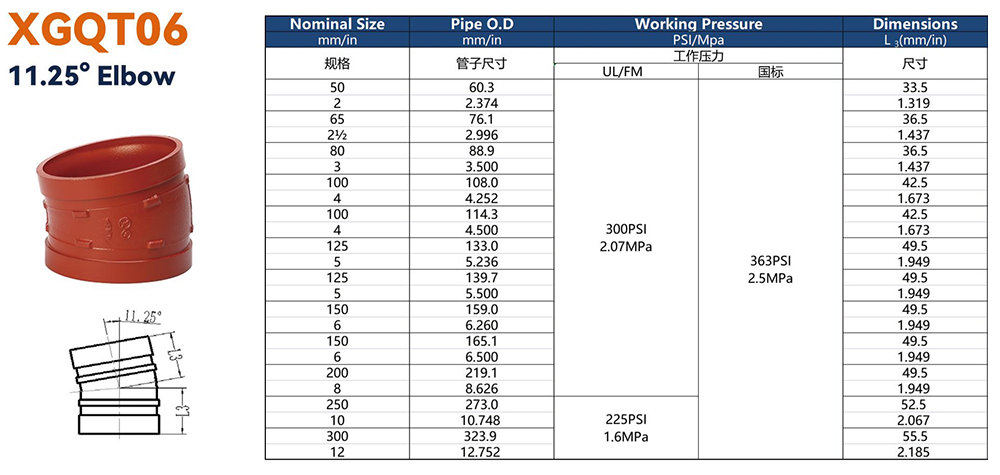

Product Dimensions

11.25° Elbow XGQT06

11.25° Elbow XGQT06
