Comprehensive Guide to Union Pipe Fittings

What Are Pipe Unions?

A pipe union is a specialized fitting designed to connect two pipes while allowing easy disassembly without disturbing the connected pipelines. Commonly used with copper, plastic, or iron piping systems, union fittings simplify maintenance and modifications.

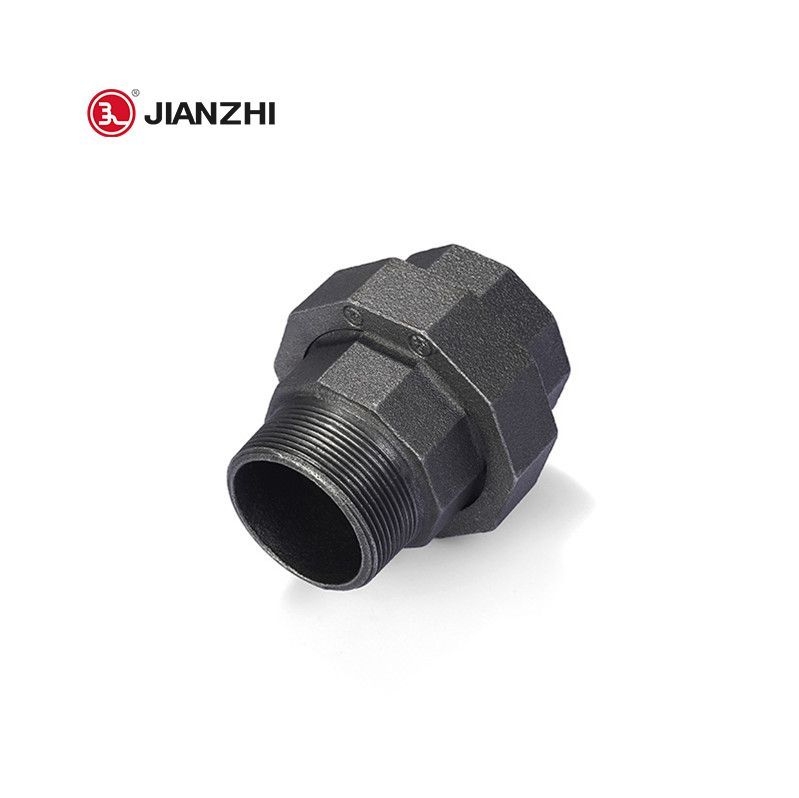

Union Pipe Fitting

Installation of Union Pipe Fittings

Union fittings (also called "pipe unions" or "flanged unions") consist of a male and female end. The appropriate fitting type depends on the pipe diameter. For example, a ¾-inch (19mm) pipe typically requires a nipple and female-threaded cap.

Installation Steps:

1. Prepare Connections:

Slide the union fitting onto both pipe ends and tighten clockwise until fully secure.

2. Seal Joints:

Apply PTFE tape to threaded connections to prevent leaks.

3. Assemble Components:

- For a basic connection, use a pipe nipple with a male-threaded cap on one side and a female-threaded cap or coupling on the other.

- Tighten all components clockwise until snug.

- On the opposite pipe end, use a coupling to complete the joint.

Types of Union Fittings

1. Threaded Unions:

- Male threads on both ends screw into female threads on adjacent pipes.

2. Compression Unions:

- Utilize an O-ring gasket to form a leak-proof seal when tightened.

3. Flare (Push-Fit) Unions:

- Require no threading; pipes slide together and lock via a push-fit mechanism.

Advantages of Threaded Unions

1. Superior Strength: Cold-forged threads enhance tensile strength, exceeding the base material’s capacity.

2. Consistent Performance: Joint integrity is unaffected by installer skill, ensuring reliability.

3. Rapid Installation: Prefabricated threads enable off-site preparation, reducing on-site labor time.

4. Versatility: Suitable for fixed, bent, or caged steel bars where rotation is impractical.

5. Ease of Inspection: Simplified alignment checks between sleeves and reinforcements.

6. Cost Efficiency: Shortens project timelines, reduces energy consumption, and minimizes equipment costs.

Key Functions of Union Pipe Fittings

Easy Maintenance: Allows disassembly by rotating the union without disturbing connected pipes.

Corrosion Prevention: Isolates dissimilar metals to avoid electrolytic corrosion.

Cost Savings: Simplifies pipe connections, replacements, and repairs, reducing labor and material expenses.

Applications

Union fittings are ideal for systems requiring frequent maintenance or modifications, such as plumbing, HVAC, and industrial piping. Their adaptability across materials (metal, plastic) and configurations makes them indispensable in modern piping solutions.

By leveraging threaded unions, compression unions, or flare unions, engineers and technicians can achieve secure, leak-free connections tailored to specific project needs.
