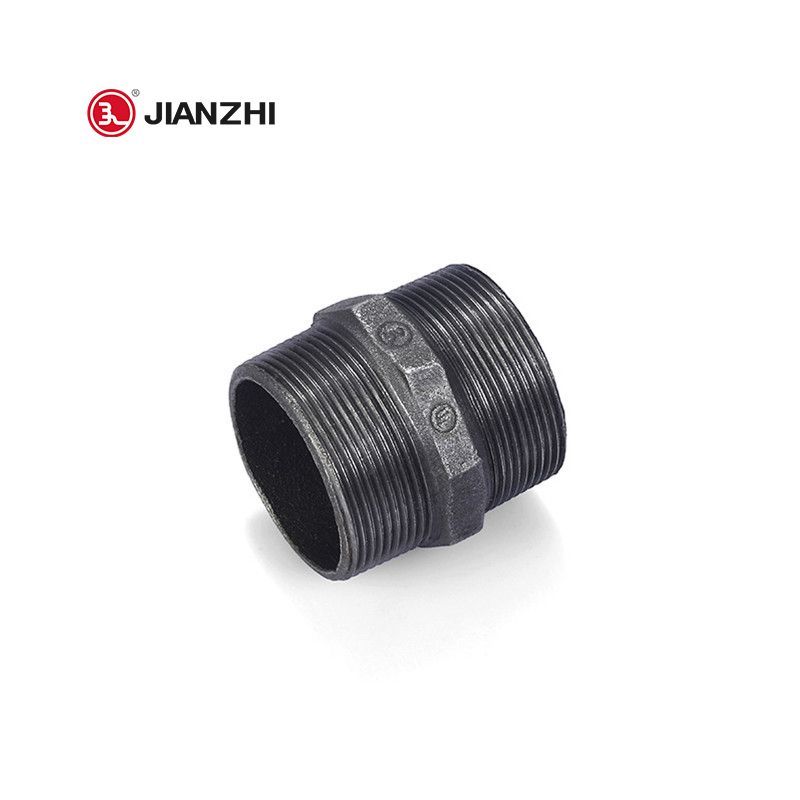

BSP Black Hex Nipple Equal Fig.280

BSP Black Hex Nipple Equal Fig.280

Size: 1/4''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

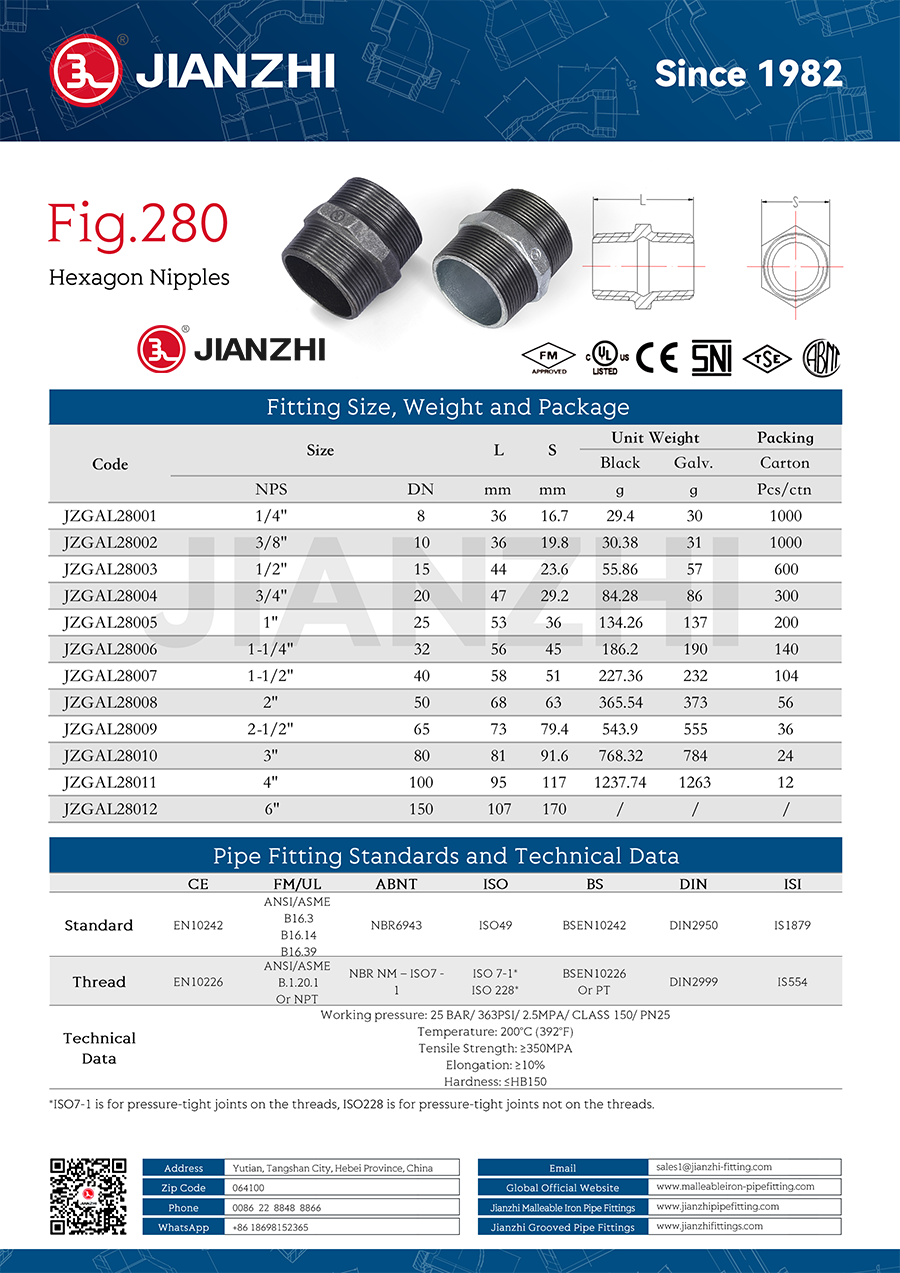

Product Dimensions

BSP Black Hex Nipple Equal Fig.280

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Nipple Fittings usually have threads at both ends, and are external threads, which are used to connect the pipe fittings with internal threads, such as the elbow of the internal thread and the tee of internal thread through nipples,

Nipples include close nipples, hex nipples, Parel nipples, taper nipples, how nipples, reducing nipples, thread welding end nippers, welding nipples. Now we produce hex nipples and reducing nippers, we also can offer other types of nipples.

Hex nipples have a hexagonal section in the middle of the pipe fitting, so it is convenient to install the pipe fitting with a wrench. Compared with ordinary circular nipples or nipples with circular section, hex nipples has higher installation convenience and better practical type, so it is more widely used.
