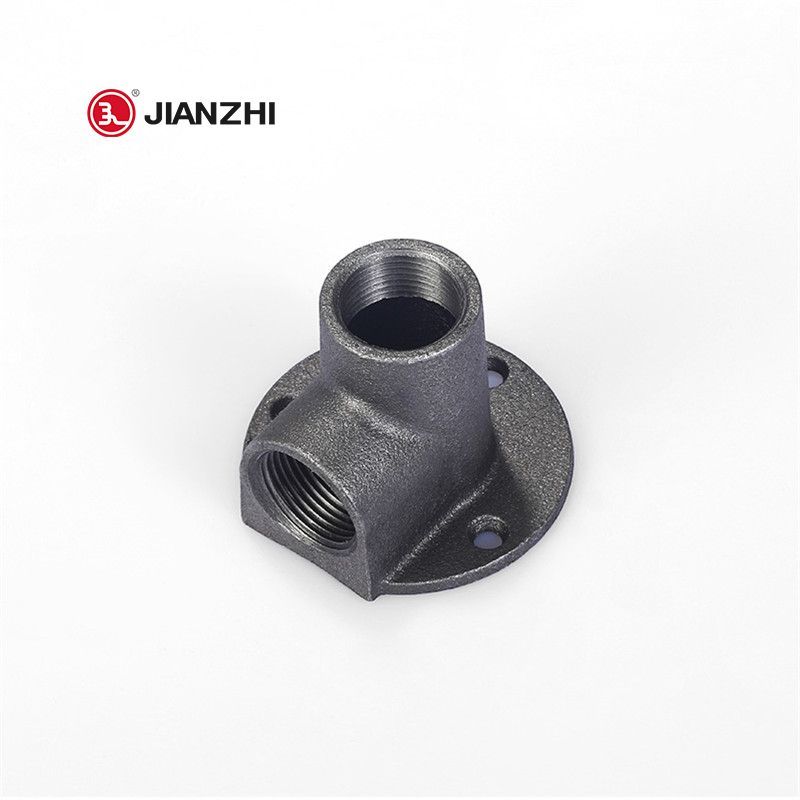

Black Bracket Elbow Fig.471

Black Bracket Elbow Fig.471

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

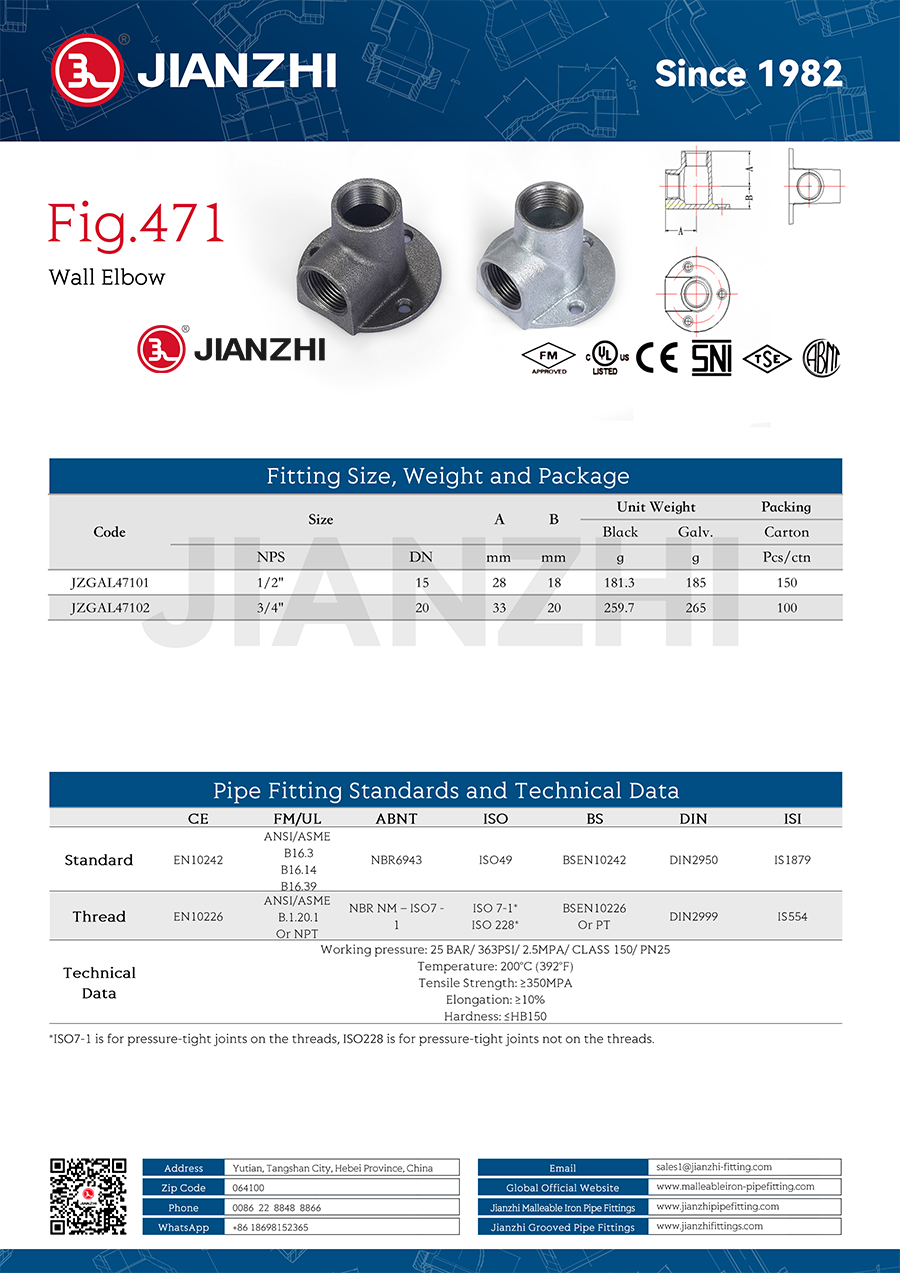

Product Dimensions


Black Bracket Elbow Fig.471


Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150Technical Data

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Our company "JIAN ZHI" is a manufacturer of high-quality pipe fittings. Our priority is not the pursuit of low prices, but the sale of quality and safe products in the engineering market. In recent days, we are focusing on the quality market. We are delighted to be the leading brand in the China market for the past 12 years. And we have obtained CE / FM / UL / ABNT / TSE certification to help us cooperate with overseas clients. Our pipe plant has a stricter standard than EN 10242.
