Iron Pipe Fittings 45 Degree Elbow Fig.120

45 Degree Elbow(1/4in.-6 in.)

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Iron Pipe Fittings 45 Degree Elbow Fig.120

Inquire Now

Product Description

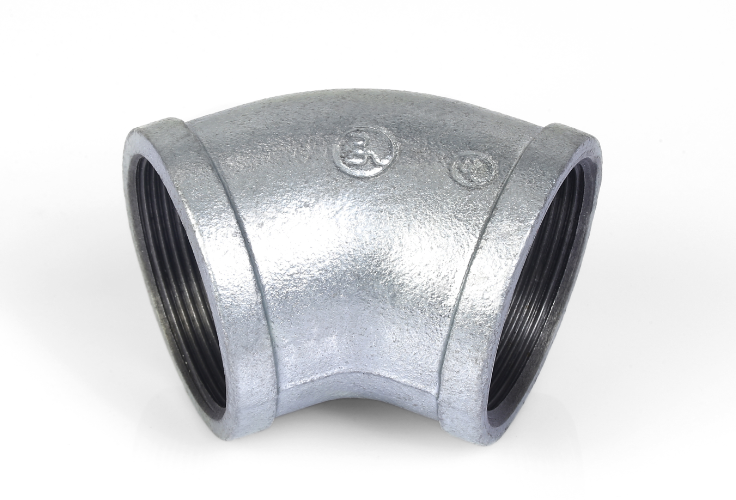

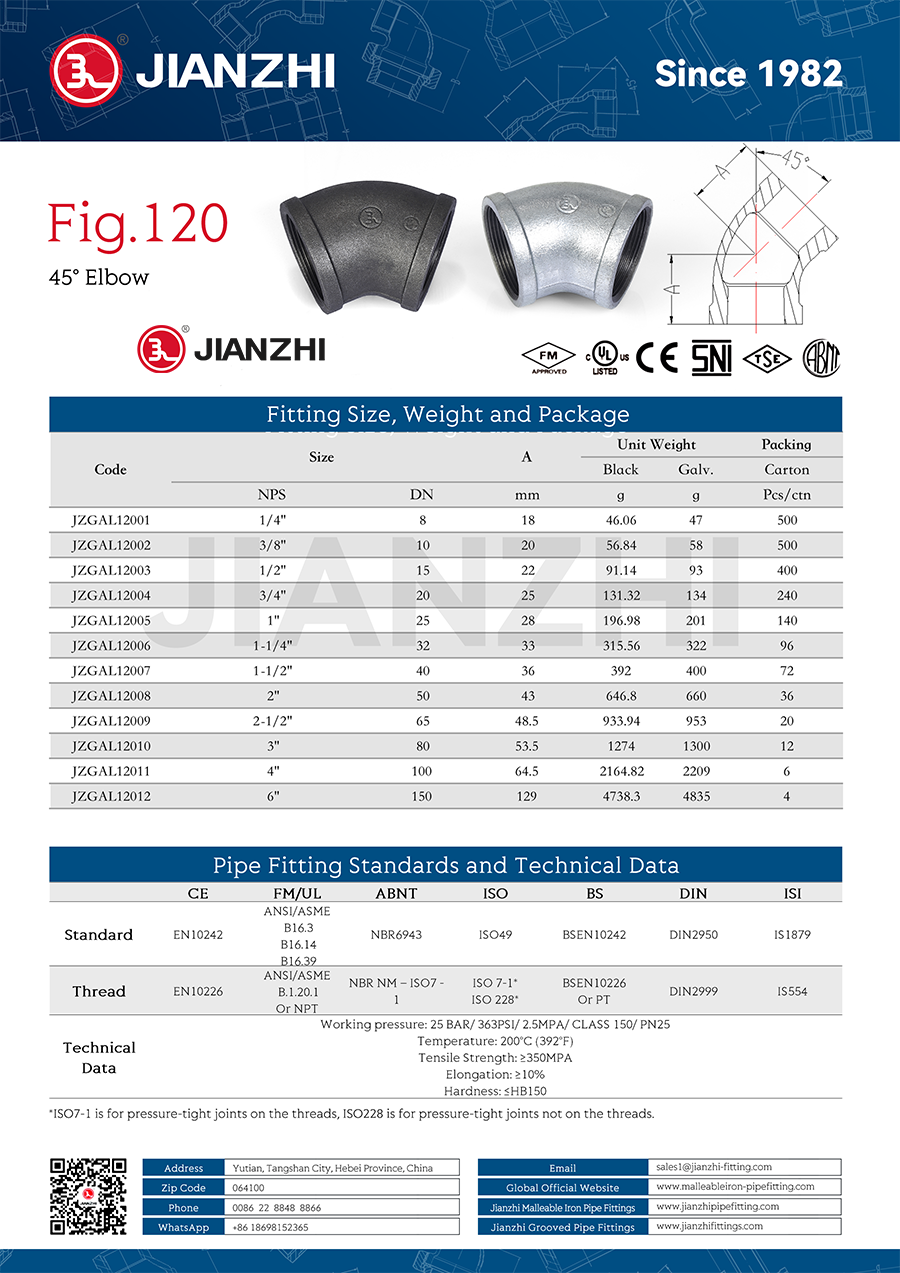

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150Technical Data

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

Corner This element is distinguished by the presence of a bend. The part is used if one or more bends can be found in the system design. Squares made of galvanized cast iron of the JIANZHI trademark are used for the installation of steel pipelines.

Galvanized 45 Degree Elbow change the direction of flow with the possibility of transition from an external to an internal thread.With the help of a threaded connection, galvanized cast iron 45 Degree Elbow allow you to mount pipelines of any configuration, depending on the tasks.

Advantage

1. Easy to maintain: Easy to maintain and repair, which can reduce operating costs.

2.Long service life

3. High temperature resistance

4. Customizable

5. Good thermal insulation

Types of 45-degree elbow

45 degree long radius elbow

Pipe elbows are installed between two pipes so that the direction of the fluid can be changed to 45 degrees. Compared to a 90 degree elbow, a 45 degree elbow creates less friction and lower pressure.

45 degree short radius elbow

The 45 degree SR elbow is usually attached to copper, plastic, steel, cast iron and lead, but can also be attached to stainless steel and rubber clamps. They are widely used in chemical, food, water supply facilities, electronic industry, chemical piping, horticulture, agricultural production, solar equipment piping, air conditioning piping and many other applications.

Product Dimensions

Iron Pipe Fittings 45 Degree Elbow Fig.120

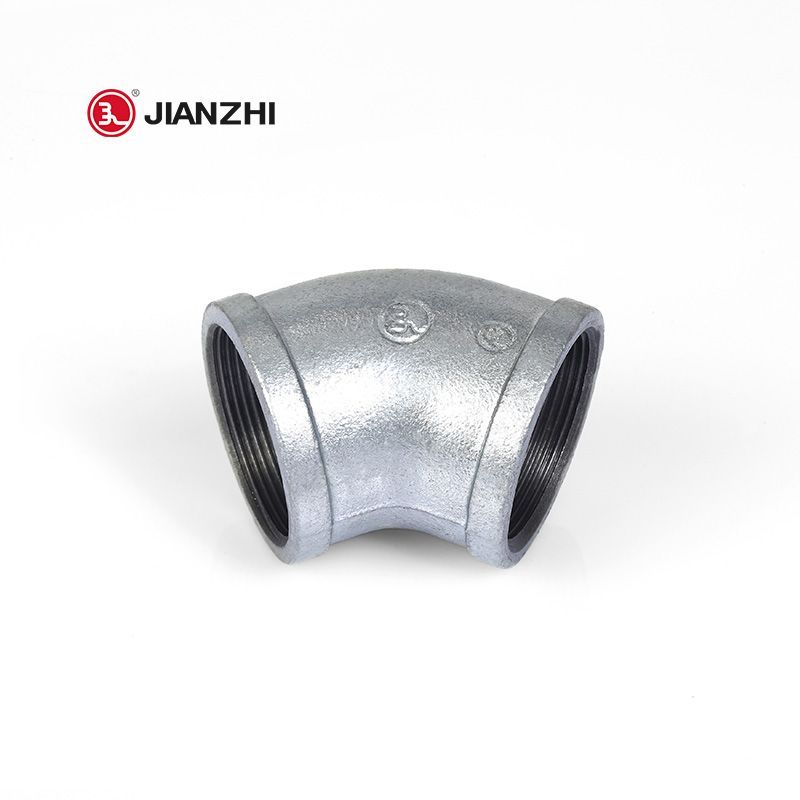

Product show

Product name
1/4in. 45 Degree Elbow - class 150 NPT Threaded 45 degree galvanized elbow
3/8 in. 45 Degree Elbow - CLASS 150 NPT Threaded 45 degree galvanized elbow
1/2 in. 45 Degree Elbow - class 150 350MPA Threaded 45 degree galvanized elbow
1 in. 45 Degree Elbow - class 150 NPT Threaded Iron 45 degree galvanized elbow
1 1/2 in. 45 Degree Elbow - class 150 Threaded Iron 45 degree galvanized elbow
2 in. 45 Degree Elbow - class 150 NPT Threaded Iron 45 degree galvanized elbow
3 in. 45 Degree Elbow - class 150 NPT Threaded Iron 45 degree galvanized elbow
4 in. 45 Degree Elbow - class 150 NPT Threaded Iron 45 degree galvanized elbow
6 in. 45 Degree Elbow - PN25 NPT Threaded Iron 45 degree galvanized elbow
3 in. 45 Degree Elbow - class 150 UL Threaded 45 degree galvanized elbow
3 in. 45 Degree Elbow - class 150 FM Threaded 45 degree galvanized elbow
Contact us to get the latest 45 degree elbow products detailed parameters, real-time quotes, market trends, quality goods wholesale/supply information, you can also free to search for information related to Jianzhi brand 45 degree elbow galvanized steel pipe fittings export products

FAQ

What is a 45 degree elbow?

A 45 degree elbow with a female National Pipe Taper (NPT) thread for changing the direction of flow between two pipes. Our high quality standard 150 lb grade threaded pipe fittings are manufactured to the highest standards. All Malleable Iron fittings are monitored by quality control personnel for strict compliance with applicable standards and codes. These Malleable Iron fittings are ideally suited for applications involving potentially corrosive chemicals or liquids. In addition to being resistant to corrosion, Malleable Iron fittings are also resistant to contamination, making them useful to many professionals.

45 degree elbows are usually manufactured as LR (long radius) elbows. Only in very small applications, such as very tight places, do people use short radius elbows. Because few factories produce these 45 degree short radius elbows, engineers or workers will cut a 90 degree elbow into two 45 degree elbows.

How does 45 degree elbow connect?

The connections to the pipe are: direct welding (the most common way) flange connections, hot fusion connections, electrofusion connections, threaded connections and socket connections. According to the production process can be divided into: welding elbow, stamping elbow, pushing elbow, casting elbow, etc.

How to distinguish between 90-degree elbow and 45-degree elbow

1, the naked eye: 90 degree elbow two orifice extension line is vertical, and 45 degree elbow two orifice extension line intersects into an acute angle.

2, look at the receiver: 90-degree elbow after the two sides of the receiver to form a right angle, 45-degree elbow after the two sides of the receiver to form an obtuse angle.

Welcome to contact us for more informations of 45 Degree Elbow!
