Grooved Pipe Fittings

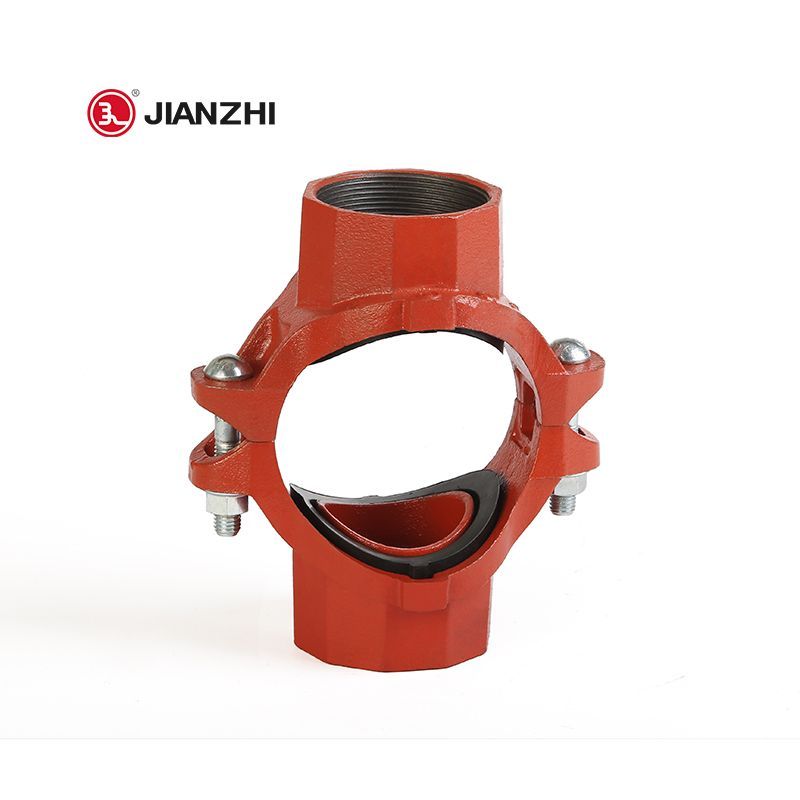

Threaded Mechanical Cross XGQT15S

The threaded mechanical cross is one of the combination methods after the upper half of the two mechanical tees are combined. The main function is to split the main pipeline, when the shunt space is limited, the threaded link can be selected.

Threaded Mechanical Cross XGQT15S

Product Description

Although the speed is slightly slower than the grooved couplings, it can effectively save space. There is no need to equip additional grooved couplings to fix the pipe and the mechanical cross. The installation cost can be saved to a certain extent.

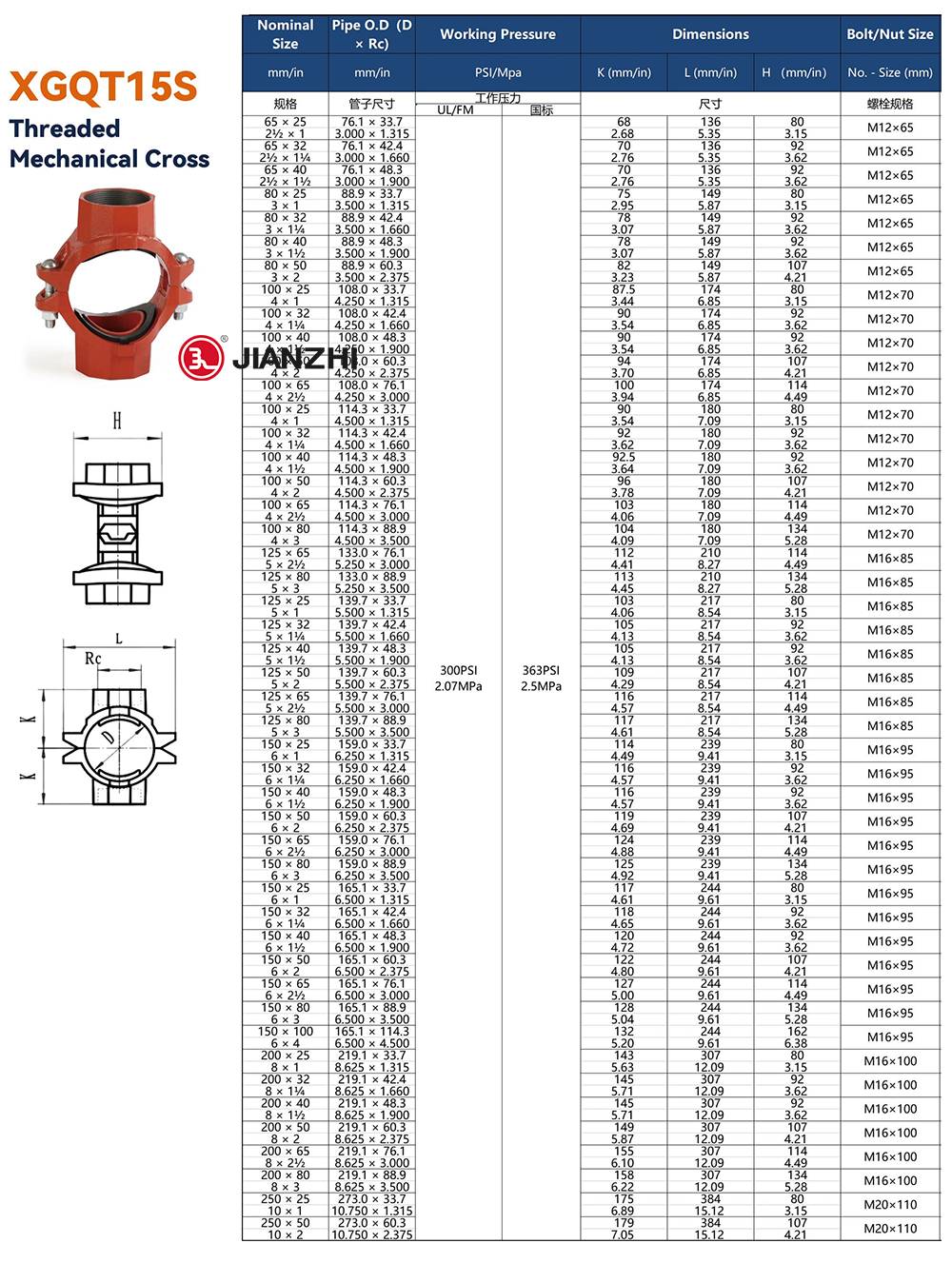

Product Dimensions

Threaded Mechanical Cross XGQT15S

Threaded Mechanical Cross XGQT15S

Threaded Mechanical Cross XGQT15S
