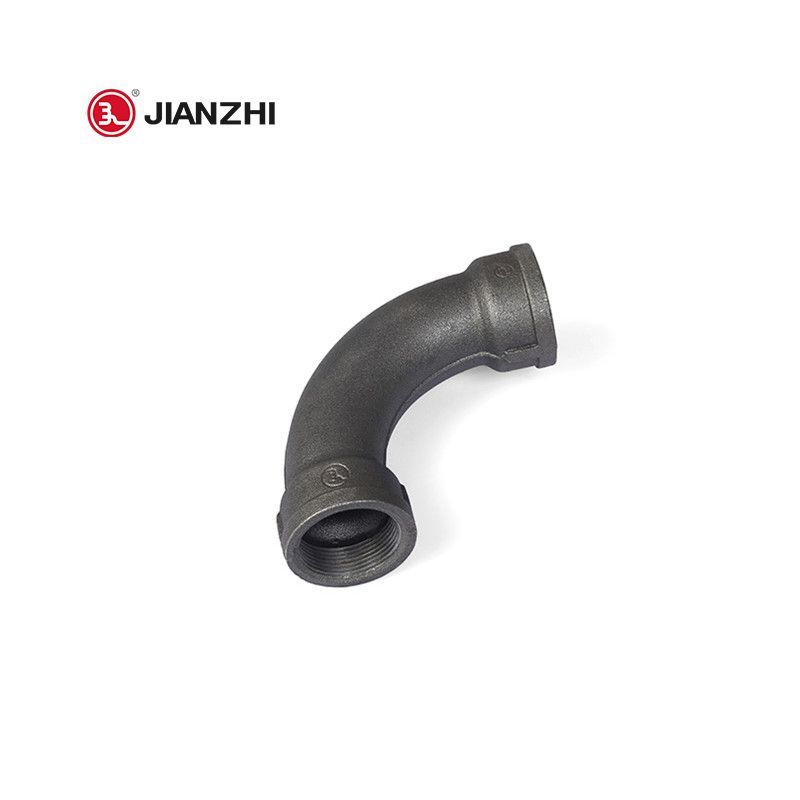

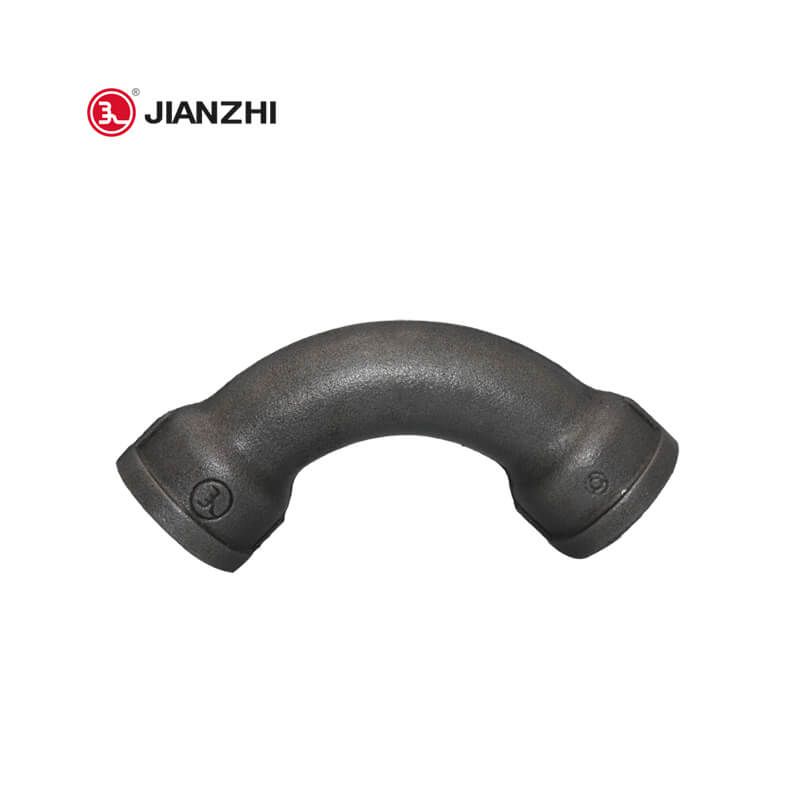

BSP Black Malleable Iron 90 Degree Bend Fig. 2

BSP Black Malleable Iron 90 Degree Bend Fig. 2

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

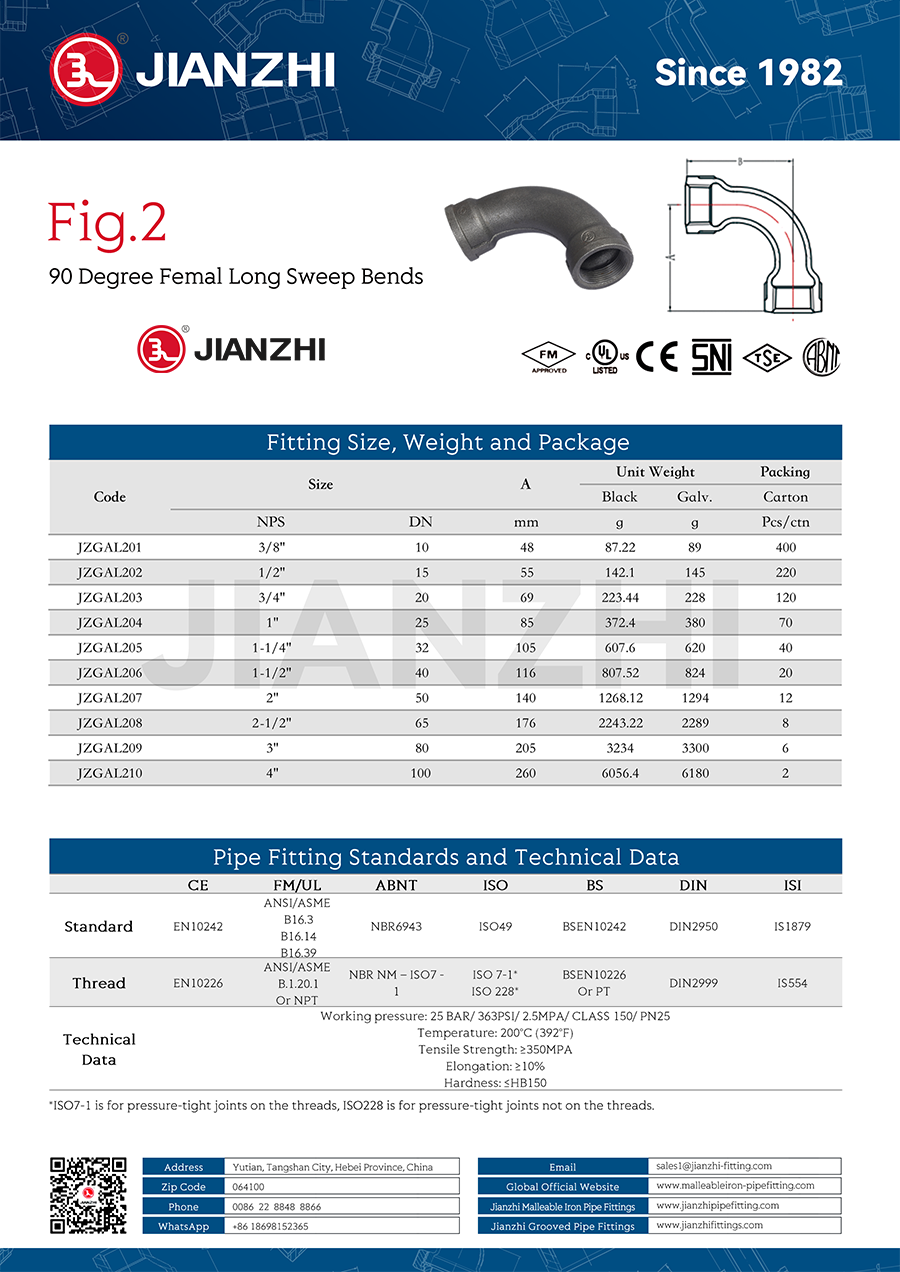

Product Dimensions

BSP Black Malleable Iron 90 Degree Bend Fig. 2

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Everyone knows that fittings are a necessary part when assembling any plumbing system. Having made a high-quality repair once, choosing high-quality parts, you will forget about water supply problems for many years.Despite the fact that the use of cast iron communications is a thing of the past, cast iron fittings are still widely used in pipeline construction. Their enduring popularity is due to the long service life of 60 to 80 years, and the high strength of the material.
