Black Pipe Fittings

Black Cross Reducer Fig.180R

Size: 3/4''-4''(DN20-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Black Cross Reducer Fig.180R

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron



When it is necessary to connect pipes of different sizes from four directions, it is necessary to use reducing four-way fittings, or it is also necessary to control fluid conveying directions in different directions. Because there are four outlets in each direction, as a reducing four-way pipe, the outlet diameter in every two directions can be the same, for example, 1/2''x3/4'' means there are two outlets are 1/2'' and another two outlets are 3/4''.

In special cases, reducing four-way pipe fittings with all different directions can also be used,

Usually, the reducing four-way pipe has one inlet and three outlets of different sizes. The outlet can be symmetrical or asymmetrical, which plays the role of fluid distribution in different directions.

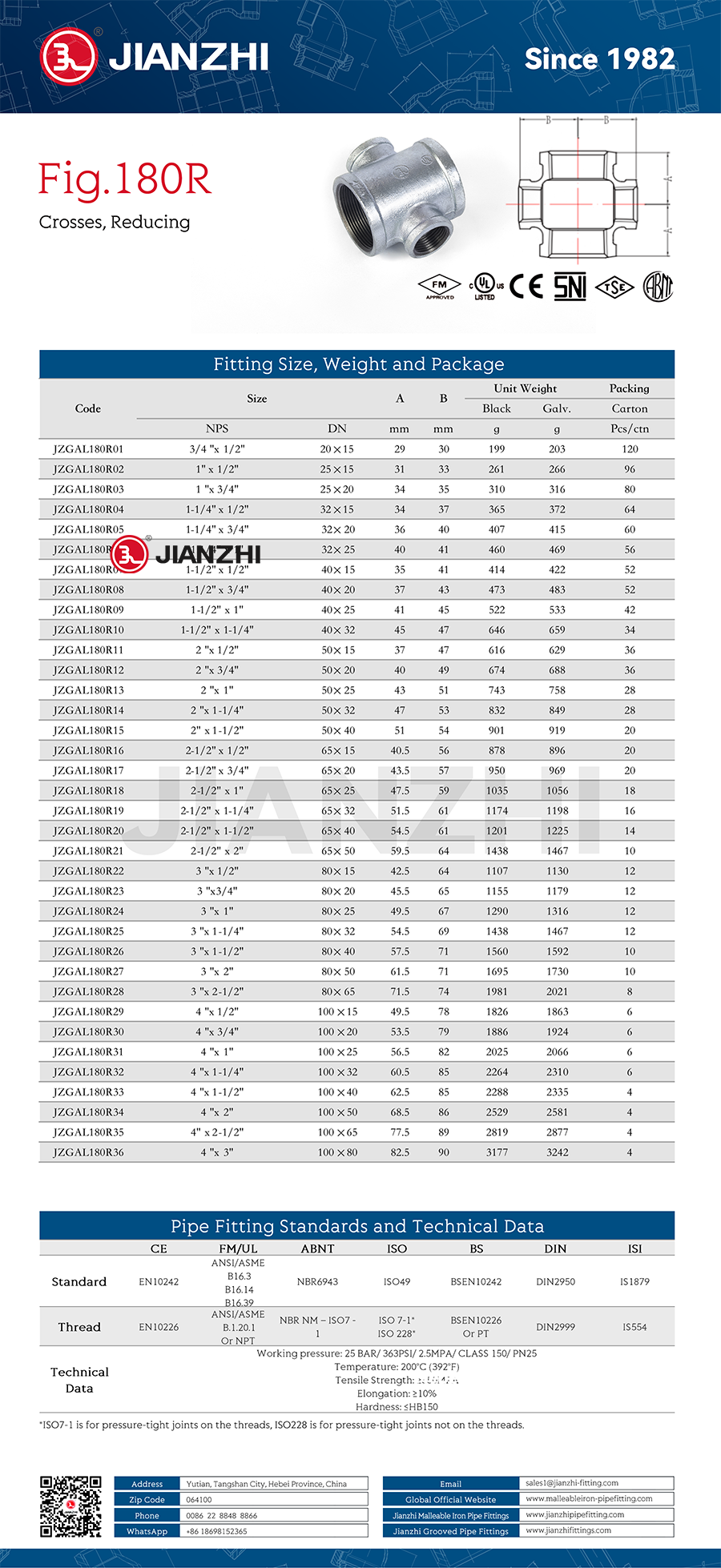

Product Dimensions


Black Cross Reducer Fig.180R
