Grooved Pipe Fittings

45° Elbow XGQT04

Grooved elbows provide an economical and efficient method of changing direction in grooved piping systems. According to the angle, there are two most commonly used: 45° and 90°.

45° Elbow XGQT04

Product Description

Bending angle: 45°.

Ductile cast iron: ASTM A536 65-45-12

Available sizes: 2 – 12 inch

Working pressure: 300 PSI FM approved / UL certified

Coating:red painted / galvanized / epoxy blue / grey

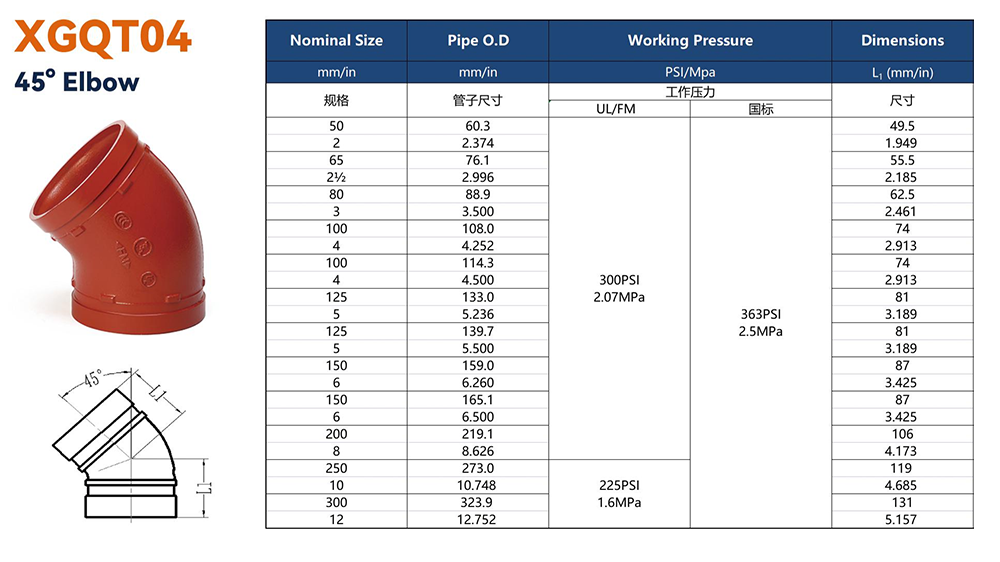

Product Dimensions

45° Elbow XGQT04

45° Elbow XGQT04
