Pipe Connector Lateral Y Branch Tee 45 Degree Fig.165

pipe y fittings

Size: 1/2''-4''(DN15-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Pipe Connector Lateral Y Branch Tee 45 Degree Fig.165

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron


Y Type Tee (pipe y fittings), Malleable iron cast Fittings, pipe fittings shape is like a letter Y, branch pipe and main outlet 45° angle, the main outlet, and branch outlet size. For fluid shunt. We also call it from other names such as Y Tee Fitting, Y Shaped Tee, Y Cross Tee, Double Y Tee,Y Lateral Tee, Y Tee Pipe Branch Fitting etc.

Branch Connection - Branch connections are used when two or more pipes come together. These can be in the form of a complete fitting, such as a tee or cross.  They can also be in the form of an "O", let which is a branch connection that is designed to attach directly to the pipe.

Threaded fittings are generally six inches and smaller. The reason for this size constraint is the pipe end needs to be threaded with a male-type connection and die sizes are unobtainable in the larger diameters.

Cast iron fittings are designed to connect water and gas pipes in water supply systems, gas pipelines, etc.

Pipe y fittings and pipe tees

Pipe y fittings are similar to pipe tees. The only difference is that the branch line is angled to reduce friction that may impede flow. The pipe connection is usually at a 45-degree angle rather than the usual 90-degree angle. If the branch is perpendicular to the straight line at the end, the fitting becomes a 'tee'.

A tee is a T-shaped fitting used for horizontal to vertical transitions. On the other hand, pipe y fittings are used to combine two lines into one horizontal line to ensure a smooth flow without blockages. Both fittings have their own function and are not interchangeable. The T-fitting, just like the y-fitting, is one of our most popular and versatile structural fittings. The T-fitting allows you to easily connect two pipes at a 90 degree angle or use it as an elbow at the end of a conduit. It is designed to fit 1/2''-4'' tubes and can be easily purchased at your convenience on our website.

t pipe connector

The t pipe connector is our most popular and versatile structural pipe connector. It is designed to fit 3/4" or 1 pipe and is available at your local hardware shop. t pipe connector is designed so that you can quickly change the connection while building, or remove and reuse the connector for future projects. The t pipe connector can be easily assembled with one tool, regardless of which side the nut is on.


Certain factors to consider when purchasing pipe y fittings

Pipe and tube size

Chamber wall thickness

Material

Number of branches: 30, 45 and 60

Finishing

Durability

Corrosion resistant

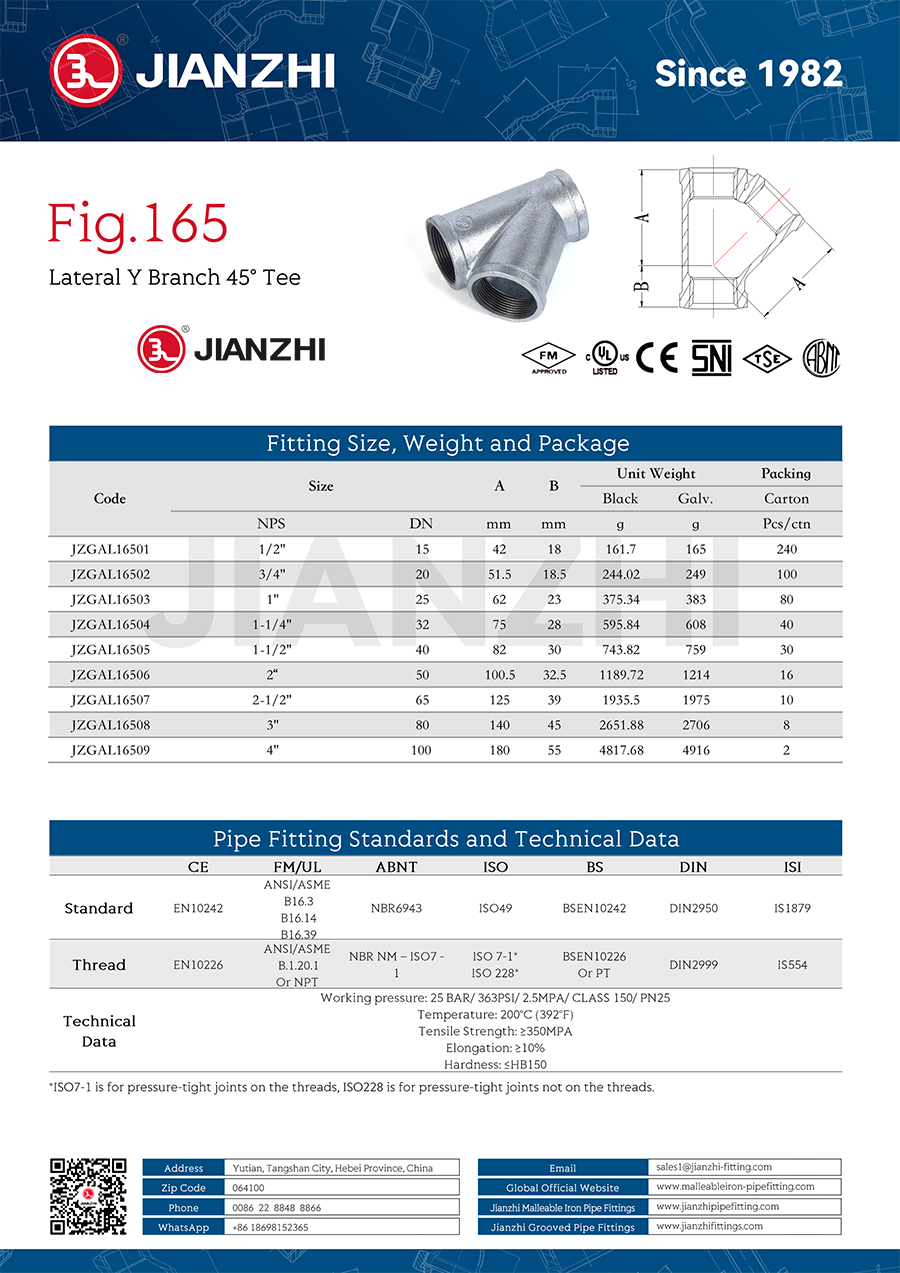

Product Dimensions

Pipe Connector Lateral Y Branch Tee 45 Degree Fig.165

Size: Various sizes are available, 1/2 in,3/4in pipe y fittings  are commonly used in the transport of water, gas or liquid waste in residential and industrial environments.
