Different Types of Pipe Fittings in Plumbing Systems

Dec. 02, 2022

The plumbing system is one of the most common transmission systems in our daily life. Plumbing systems are used to transport various fluids, including various liquids or gases such as water, oil, and natural gas. The Plumbing system is distinguished from the material. There are different materials such as copper, iron, steel, plastic, etc. According to the different fluids to be transported, it is necessary to use a piping system of suitable material. The Plumbing system is distinguished by its shape and consists of only two parts, which are straight pipes and pipe joints of various shapes that link the straight pipes. The shapes of pipe fittings are different and mainly divided into the following categories: elbows, tees, crosses, unions, reducers, unions, flanges, etc. Next, I will take the malleable pipe fittings produced by Jianzhi Group as an example to introduce the functions of these types of pipe fittings.

Table of contents



Elbow Pipe Fittings

In piping systems, elbows are pipe fittings that change the direction of the piping. According to the angle, there are three most commonly used ones: 45°, 90°, and 180°. In addition, according to engineering needs, other abnormal angle elbows such as 60° are also included. The ways to connect with the pipe are direct welding (the most commonly used way) flange connection, hot-melt connection, electric fusion connection, thread connection, socket connection, etc.

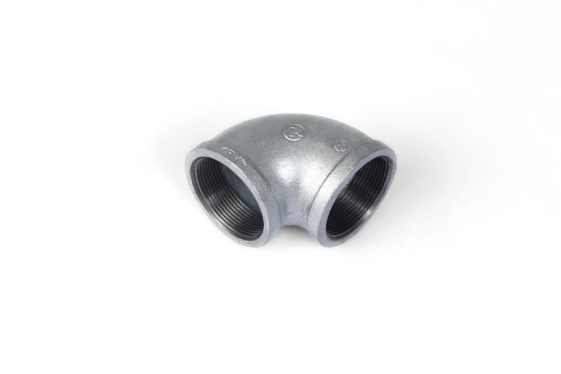

Jianzhi 90° elbow

Jianzhi 90° elbow



Tee Pipe Fittings

The tee is the connecting piece of the pipe. It is used to change the direction of the fluid, and it is used at the branch pipe of the main pipe. Tee is a chemical pipe fitting with three openings, namely one inlet and two outlets; or two inlets and one outlet. The junction of three identical or different pipelines.

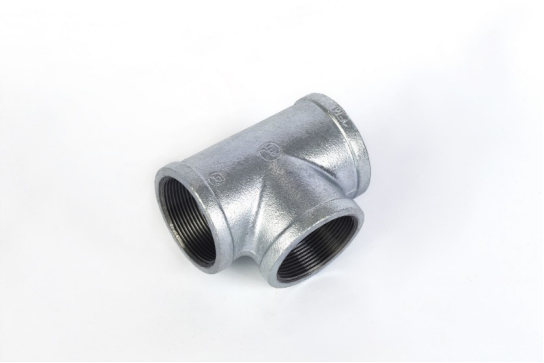

Jianzhi tee equal

Jianzhi tee equal



Cross Pipe Fittings

The four general purposes are at the main branch pipe of the main pipeline. The four-way can be divided into equal diameters and different diameters. The pipe ends of the equal-diameter four-way are all the same size; The cross is a pipe fitting used at the branch of the pipe.

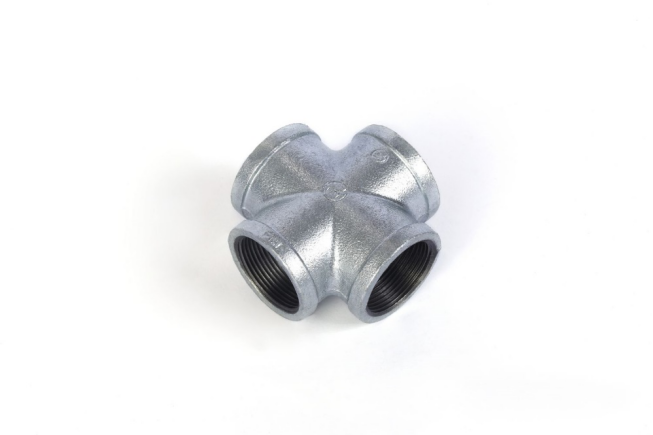

Jianzhi equal cross

Jianzhi equal cross

Coupling Pipe Fittings

A pipe coupling is a short piece of pipe used to connect two pipes. Many pipe couplings are connected by threads, which are divided into internal threads and external threads, and are also divided into equal diameters and different diameters. Equal-diameter pipe couplings are used to connect pipes of equal diameter, and different-diameter pipes are used to connect pipes of different diameters. Because of their convenient use, pipe couplings are widely used in civil construction, industry, agriculture, and other fields.

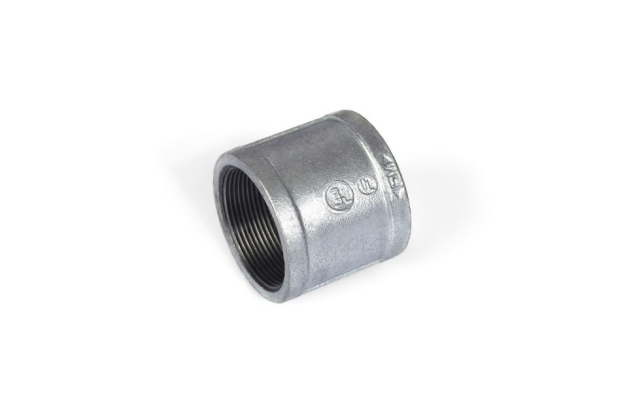

Jianzhi coupling equal

Jianzhi coupling equal



Unions Pipe Fittings

A union is a common pipe connector that can be easily installed and disassembled. The pipe fittings connecting two pipes can separate the two pipes without moving the pipes, which is convenient for maintenance. Contains 3 parts: a threaded head, a ball head, and a tight cap. The sealing surface inside the union includes a flat surface (with a gasket), a spherical surface, a conical surface, and so on. There is butt welding, socket welding, screw thread, etc. for the connection between the union and the pipeline.

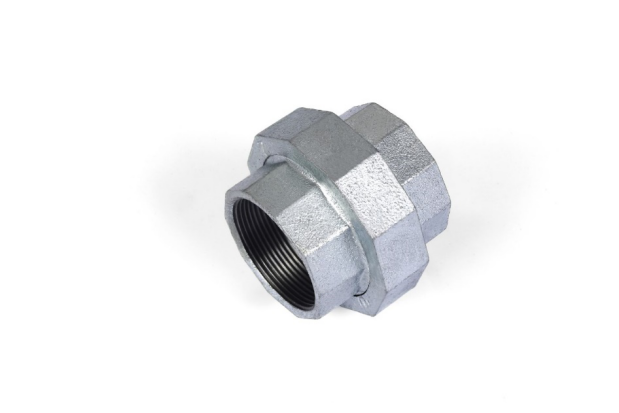

Jianzhi union

Jianzhi union



Plug Pipe Fittings

Pipe plugs refer to externally threaded pipe fittings used to block internal threads at the end of pipes. Installed on the internal thread of the pipe end. There are square pipe plugs and hexagonal pipe plugs. The function of a pipe plug is to completely block a certain port of the pipe. Most pipe plugs are connected by threads, and high-quality threads ensure the tightness of the pipeline system.

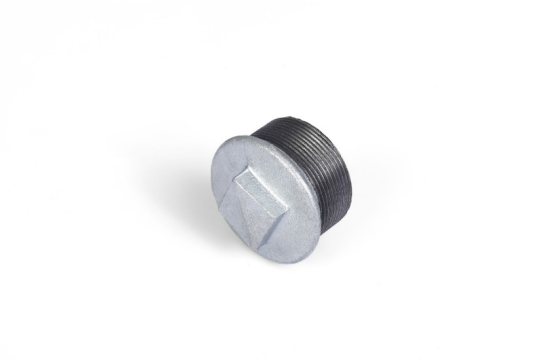

Jianzhi square pipe plug

Jianzhi square pipe plug



Cap Pipe Fittings

The pipe cap is a pipe fitting that is welded on the pipe end or installed on the external thread of the pipe end to cover the pipe. It is used to close the pipeline and has the same effect as pipe plugging. The purpose of pipe cap and pipe plug is similar, but the occasion of use is different. The pipe cap is suitable for the external thread pipe port, and the pipe plug is suitable for the internal thread pipe port.

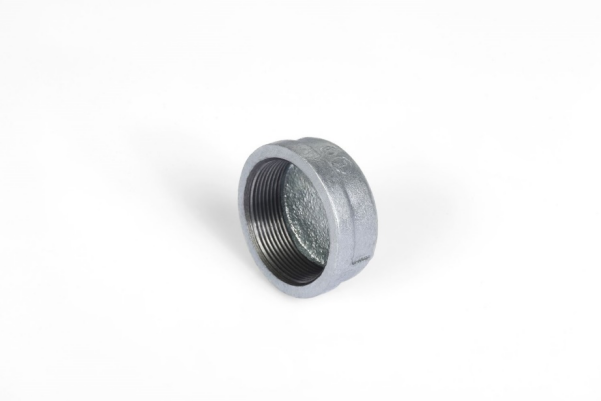

Jianzhi round caps

Jianzhi round caps
