BSPT vs. NPT Malleable Iron Fittings: Choosing the Right Leak-Proof Seal

A thread mismatch is an expensive shipping mistake. If your job site specs call for BSPT but receives an NPT container, the fittings won't seat to full depth—leaving you with a warehouse full of inventory that leaks under hydrostatic pressure. For MEP contractors and industrial importers operating between British and American standard markets, choosing the exact thread geometry is critical to passing local sign-offs without field leaks.

Under the premier Jianzhi brand, backed by 44 years of casting and machining expertise, we manufacture heavy-duty malleable iron fittings engineered to strict ISO, BS EN, and ANSI/ASME standards for absolute pressure tightness.

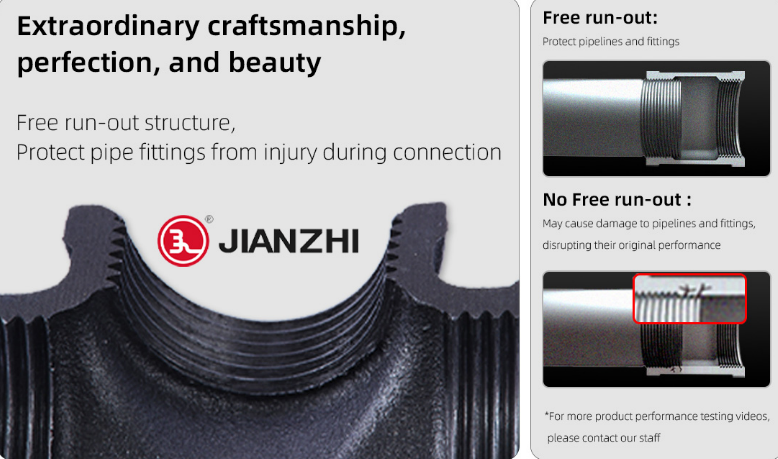

Free run-out structure-Jianzhi malleable iron pipe fitting

1. Introduction: The Critical Impact of Thread Geometry on Leak Prevention

You can’t seal a pipe joint if the threads don't bite to the right depth. Because BSPT and NPT elbows both use a 1:16 taper, workers often mix them up on site. But force an NPT male thread into a BSPT socket, and the mismatched tooth angles smash into each other after 2 or 3 turns—leaving tiny voids behind the joint. That’s why Jianzhi cuts every single fitting on dedicated CNC lines: to ensure full thread contact that holds up under pressure.

2. BSPT vs. NPT: Core Technical Differences & Engineering Standards

Understanding the fundamental metallurgical and geometric parameters prevents costly field rework. Below is the direct technical comparison between the two international standards:

Avoiding Field Failures: Can You Thread NPT into BSPT?

A common mistake on global job sites is assuming that similar-looking tapered fittings are interchangeable.

What Happens When You Mix BSPT and NPT Threaded Fittings?

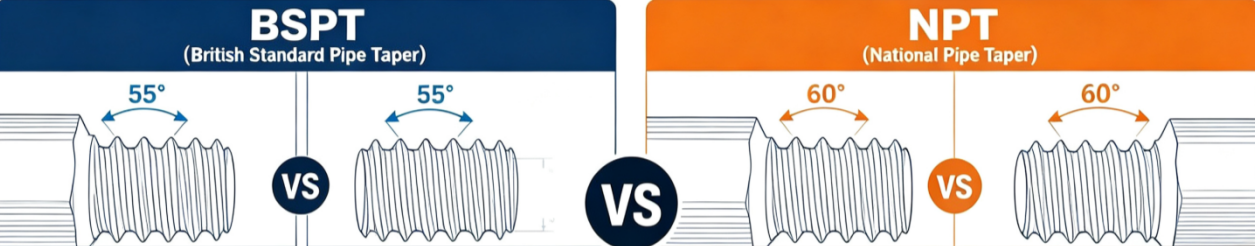

Plumbers often fall into the trap of thinking all tapered pipe threads are created equal. But try threading an NPT fitting (60° flank angle) into a BSPT port (55° angle), and your pipe wrench will lock up after just two or three turns. You might think it’s sealed tight, but the mismatched thread teeth have simply jammed—leaving hidden gaps that blow out as soon as the line is pressurized

Because the pitch (threads per inch) differs on several key sizes—such as 1/2" and 3/4" pipes—the male end locks up before making a full seating depth. Under hydrostatic pressure, joint vibration or thermal expansion will cause thread sealant failure and fluid discharge.

How to Identify BSPT vs. NPT Threads on Malleable Iron Fittings?

• Visual Inspection: Look for casting marks on the body. Jianzhi fittings clearly stamp standard indicators on outer ribs or packaging.

• Thread Gauge Verification: Use a pitch gauge; BSPT 1/2" fittings feature 14 threads per inch (TPI) with a 55° profile, while NPT 1/2" fittings feature 14 TPI with a 60° profile.

• Crest Profile: BSPT crests are noticeably rounded, whereas NPT thread crests are truncated and flat.

3.Jianzhi Manufacturing Advantage: Dual-Standard Thread Precision & Quality Assurance

With 44 years of industrial experience, the Jianzhi brand is recognized globally for producing heavy-duty malleable iron pipe fittings with exceptionally low defect rates.

To guarantee zero-leak execution across both NPT and BSPT orders:

Precision Threading: We utilize automated multi-axis CNC machines to cut clean, burr-free threads with tight pitch tolerances.

100% Air Testing: Every single Jianzhi fitting undergoes 100% pneumatic underwater bubble testing prior to galvanizing to eliminate micro-porosity.

Heavy Duty Wall Thickness: Our castings maintain generous wall thickness exceeding standard ISO/BS requirements, absorbing excessive wrench torque during installation without splitting.

4.Global Project Compliance: Supplying ISO, BS, and ANSI Standard Piping Markets

Managing multi-national supply chains requires a manufacturing partner who understands regional compliance:

• Hot-Dip Galvanizing: Jianzhi galvanized fittings feature high-purity zinc coatings for superior rust resistance in humid HVAC and fire protection loops.

• Flexible Inventory Mix: Stocking distributors can order mixed containers containing BSPT elbow and tee fittings alongside NPT unions and caps to serve diverse client portfolios.

• Full Certification Backing: All shipments include Material Test Reports (MTRs), ISO 9001 compliance, and factory inspection certificates.

5.Partner with Jianzhi for Leak-Free Threaded Piping Systems

Eliminate thread mismatch hazards and protect your engineering reputation with factory-certified, precision-machined malleable iron fittings from Jianzhi.

Secure Your Dual-Standard Piping Inventory & Request Factory Quotations

For EPC Contractors & Mechanical Engineers: Need dimensional technical drawings, thread verification certificates, or BS EN 10242 submittal sheets? Send us your project bill of materials (BOM), and our technical team will respond within 24 hours.

For B2B Wholesalers & Regional Importers: Partner directly with a 44-year source manufacturer. Contact our export sales team today to request our 2026 Wholesale BSPT & NPT Container Price Sheets.
