Black Iron Pipe Fittings Dimensions

Dec. 24, 2022

Table of contents

About black malleable pipe fittings

Black pipe fittings (black malleable iron fittings) are used to make connections to black iron pipe. Black iron pipe is used to transport natural and propane gas in residential applications. Black iron pipe is also most often use in fire sprinkler systems due to its high heat resistance and for water supply lines due to its resistance to water damage. Black fittings derive their name from the black oxide scale covering the surface.

Black malleable pipe fittings are different from galvanized or painted malleable pipe fittings. The surface of black malleable pipe fittings has not undergone any anti-rust treatment, so it presents the original black color of black malleable cast iron. When it comes to the size of black malleable pipe fittings, there are several concepts that you need to understand in advance:

  1. Product code: The product code of malleable pipe fittings not only has different codes for products of different shapes, but also has unique product codes for different sizes of products of the same shape. This unique product code is convenient for each code to correspond to a unique product under strict specifications.

  2. NPS and DN: It is common to identify pipes by inches using NPS or “Nominal Pipe Size“. NPS is often incorrectly called National Pipe Size, due to confusion with national pipe thread (NPT). The metric equivalent is called DN or “diametre nominel“.

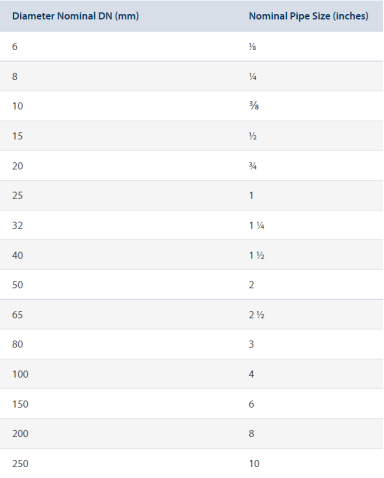

    NPS and DN

  3. Weight. Divided into black product weight and galvanized weight. Obviously, the weight of malleable pipe fittings after galvanizing must be heavier than that of non-galvanized black pipe fittings. Of course, corresponding to different types of pipe fittings and sizes, there are different standards for the weight of pipe fittings.

  4. Package. This refers to how many pipe fittings of the same specification can be placed in a standard packing box. Of course, this is not definitive, and each company has different standards.

90degree elbow Dimensions

90degree elbow

90degree elbow Dimensions




CodeSizeAUnit WeightPacking
BlackGalv.Carton
NPSDNmmggPcs/ctn
JZGAL90011/8"61830.3831600
JZGAL90021/4"82042.1443600
JZGAL90033/8"102460.7662500
JZGAL90041/2"152796.0498400
JZGAL90053/4"2032139.16142210
JZGAL90061"2537213.64218120
JZGAL90071-1/4"3244.5340.0634764
JZGAL90081-1/2"4048.5423.3643248
JZGAL90092"5057674.2468832
JZGAL90102-1/2"6568.51068.2109016
JZGAL90113"8077.51489.6152010
JZGAL90124"10096.52700.8827566
JZGAL90136"1501296089.7262142

4-ways cross dimensions

 4-ways cross

4-ways cross

CodeSizeAUnit WeightPacking
BlackGalv.Carton
NPSDNmmggPcs/ctn
JZGAL180011/2"1527167170180
JZGAL180023/4"203224625196
JZGAL180031"253738038872
JZGAL180041-1/4"3244.557658836
JZGAL180051-1/2"4048.571272730
JZGAL180062"50571147117012
JZGAL180072-1/2"6568.51740177610
JZGAL180083"8077.5247825296
JZGAL180094"10096.5421142972

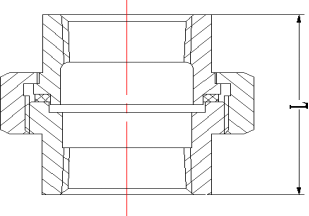

Union, Flat Seat dimensions

Union Flat Seat dimensions

Union Flat Seat dimensions

CodeSizeLUnit WeightPacking
BlackGalv.Carton
NPSDNmmggPcs/ctn
JZGAL330013/8"1039156.8160280
JZGAL330021/2"1546200.9205180
JZGAL330033/4"2050265.58271120
JZGAL330041"255639240088
JZGAL330051-1/4"3263583.159556
JZGAL330061-1/2"4068733.0474836
JZGAL330072"50761056.44107828
JZGAL330082-1/2"65831675.8171012
JZGAL330093"80932175.6222010
JZGAL330104"100113.5372438006



Union, Taper Seat, M&F dimensions

Union Taper Seat, M&F dimensions

Union Taper Seat, M&F dimensions

CodeSizeLUnit WeightPacking
BlackGalv.Carton
NPSDNmmggPcs/ctn
JZGAL341011/2"1565196200140
JZGAL341023/4"2071.5289.1295120
JZGAL341031"257939240080
JZGAL341041-1/4"3290635.0464840
JZGAL341051-1/2"4096801.6481832
JZGAL341062"501071149.54117320



The above lists the Dimensions information of some malleable pipe fittings for you, hoping to bring you new knowledge.

• Meets or exceeds all applicable ASTM and ANSI standards
• Stocked from 1/8" through 6" diameters
• 100% pressure tested before leaving the factory
• UL and FM approved

Of course, this is only a small part of it. Jianzhi Group also produces more different types of malleable pipe fittings. You can click the link below to enter the official YOUTUBE channel of Jianzhi Group for more product information. In addition, welcome to consult us directly.
