What are 90 degree elbows?

Feb. 22, 2024

In piping systems, connectors are an important part of ensuring fluid transmission and smooth operation of piping systems. And 90-degree elbows, as a key connector, play a vital role in piping projects. This article will delve into the importance of 90-degree elbows, the different types, and their advantages.

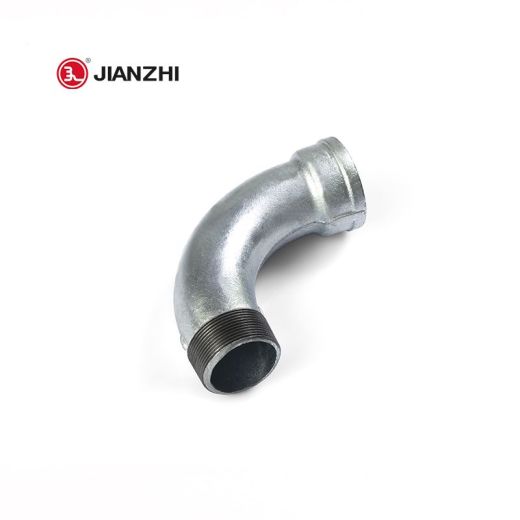

90 degree.jpg

Importance of 90-degree Elbow

90-degree elbows are one of the common connecting elements used in piping systems to change the flow direction of the pipe. Their design allows them to make 90-degree bends, providing flexibility and versatility to the piping system. This connecting element is widely used in many industries, including petroleum, chemical, and water treatment. Their importance is reflected in the following areas:

a. Fluid Control: 90-degree elbows can effectively change the direction of fluid flow and allow it to pass smoothly through the piping system. This is essential to ensure the normal flow of fluids, especially in complex piping networks.

b. Space Adaptability: Due to its 90-degree design, this Elbow can change the direction of fluid in a limited space. This is important for laying out piping systems in narrow engineering environments.

Different types of 90-degree elbows

Several types of 90-degree elbows are available in the market, each suitable for different applications and environments. The following are some of the common types:

a. Welded 90-degree Elbow: This type of Elbow is connected to the pipe by welding, providing a strong connection and is suitable for high-pressure and high-temperature operating environments.

b. Threaded 90-degree elbows: These elbows are threaded for easy installation and removal. They are typically used in low-pressure systems and where frequent replacement is required.

c. Elbow bending radius: According to the specific piping layout and needs, 90-degree elbows are also divided into long-radius elbows and short-radius elbows. Choosing the proper type of Elbow is critical to maximizing the efficiency of your piping system.

Advantages of 90-degree elbows

a. Fluid Efficiency: The proper use of 90-degree elbows reduces the fluid's resistance and increases the piping system's efficiency. This is essential to ensure that fluid can be transferred quickly and efficiently.

b. Space saving: The design of the 90-degree Elbow saves Space in the piping system by allowing changes in flow direction to be made in a limited space. This is particularly important in some narrow engineering environments.

c. Applicable to various materials: 90-degree Elbow for various piping materials, including metals and plastics. This versatility makes them a preferred connector in many industries.

As an indispensable connector in piping systems, the 90-degree Elbow ensures the efficient operation of piping systems through its fluid control, spatial adaptability, and various advantages. The proper selection and use of 90-degree elbows are critical to the success of piping projects, and their wide range of applications proves their irreplaceability in modern industry.If you have any need to purchase related pipe fittings, you can contact us! As a professional manufacturer of high-quality pipe fittings, JIANZHI will not let down your trust!
